P2 Eval Serial Host Add-on Board
Available in stock (278)
P2 Eval Serial Host Add-on Board Overview:

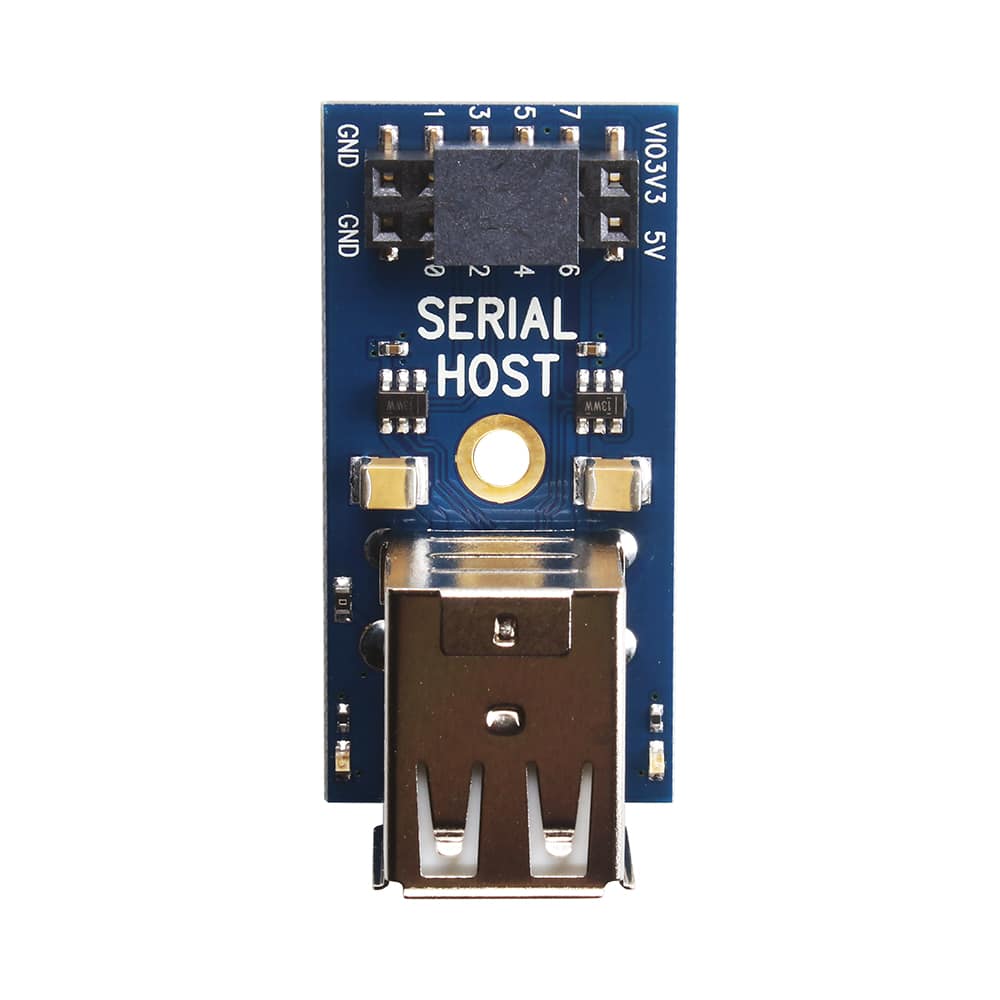

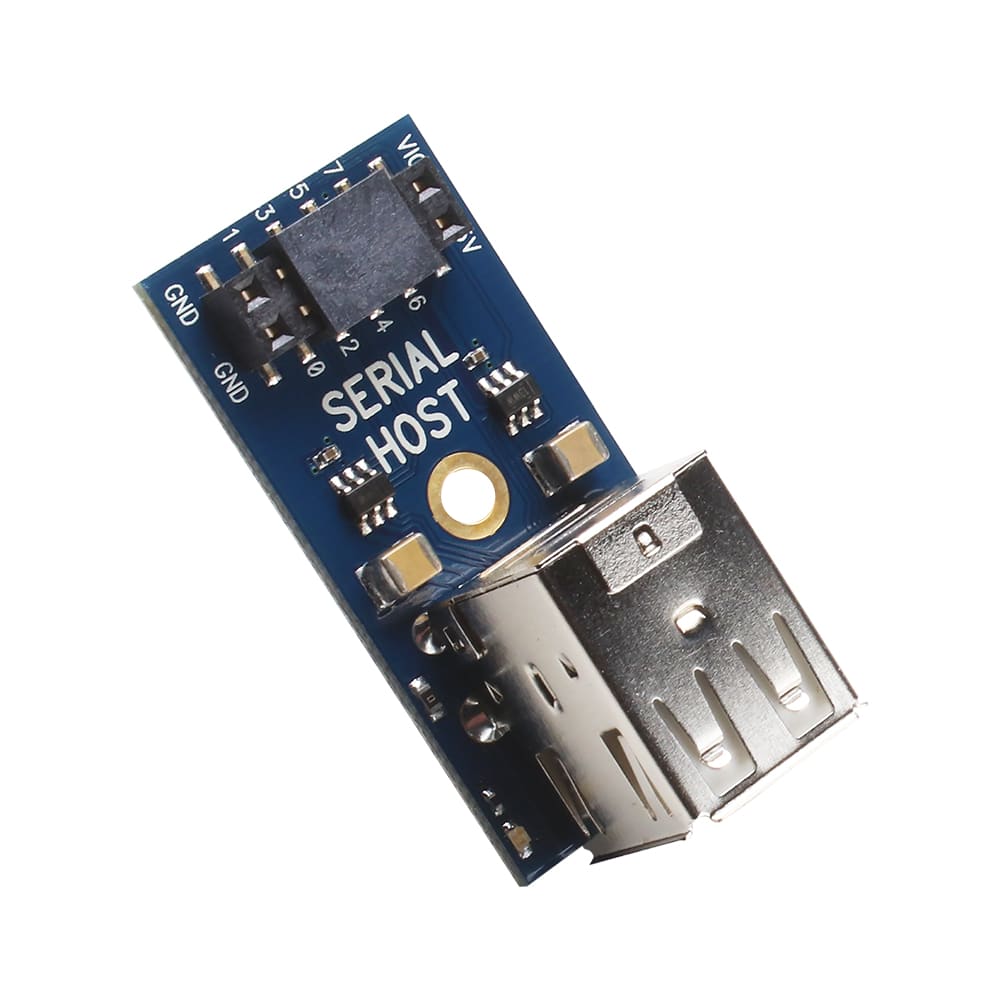

The P2 Eval Serial Host Add-on Board allows two USB-type devices to be connected simultaneously, such as a keyboard and mouse, to your Propeller 2 multicore microcontroller project. This .board has twin USB-type A sockets, each protected with a current-limited load switch that allows up to 500 mA continuous current, subject to overall available system power. Additional protection includes reverse current blocking, short-circuit protection, over temperature protection and VBUS soft start.

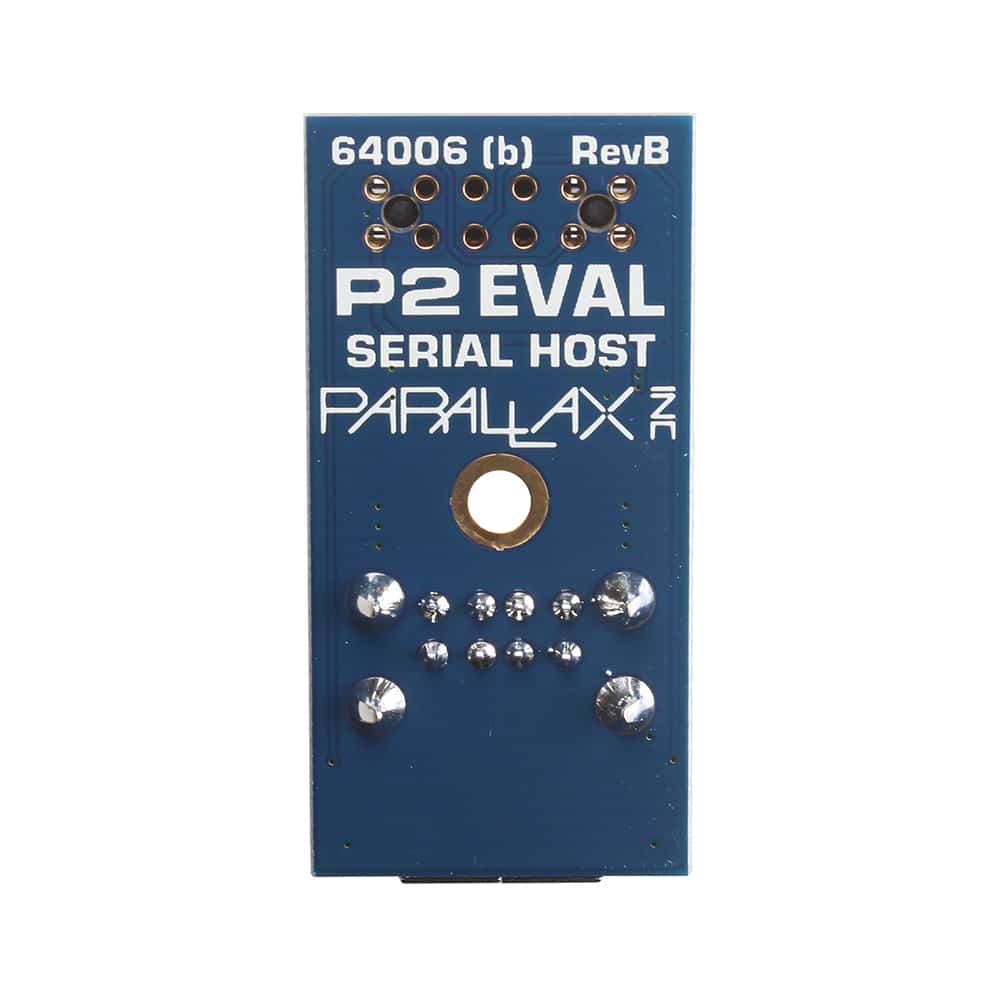

This board features a pass-through socket that stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
P2 Eval Serial Host Add-on Board Features:
- Twin USB A sockets
- Each socket provides up to 500 mA continuous current
- Reverse-current, short-circuit, and over-temperature protection
- VBUS soft start support
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
See the Product Guide download for I/O pin assignments and instructions for supplying 5V to the board that is necessary for operation. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in the USA
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
