P2 Edge Mini Breakout Board
Available in stock (250)
P2 Edge Mini Breakout Board Overview:

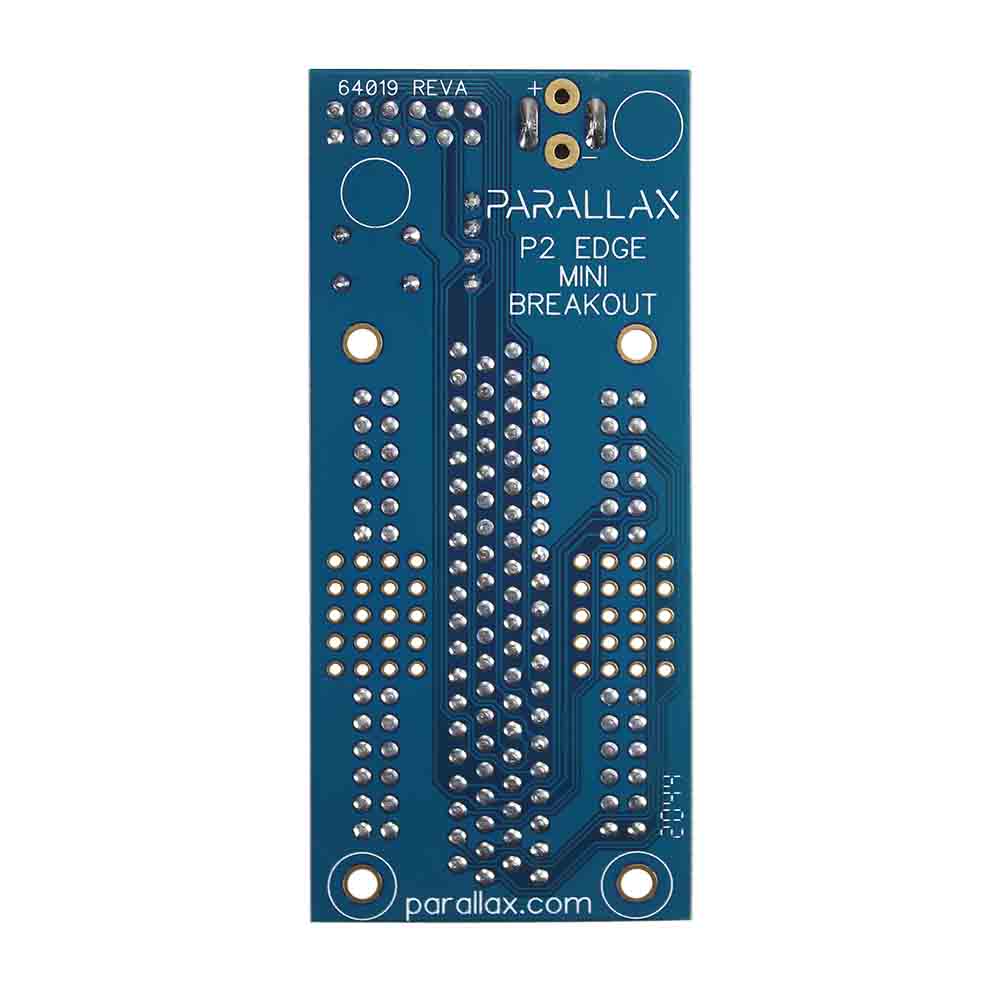

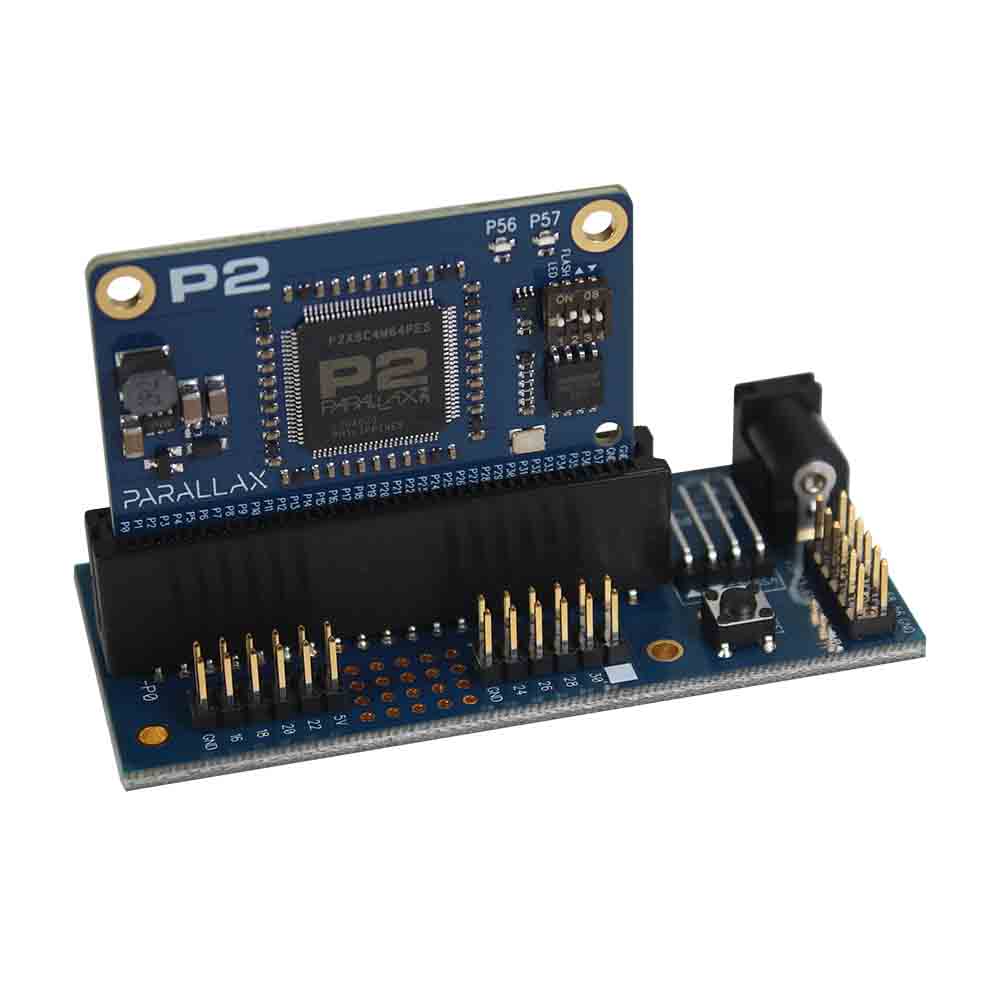

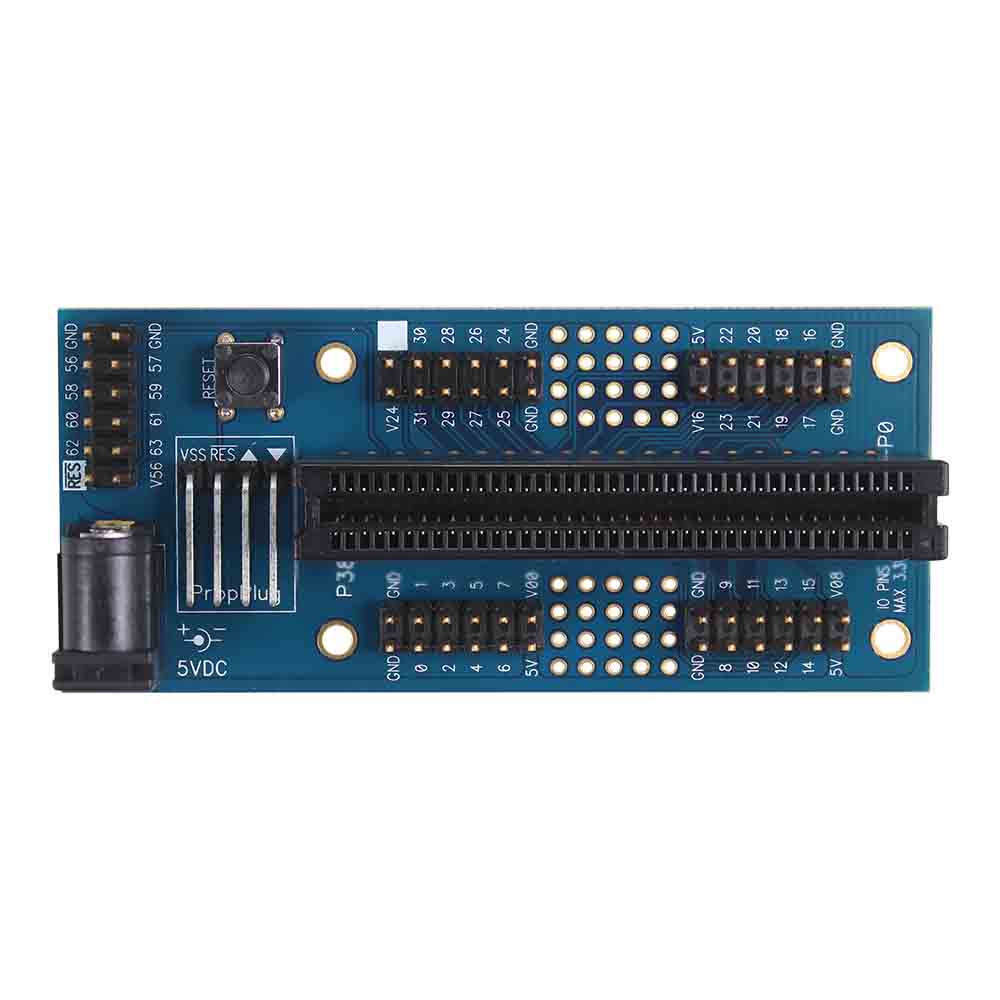

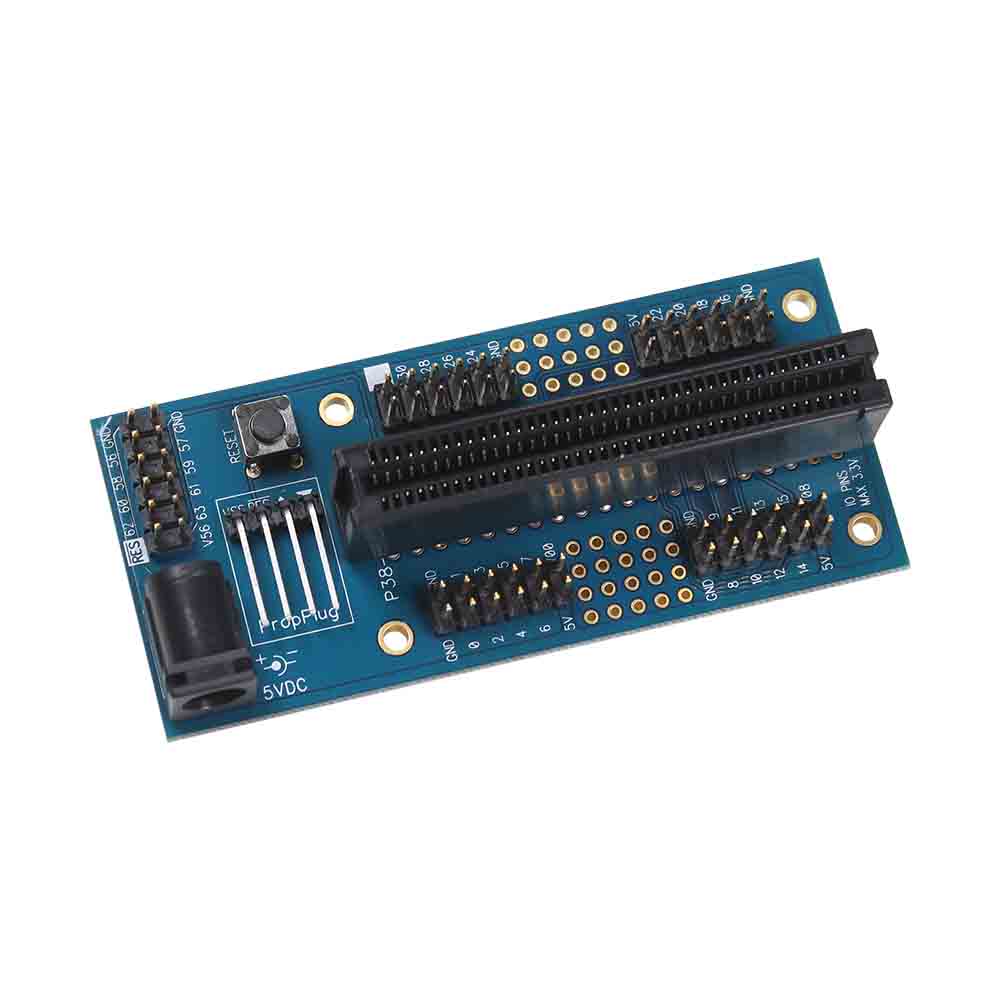

The P2 Edge Mini Breakout Board is a minimalist but fully functional programming system for the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB). It features an 80-pin socket for the P2 Edge, a 2.1mm power jack, a Prop Plug programming port, reset button and four 2x6 headers for use with the Propeller 2 Accessory Set, P2 to Mickro BUS Click Adapter, or WX Adapter. This product ships fully assembled by Parallax.
This product, paired with a P2 Edge Module, provides the best value for a compact Propeller 2 multicore microcontroller programming system.
Features:
- 2.1 mm power jack compatible with USB A to DC 2.1mm Jack Cable (#805-00019) and USB Mains Adapter (#750-00001) for convenient power
- 4-pin Prop Plug (#32201) header eliminates in-system USB circuitry, minimizing project costs
- Four 2x6 sockets for up to four P2 Accessory Set devices (#64006-ES) or two Click Adapters (#64008)
- Accepts P2 WX Adapter Add-on Board (#64007) for wireless P2 programming
- Convenient reset button and mounting holes
Applications:
- Portable Propeller 2 multicore microcontroller development system
- Compact breadboard interface via jumper wires
- Ready-made interface for custom embedded system integration
Note: the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB), Prop Plug programming tool, power supply and accessory adapters not included, sold separately.
P2 Edge Mini Breakout Board Specifications:
- Voltage input requirements: 5 VDC, absolute maximum 5.5 VDC
- Input Current requirements: 100 mA minimum
- VIO Power Supplies: 3.3 V up to 300 mA per 8 I/O pins; requires P2-EC Edge Module
- USB programming: Serial up to 2 MBaud; requires Prop Plug (#32201) and cable
- Wireless programming: requires P2 WX Adapter Add-on (#64007) and Parallax WX ESP8266 WiFi Module - SIP (#32420S)
- Operating temperature: -40 to +185 °F (-40 to +85 °C)
- PCB Dimensions: 3.15 x 1.4 in (80 x 35.5 mm)
- PCBs assembled, tested, and completed in Rocklin, California, USA
Product guide, schematics, and RoHS CE & UKCA Declarations of Conformity are available under the Downloads tab.
