P2 Eval Mini Prototyping Add-on Board
Available in stock (214)
P2 Eval Mini Prototyping Add-on Board Overview:
The Mini Prototyping Add-on Board allows you to quickly solder together a custom peripheral for your Propeller 2 development system with a compatible accessory header.

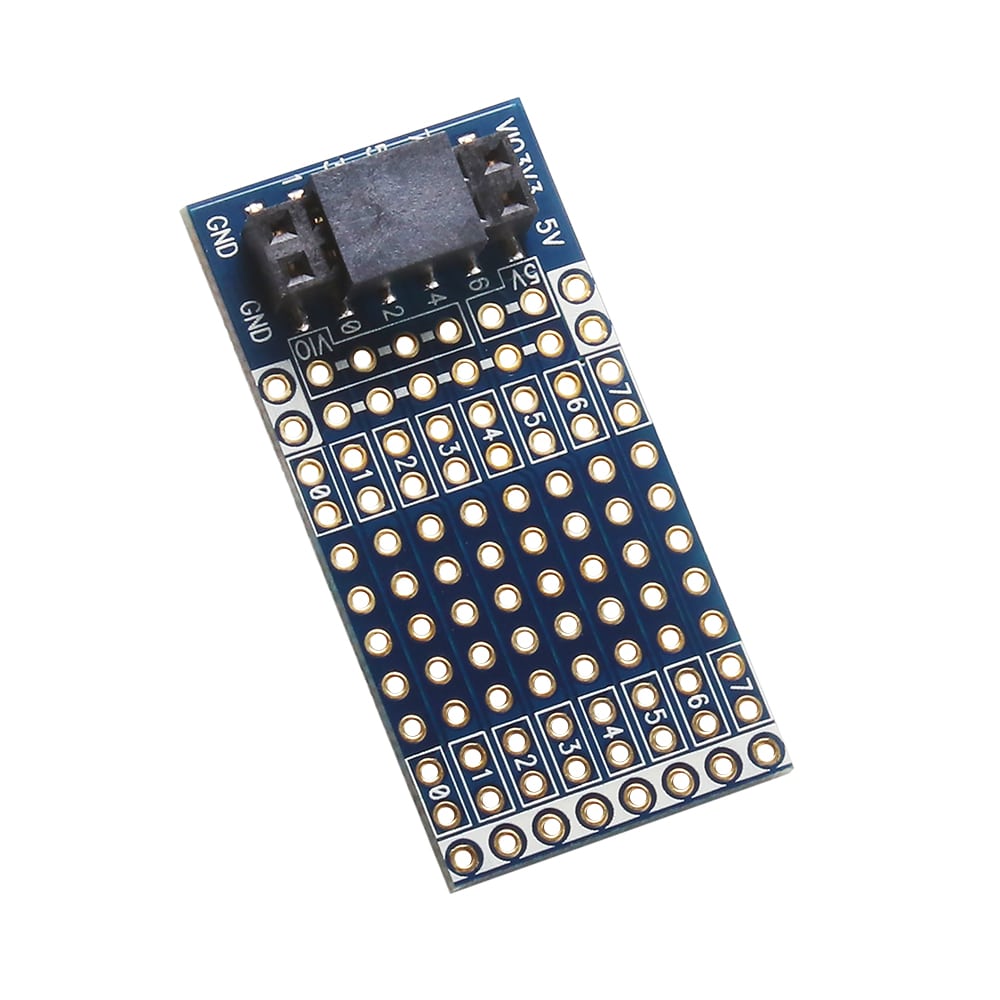

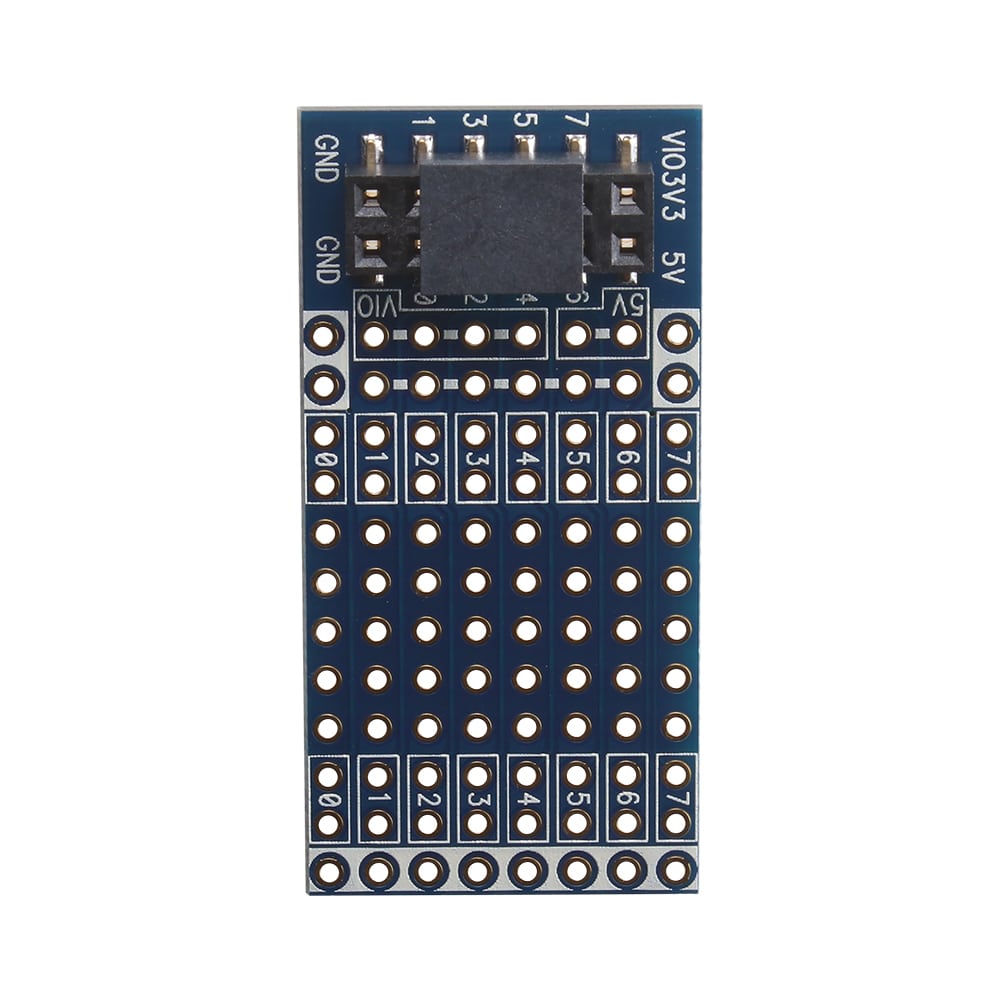

The Mini Prototyping Add-on Board provides an 8x12 grid of plated thru-holes. Ground holes are connected on both sides of the PCB, and marked on the top side by white silk blocks.

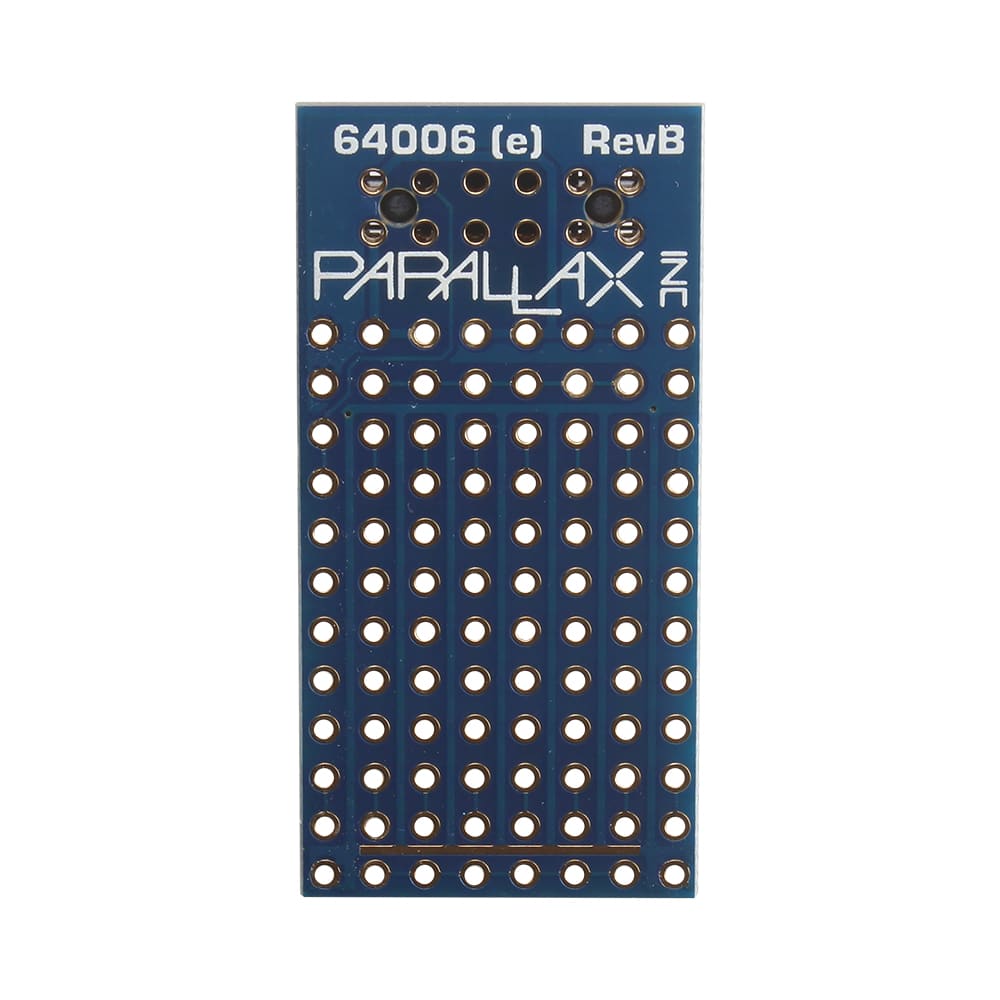

Other holes that are joined are marked on the top side of the PCB with silk dashes or boxes. And they are linked on the bottom of the PCB with copper traces that are isolated clearly to enable easy cutting as required. Holes inside a white box are joined to the signal or power marked. Holes joined by dashes are joined together, but are not joined to any signal.
This board features a pass-through socket that stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
P2 Eval Mini Prototyping Add-on Board Features:
- 8x12 grid of plated thru-holes
- Power and I/O pin header access holes clearly marked
- Silkscreen-marked common ground holes
- Exposed ground strip on PCB back for easy bridging to ground
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
- PCBs assembled, tested, and completed in the USA
See the Product Guide download for explanatory diagram. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
