P2 Eval Goertzel Add-on Board Overview:

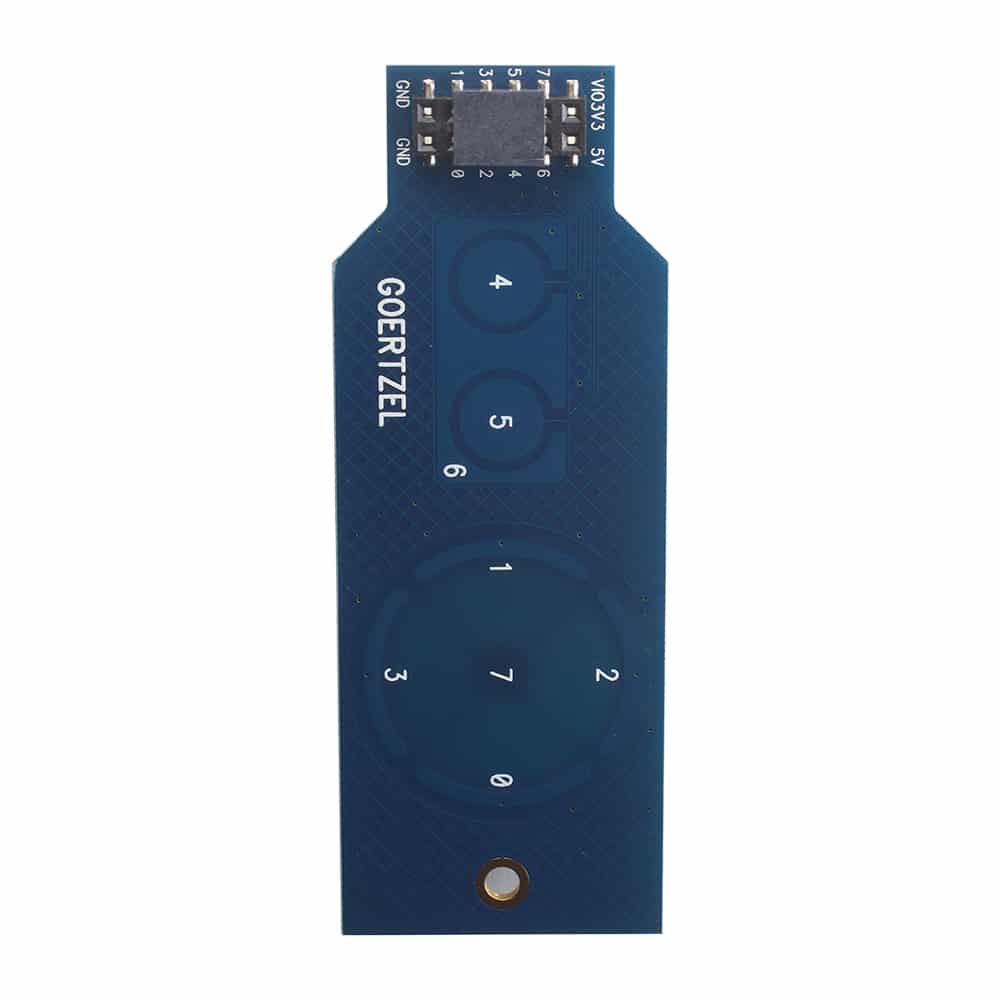

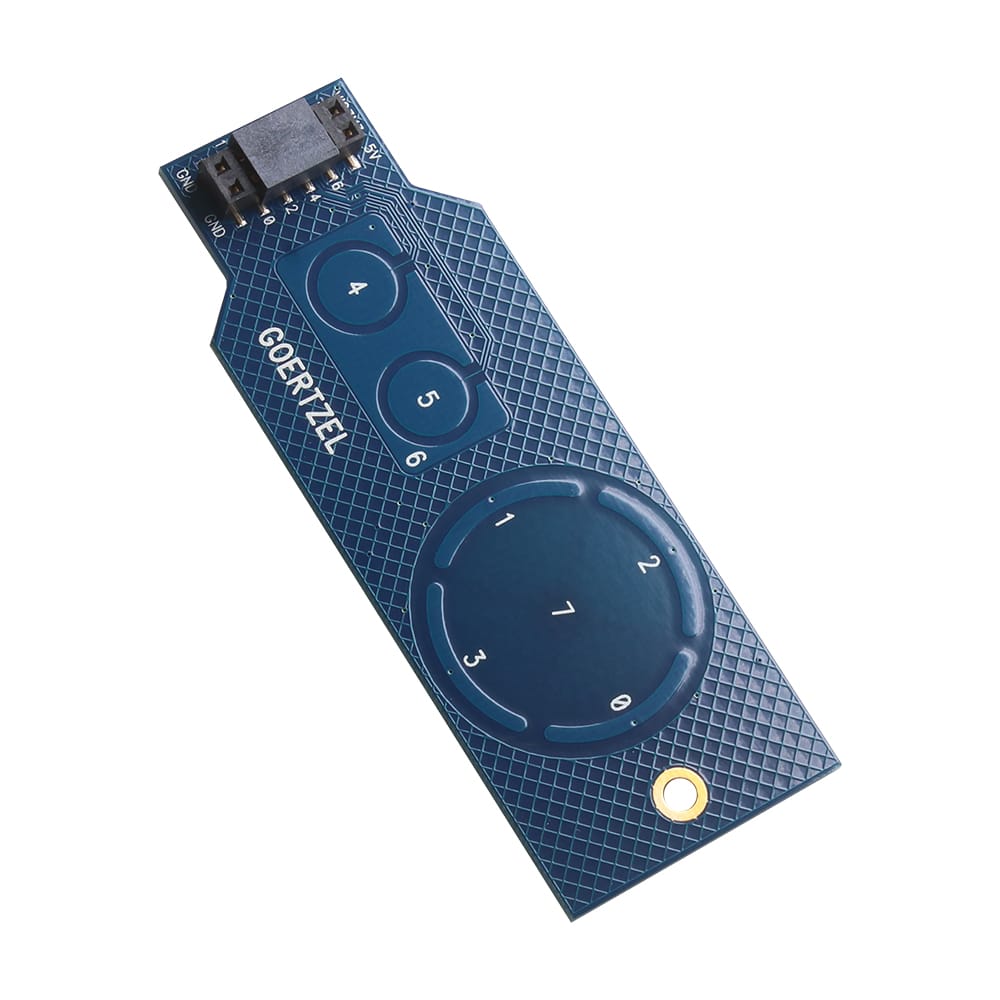

The P2 Eval Goertzel Add-on Board (Rev B) is a touch switch and non-contact position-sensing human input device for your Propeller 2 multicore microcontroller projects. Pads 0,1,2,3 and 7 are designed as a set of non-contact Goertzel input pads, while pads 4, 5 and 6 are typically used as on/off (switch style) inputs.
This board features a pass-through socket that stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
P2 Eval Goertzel Add-on Board Features:
- Circular Goertzel non-contact pad array (four directions plus center)
- Three on-off touch switch pads
- PCB Dimensions: 3.2 x 1.2 in (8.13 x 3.01 in)
See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in the USA.
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
