P2 Eval Digital Video Out Add-on Board
Out of stock
No longer available individually. You can purchase the P2-ES Eval Board Accessory Set which includes this board.
P2 Eval Digital Video Out Add-on Board Overview:

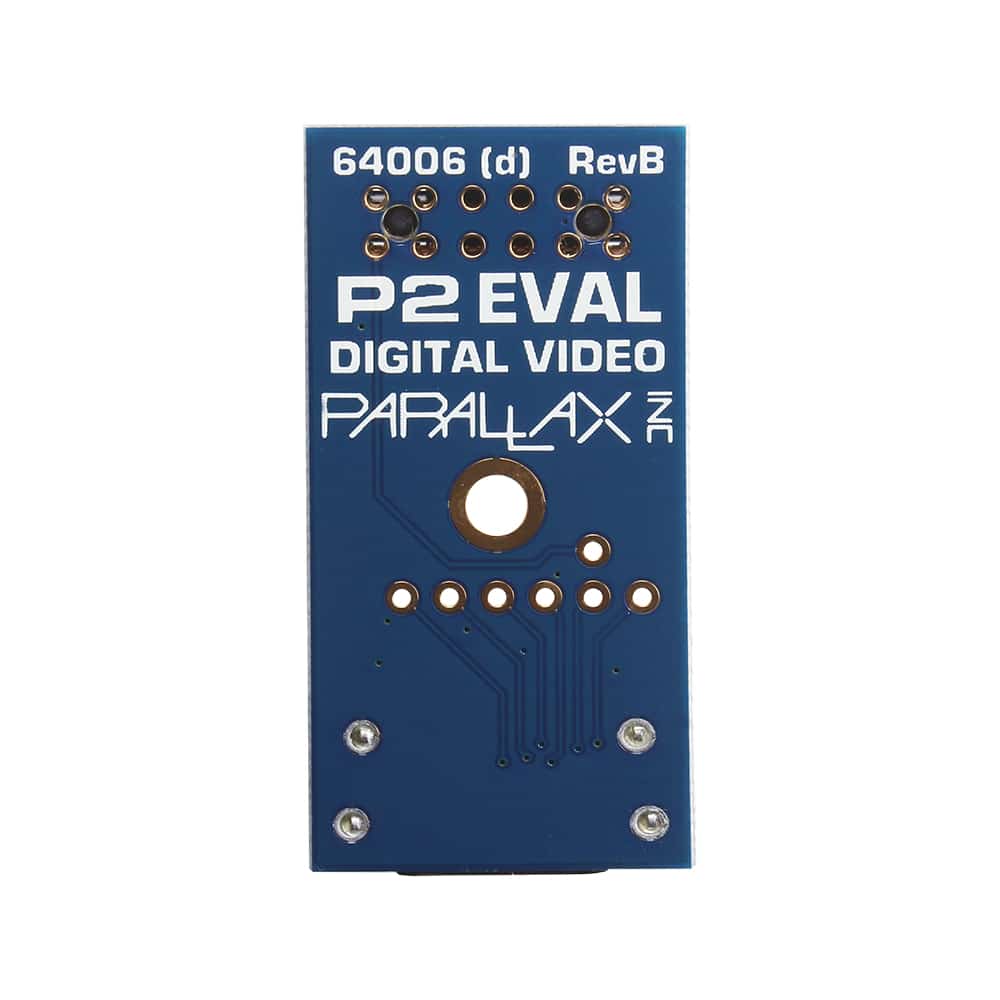

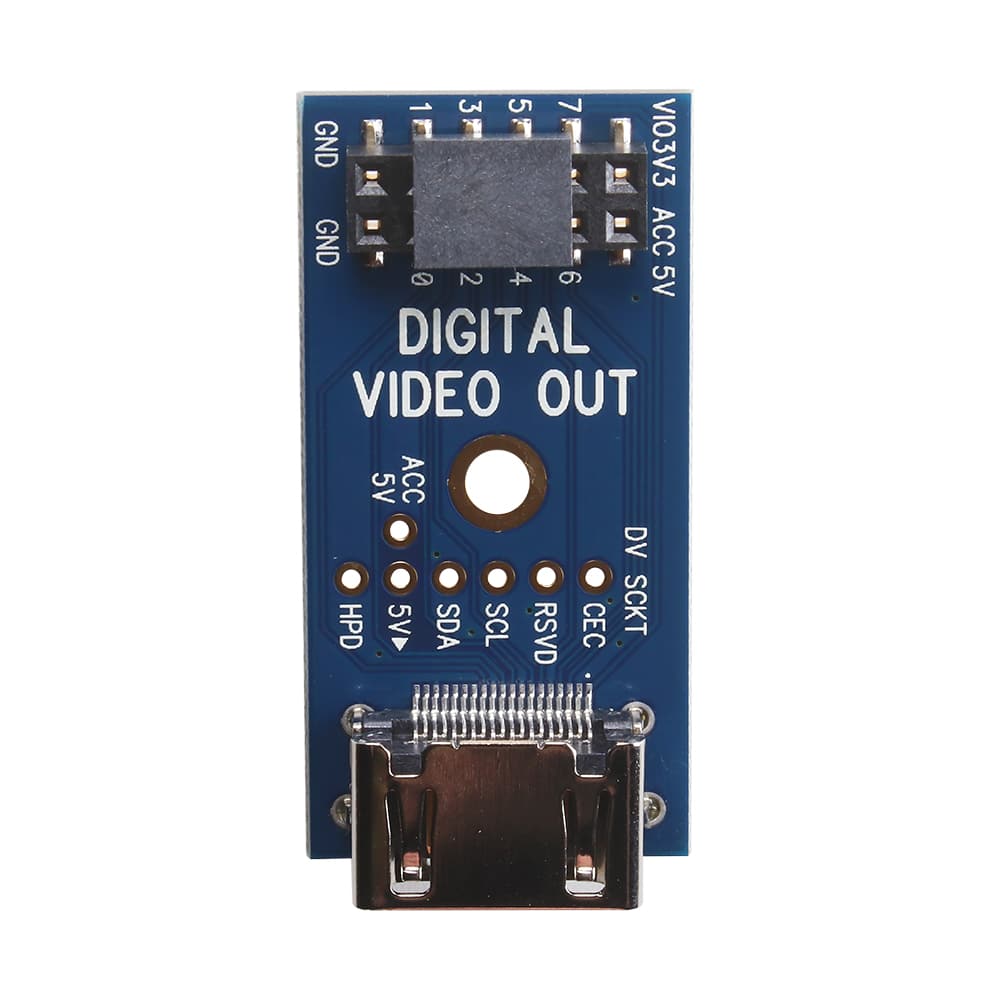

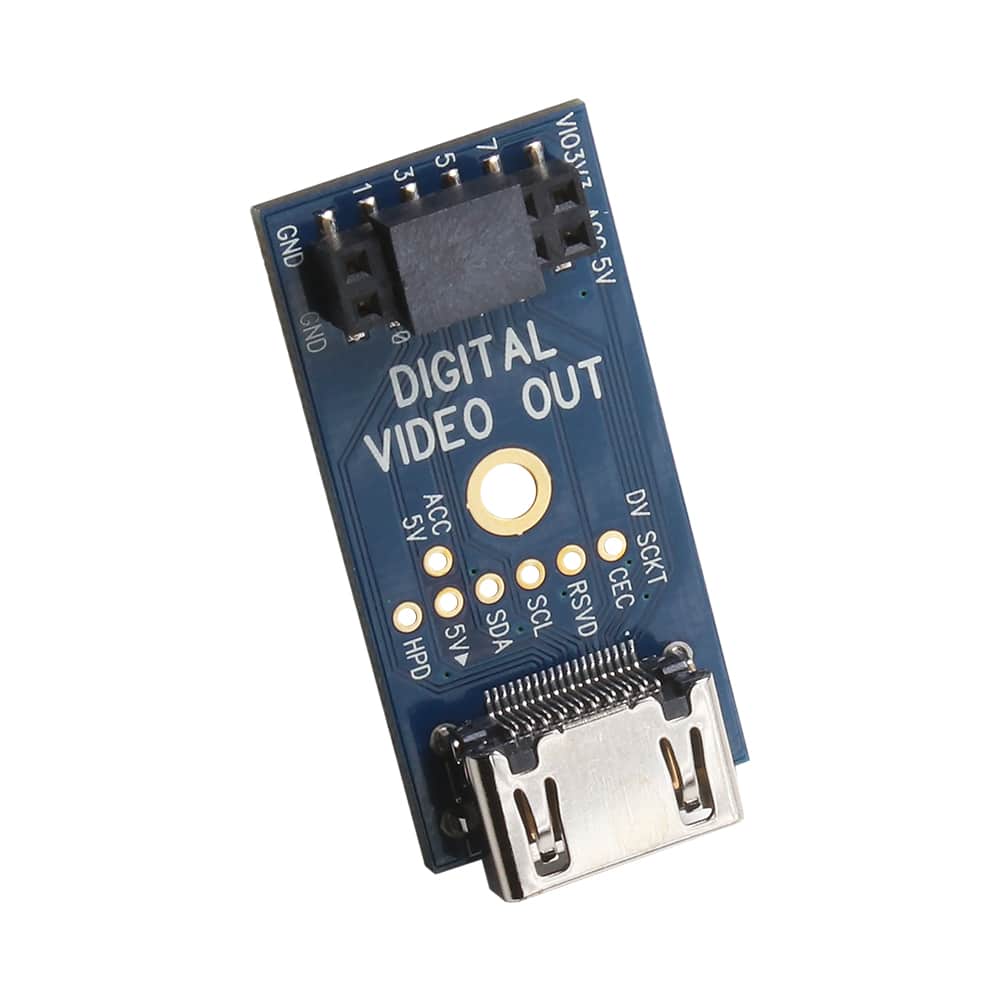

The P2 Eval Digital Video Out Add-on Board provides an HDMI-type connector which can be used for experimenting with various video standards in your Propeller 2 multicore microcontroller projects. This board features a pass-through socket that stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed. Unused signal pins from the video connector are labelled on the PCB next to an unpopulated 0.1” pitch row of 6 pads: CEC, RSVD, SCL, SDA, 5V▶, HPD. Beside the 5V▶ output pad is another pad labelled “ACC 5V”. That is the 5V supply from the accessory socket. Some video monitors require a 5V signal connecting to the 5V▶ pin, so these two pads with 0.1” spacing make that convenient. For example, a 0.1” pitch header could be soldered here, and a shunt plug used when 5V is required to the monitor.
P2 Eval Digital Video Out Add-on Board Features:
- HDMI connector
- Direct connection to CLK-, CLK+, D0-, D0+, D1-, D1+, D2-, D2+
- Plated thru-holes for accessing 6 unused video connector pins
- Plated thru-hole for accessing the 5V supply from the accessory socket
- Center mounting hole
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
See the Product Guide download for I/O pin assignments. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab. PCBs assembled, tested, and completed in the USA
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
