P2 Eval Control Add-on Board
Available in stock (308)
P2 Eval Control Add-on Board Overview:

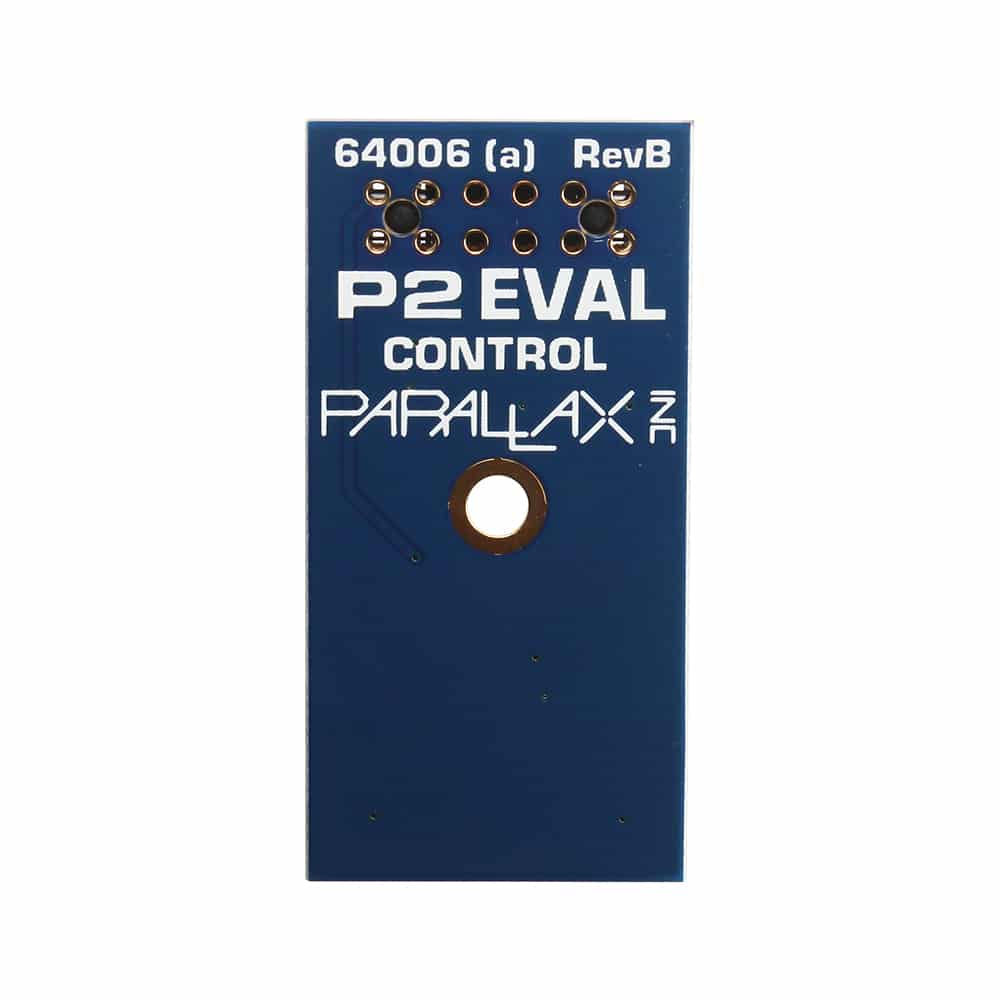

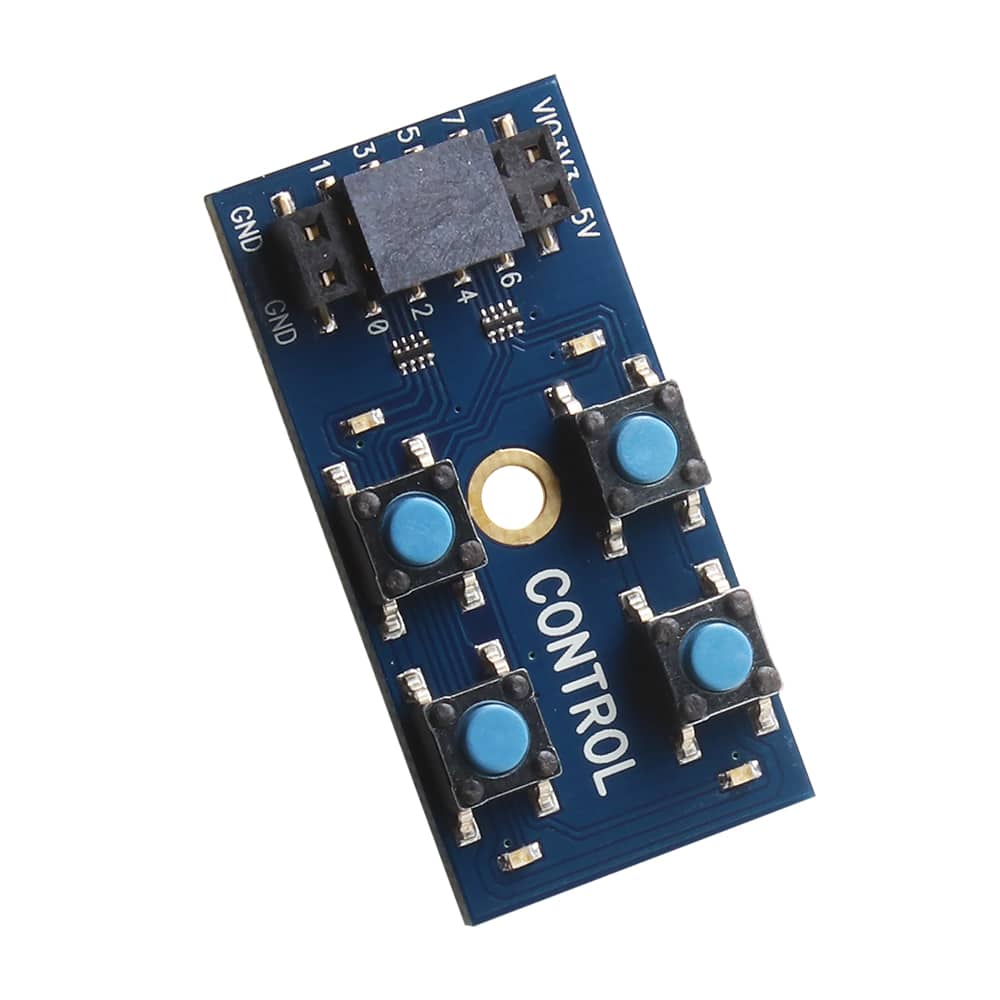

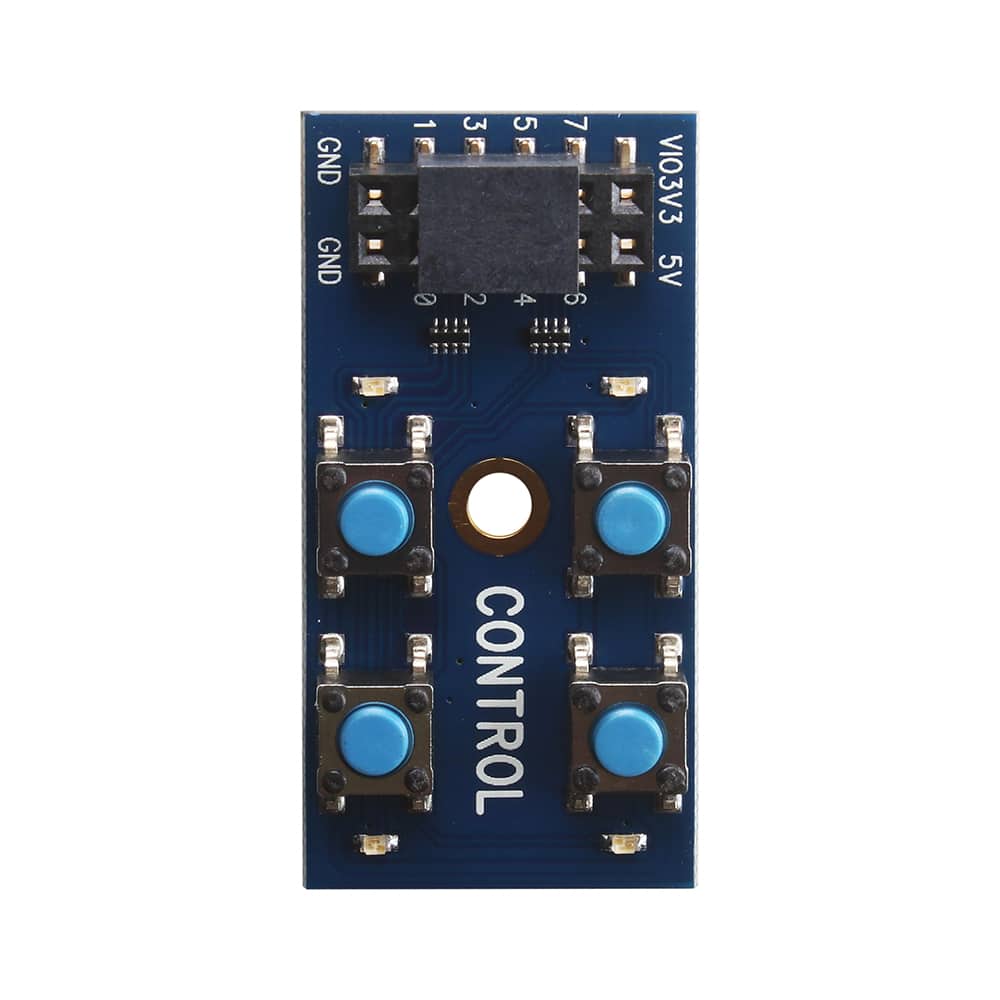

The P2 Eval Control Add-on Board board's four push-buttons and four blue LEDs add convenient input and output for your Propeller 2 projects, speeding development. The pushbuttons allow simple digital input control of other circuits or processes, while the LEDs can provide visual indication of system states. Each active-high push-button has a 470 Ω series resistor to allow the I/O pin to be driven low while the button is asserted.
This board features a pass-through socket that stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
P2 Eval Control Add-on Board Features:
- Four active-high pushbuttons with 470 ohm series resistor
- Four active-high LEDs with 470 ohm series resistor
- Independent I/O control of each LED
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
See the Product Guide download for I/O pin descriptions and detailed dimensions. Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in the USA
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
