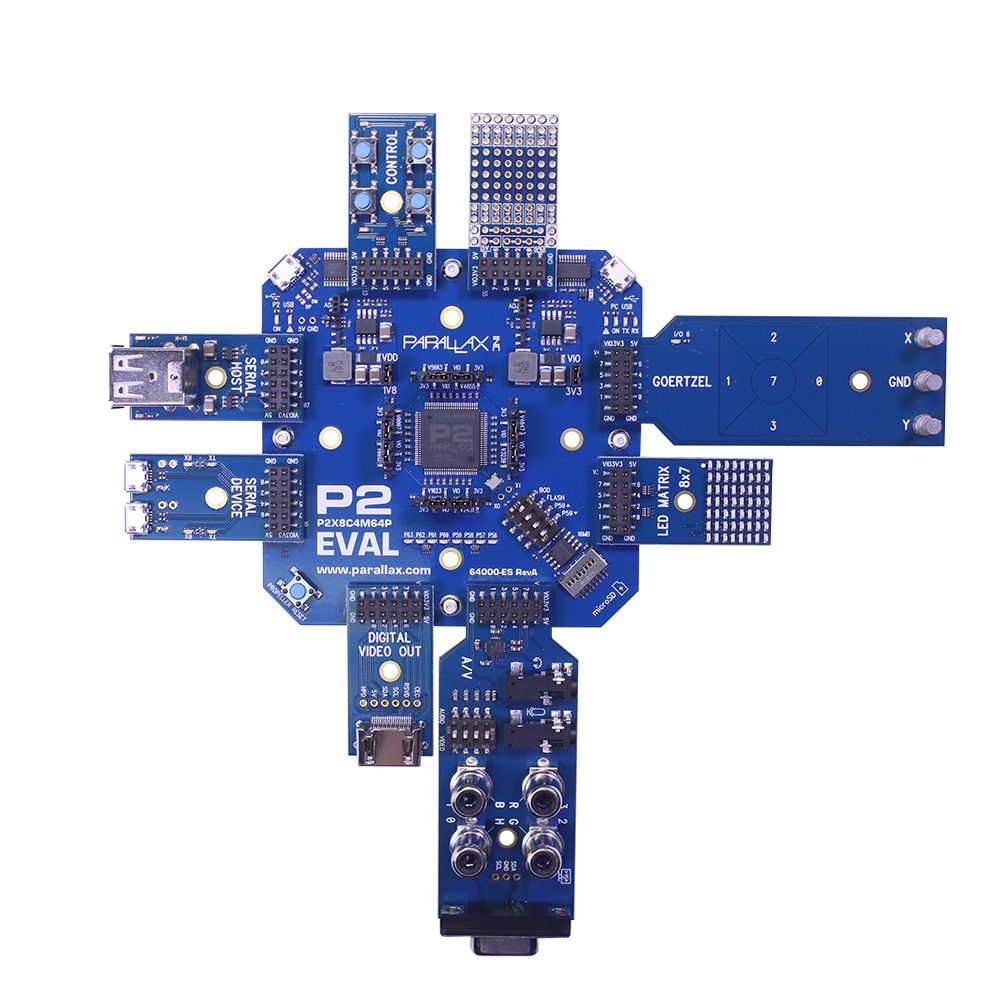

The P2-ES Eval Board Accessory Set is designed for use with Propeller 2 development board 2x6 accessory headers. Each board's 2x6 pass-through sockets stack on top of accessory headers on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
Multiple accessory boards may be connected at the same time, making it very convenient to fully explore the capabilities of the Propeller 2 multicore microcontroller. These boards are available individually, or in this Accessory Set with one of each.

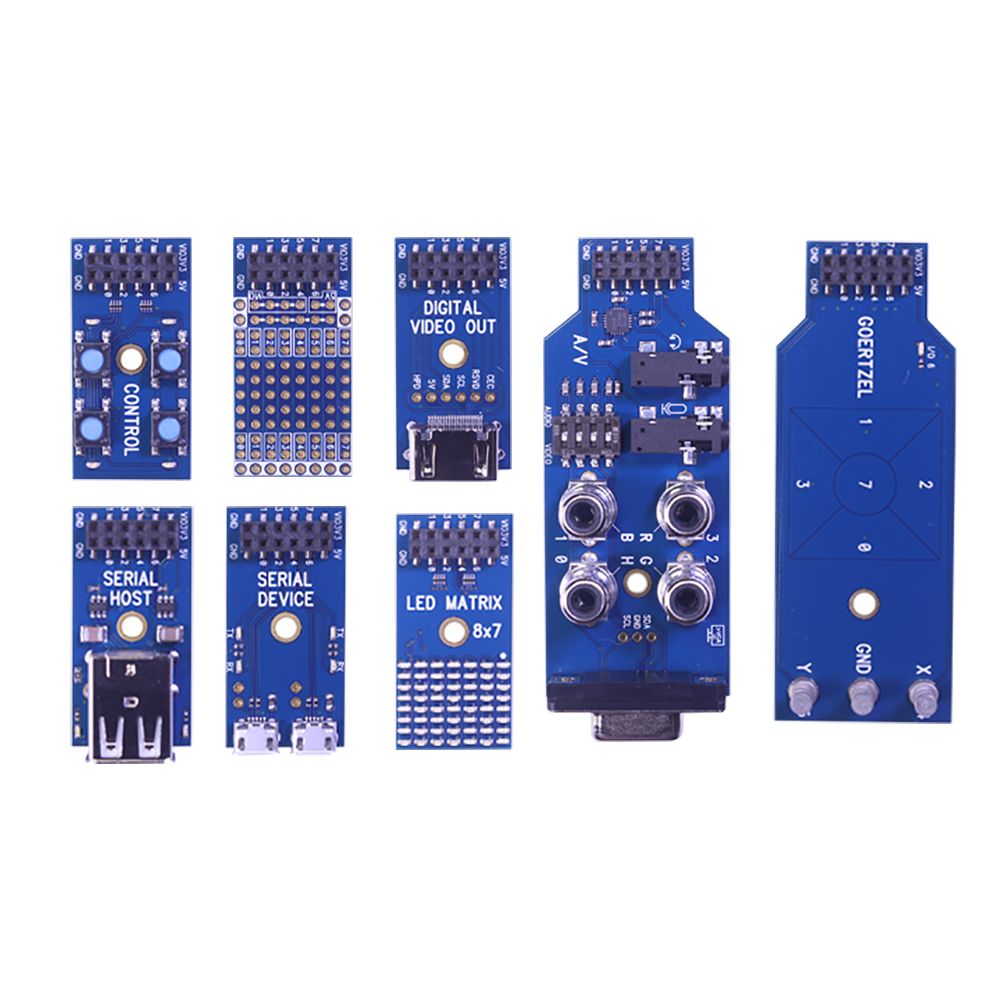

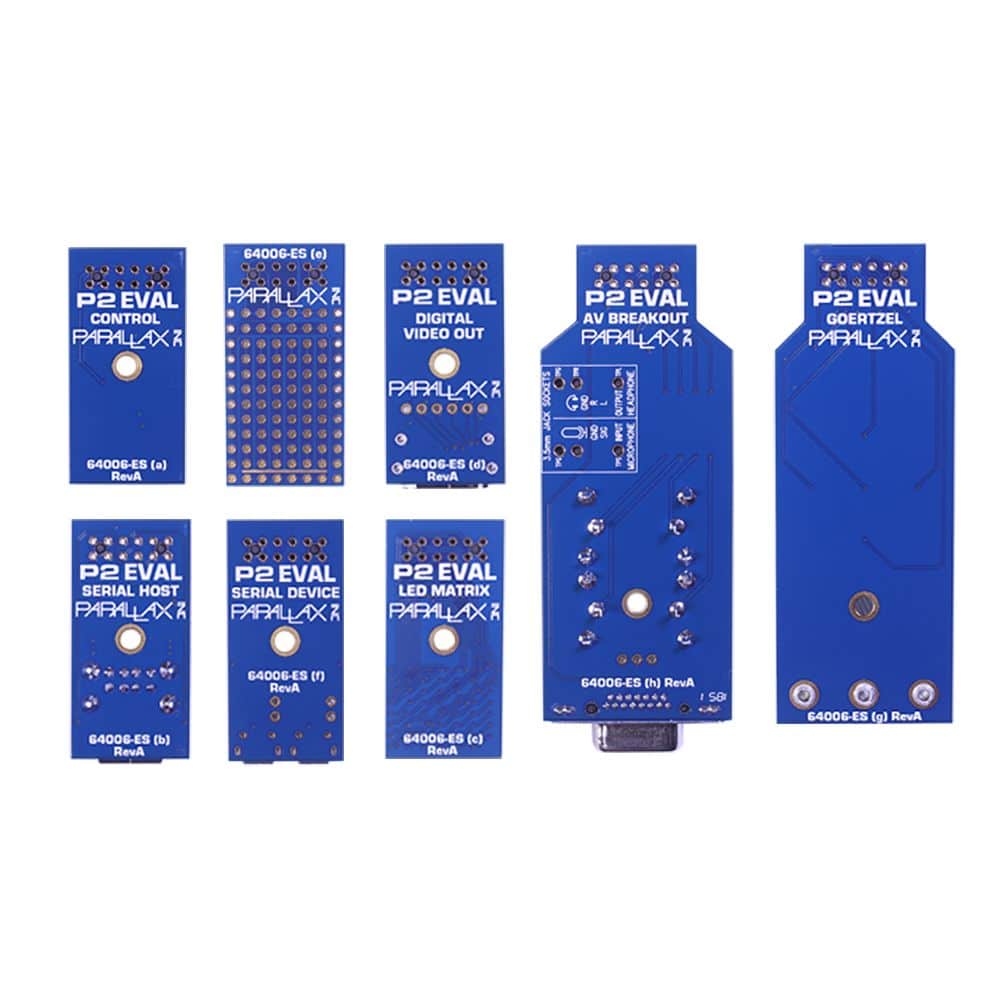

Accessory Boards Included:
- (#64006A) Control — four pushbuttons and four LEDs
- (#64006B) Serial Host — twin USB type A sockets
- (#64006C) LED Matrix — a 8x7 grid of green LEDs for Charlieplexing
- (#64006D) Digital Video Out — HDMI-type connector
- (#64006E) Mini Prototyping — 8x12 grid of plated thru-holes with labled power and I/O
- (#64006F) Serial Device — two microUSB type sockets with individual activity LEDs
- (#64006G) Goertzel — a set of non-contact position sensing pads
- (#64006H) A/V Breakout — 3.5mm Audio in/out, four RCA audio/video, VGA
Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in the USA
Resource Links
- Parallax Propeller 2 Documentation (Rev B Silicon) (draft, Google doc)
- Parallax Propeller 2 Instructions (draft, Google Sheets)
- Propeller 2 Repository for community example code contributions (GitHub)
- P2-ES Eval Board support thread (Parallax Forum)
