P2 Edge Module with 32MB RAM

P2 Edge Module with 32MB RAM Overview

The P2 Edge Module with 32MB RAM is a simple way to get started with the Propeller 2 multicore microcontroller. In addition to speeding development, this module provides an optimal P2 building block for system integrators and designers to include in their products.

The Propeller 2 P2X8C4M64P is an 8-core 32 bit CPU with 32-bit timers, 64-bit CORDIC math solver, and custom analog pad rings with Smart-pin functionality at all 64 I/O pins. Each Smart I/O pin is capable of many autonomous analog and digital functions, including ADC, DAC, PWM, USB, SERIAL, Waveform generation, SMPS, Comparator, SCHMITT and LOGIC modes.

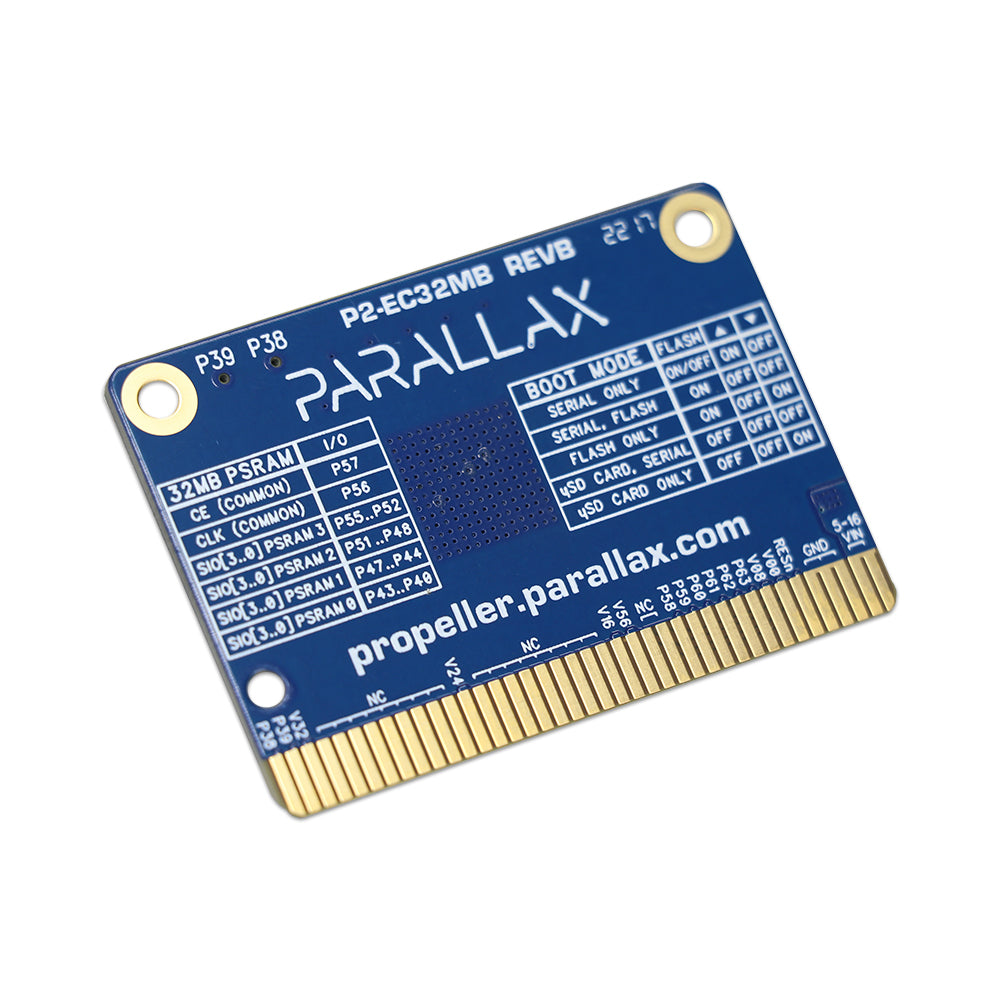

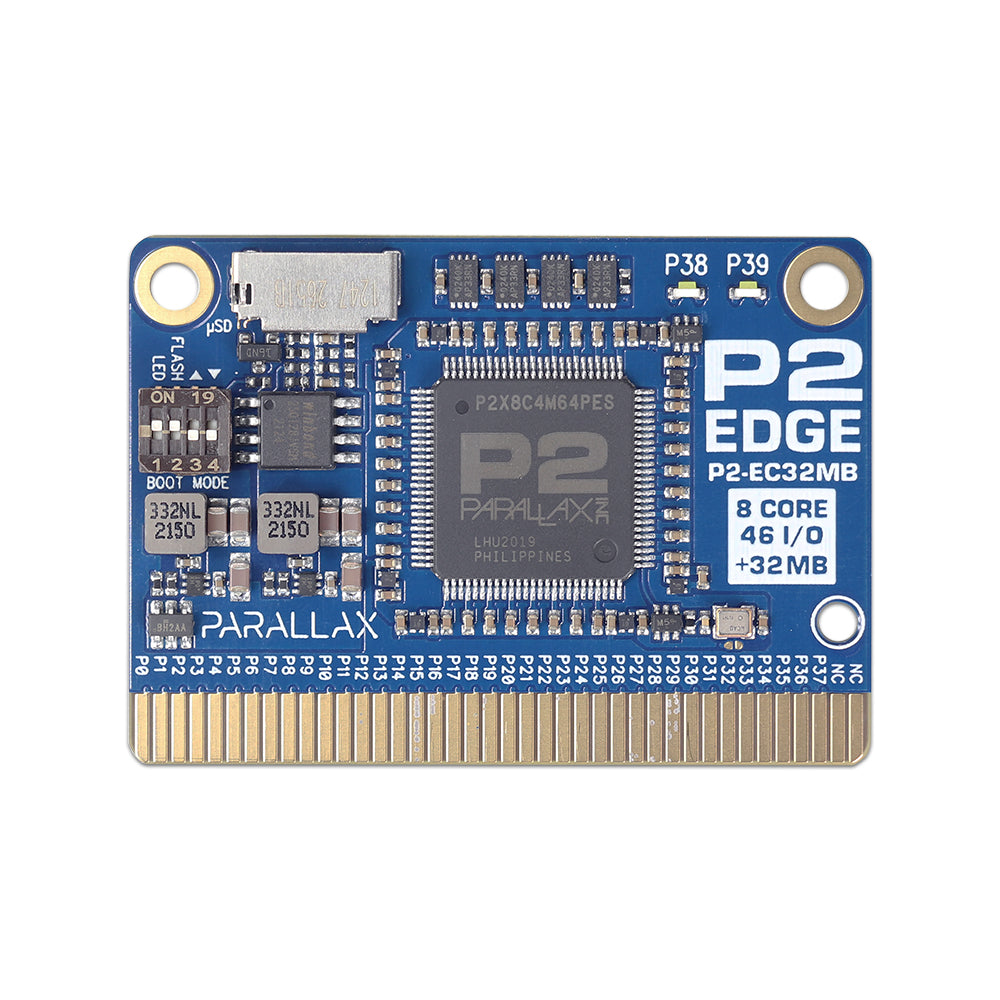

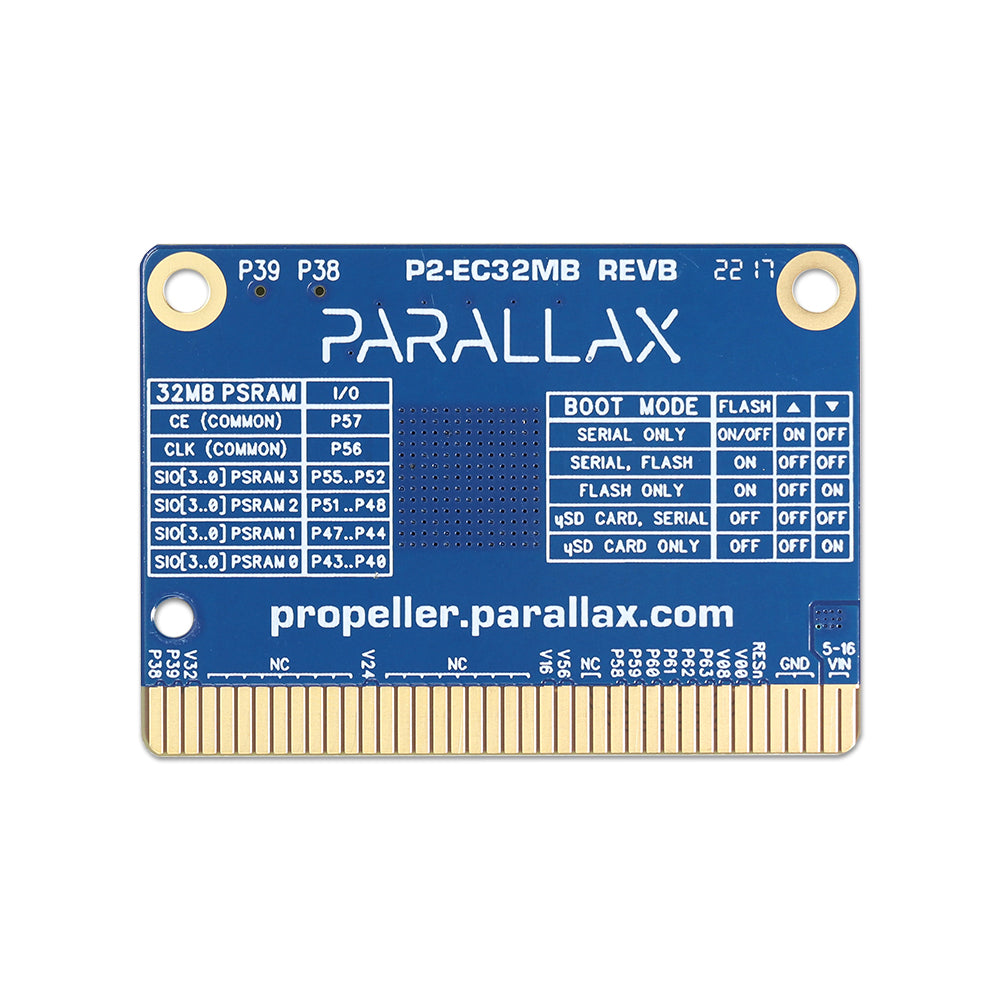

The P2 Edge Module with 32MB RAM includes the 100-pin TQFP P2X8C4M64P, core and I/O power regulators, power filtering capacitors, crystal, flash memory, boot configuration switches, microSD card socket, and two user-configurable on-board LEDs to indicate system states. This version of the Edge module adds 32MB of RAM to the original P2-EC, and has 46 free I/O’s available at the edge connector. The PCB's multi-layer design features solid thermal and signal reference planes isolating each signal layer. The design is optimized for low-noise analog and digital operation, and with low temperature rise even at high-speed operation.

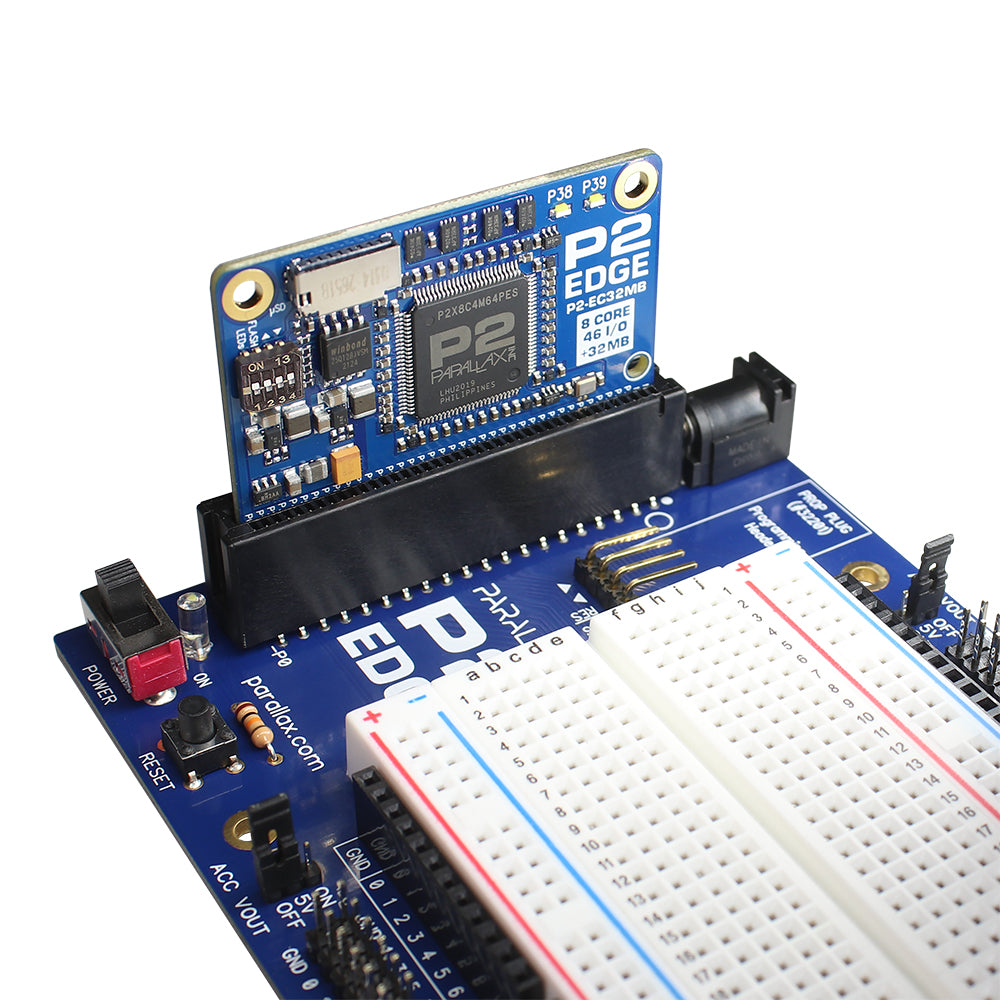

For development, the P2 Edge Module fits in the card edge socket of the spacious P2 Edge Module Breadboard, the compact P2 Edge Mini Breakout Board, or the bare-bones P2 Edge 80-pin Adapter Kit.  For product integration,  several edge socket choices are available from our P2 Components shop page. This arrangement allows developers to integrate the Propeller 2 into products without the need for multi-layer cost or expertise.

See our Propeller 2 Documentation page and our Propeller Programming Tools Comparison Chart for more resources; you may also sign up for our P2 Newsletter here.

Features

• Compact module with Propeller 2 P2X8C4M64P multicore microcontroller
• 6-layer* low noise, system-on-board module
• Integrated thermal plane for low temperature rise characteristics at high speed operation
• Double-sided 80 way 0.05 inch (1.27 mm) edge connector
• Orientation / module locking hole
• Two mounting holes connected to the module ground planes
• High-precision 20 MHz TCXO oscillator (+/-0.5 PPM)
• Adjustable operating frequency; recommended maximum 180 MHz clock
• Overclocking possible beyond 300 MHz; see the P2 forum for discussion
• 16 MB SPI Flash memory and microSD card socket for flexible memory management
• 32 MB 16-bit PSRAM arranged as 4x 4-bit blocks, and accessible up to 1x 16-bit with typical burst speeds of 308 MB/s
• 46 Smart I/O pins brought out to the edge connector and 18 Smart I/O pins dedicated to the on-board RAM
• Buffered LEDs on I/O pins P38 and P39, visible from both sides of the module PCB
• Onboard LED feature enable/disable switch
• Onboard 1.8 V 3-amp* switching regulator with short-circuit, over-current fault and brownout protection for the P2 core (VDD)
  Onboard 3.8, V 3-amp* switching regulator with short-circuit and over-current fault protection to supply the low-noise IO regulators for maximum efficiency*
• Onboard low-noise LDO 3.3 V regulators for the P2 smart-pins (VIO), with short-circuit and over-current fault protection
• Wide 5-16 VDC power supply input range with reverse polarity protection
• Compatible with the Prop Plug for system programming
• PCBs assembled, tested, and completed in Rocklin, California.

*Updated for Rev B modules.

P2 Edge Module with 32MB RAM Specifications:

• Voltage input requirements: 5-16 VDC
• Input current requirements: 100 mA recommended min, 500-1000 mA typical
• Voltage input protection: reverse voltage
• Propeller 2 chip: P2X8C4M64P (8 cogs, 512 KB shared hub RAM, 64 smart pins)
• Non-volatile memory: 16 MB (128 Mb) SPI Flash
• Volatile memory: 32 MB (256 Mb) PSRAM
• Oscillator: TCXO 20 MHz +/-0.5PPM
• Smart I/O pins: 46 accessible, 40 fully free, grouped in 8 sets of 8 I/Os
• Smart I/O pin logic voltage: 3.3 V
• Internal VDD Power Supply: 1.8 V up to 3 A*, 750 kHz* nominal switching frequency
• VIO power supplies: low noise LDO 3.3V up to 300 mA per 8 I/O pins
• Edge connector: double sided 80 way 0.05” (1.27 mm) pitch edge slot
• Programming: serial up to 2 Mbaud
• Operating temperature: -40 to +185 °F (-40 to +85 °C)
• PCB dimensions: 1.45 in x 2.04 in (37mm x 51.7mm)

*Updated for Rev B modules
