P2 Edge Breakout Board

P2 Edge Breakout Board Overview

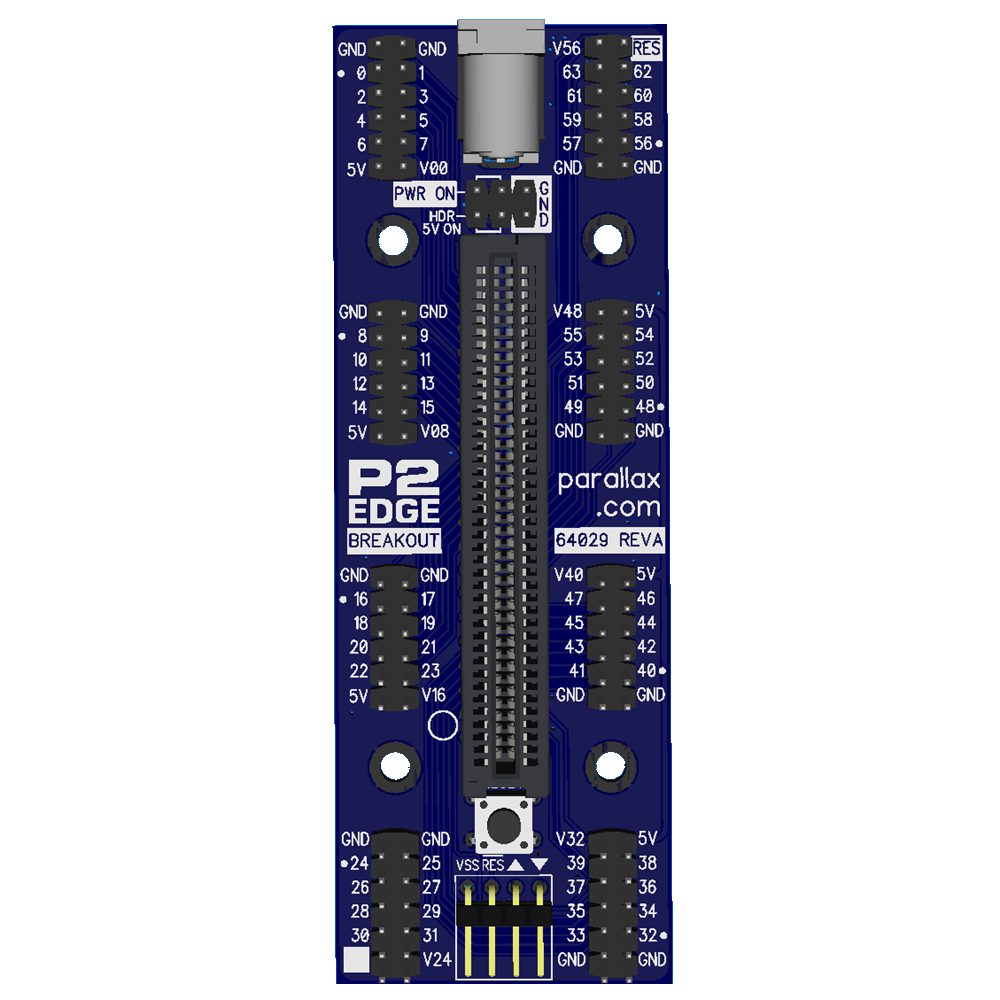

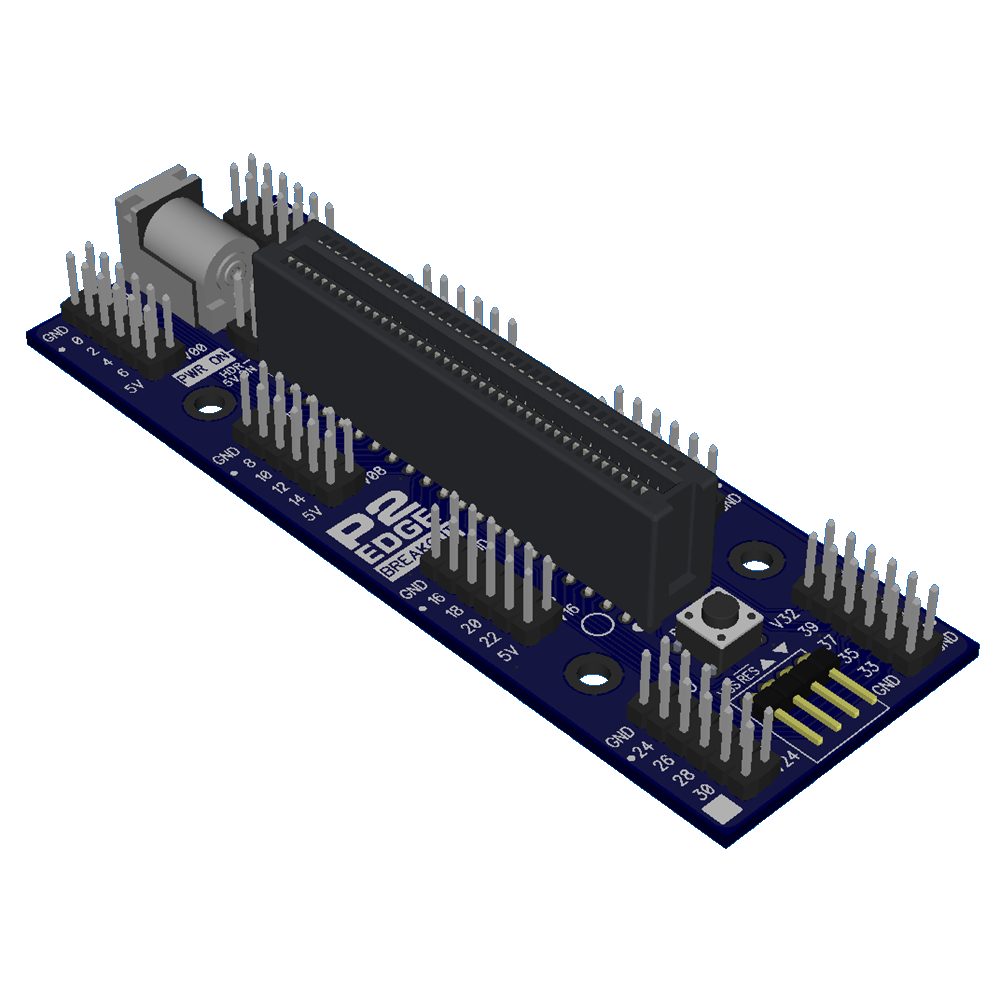

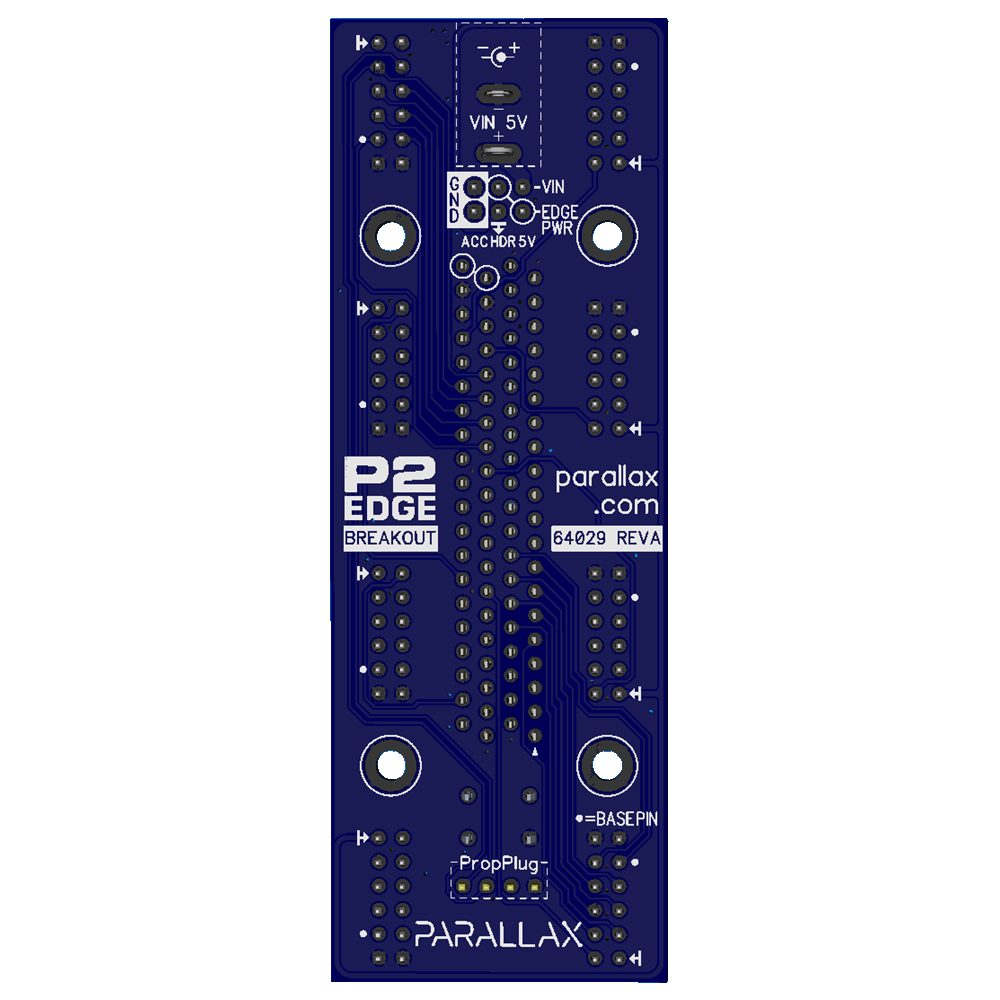

The P2 Edge Breakout Board provides a compact interface to the P2 Edge Module for experimenting and developing with the Propeller 2 multicore microcontroller.

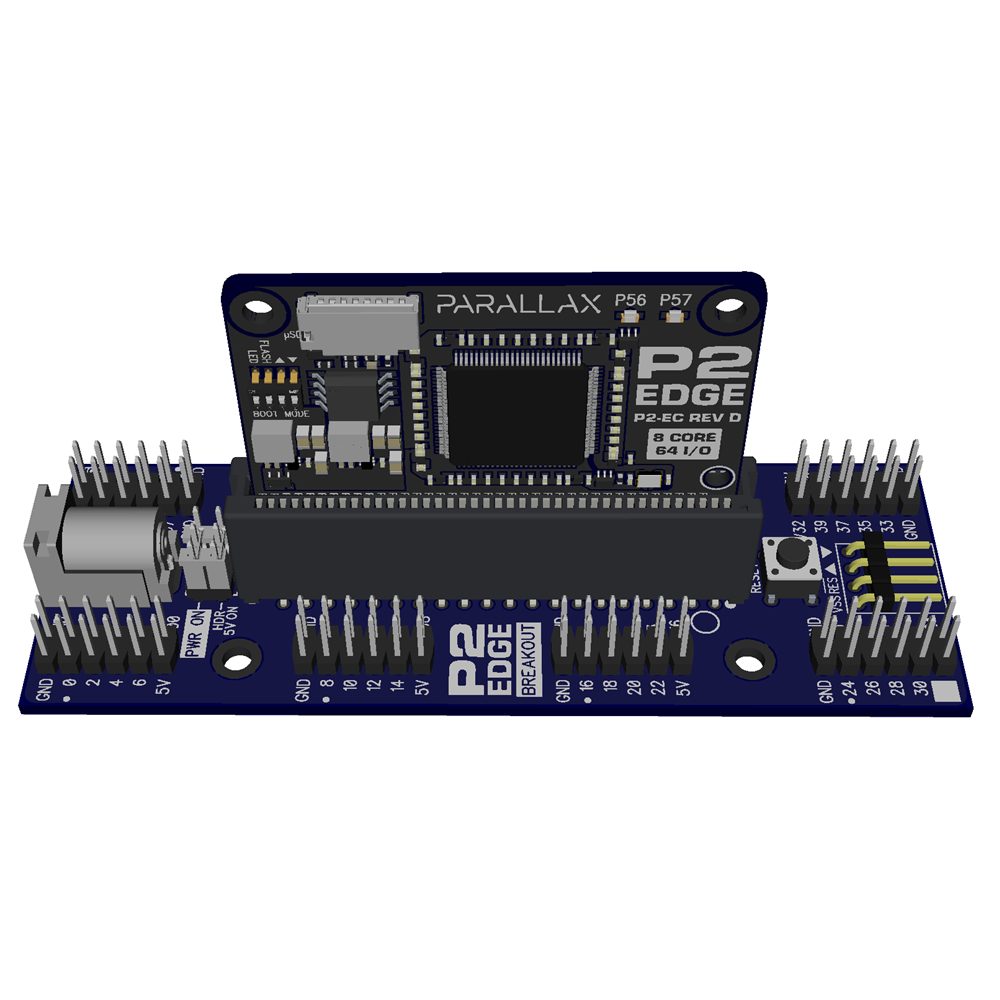

The board accepts the P2 Edge Module (#P2-EC) and includes a supply voltage DC Jack socket, power headers, reset button, and programming header for the Parallax Prop Plug (#32201).

All 64 of the P2 Edge Smart I/O pins are available at eight 0.1” pin header sockets, compatible with both single and dual header Propeller 2 accessories. All accessory headers are arranged to accept single or dual P2 accessory boards. The last header includes the programming and memory pins (58-63) and reset signal (RES) for wireless programming when using the P2 WX Adapter (#64007) with Parallax WX ESP8266 SIP module (#32420S).

This P2 Edge Breakout Board provides access to every I/O pin available on the #P2-EC module.  There is also a P2 Edge Mini Breakout Board (#64019) for customers that don’t require all the I/O pins, or are working with the #P2-EC32MB Edge Module.

P2 Edge Breakout Board Features

• Vertical socket for the P2 Edge Module (#P2-EC)
• Solder-free prototyping with header sockets for power, programming and I/O
• Center-positive 2.1 mm barrel jack for external 5 VDC power supply
• Flexible 0.1” 2x3 way power header allows use of an external switch or power supply
• Convenient reset button
• Dedicated Parallax Prop Plug (#32201) header, for system programming and debugging
• All 64 Smart I/O pins brought out to 0.1” 2x6-way P2 accessory headers
• Compatible with the P2 to MikroBUS Click Adapter and Click Boards

P2 Edge Breakout Board Specifications

• Voltage input: 5 VDC, absolute maximum 5.5 VDC
• Input Current: Recommended minimum 100 mA
• VIO Power Supplies: 3.3 V up to 300 mA per 8 I/O pins; requires P2 Edge Module
• Smart I/O pins: 3.3 V logic level, source or sink 30 mA per I/O pin
• USB programming: Serial up to 2 MBaud; requires Prop Plug (#32201) programming adapter
• Wireless programming: (up to 2 MBaud); requires P2 WX WiFi Adapter (#64007) and WX WiFi SIP module (#32420S)
• Mounting holes: Four 3.2mm diameter plated mounted holes connected to GND
• Operating temperature: -40 to +185 °F (-40 to +85 °C)
• PCB Dimensions: 4 x 1.4 in (101.6 x 35.6 mm)

The Product Guide  and the RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.

PCB assembled, tested, and completed in the USA
