296 x 128 2.9 inch E-Paper Display Overview:

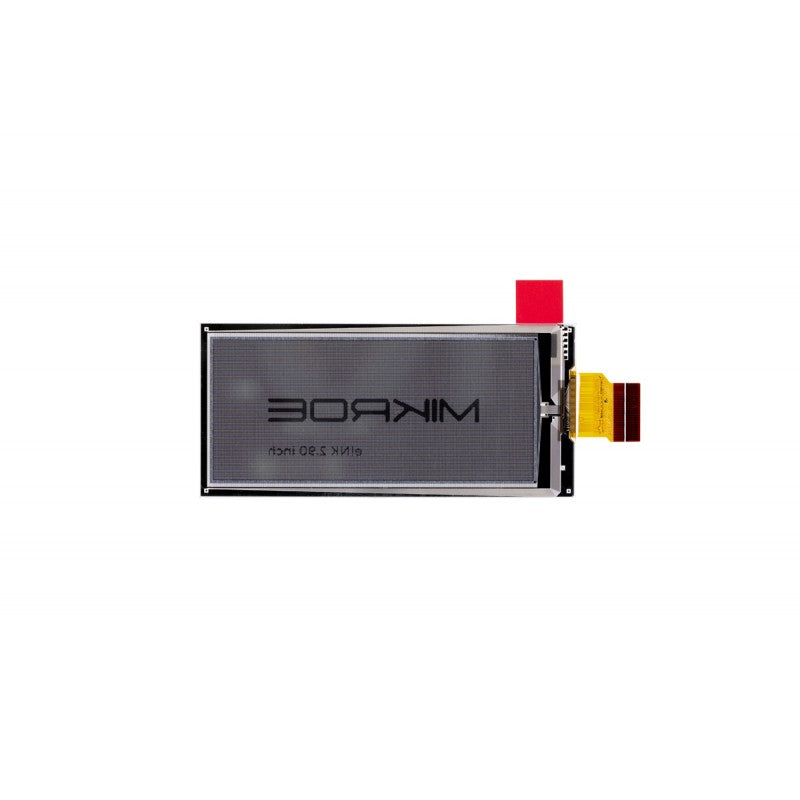

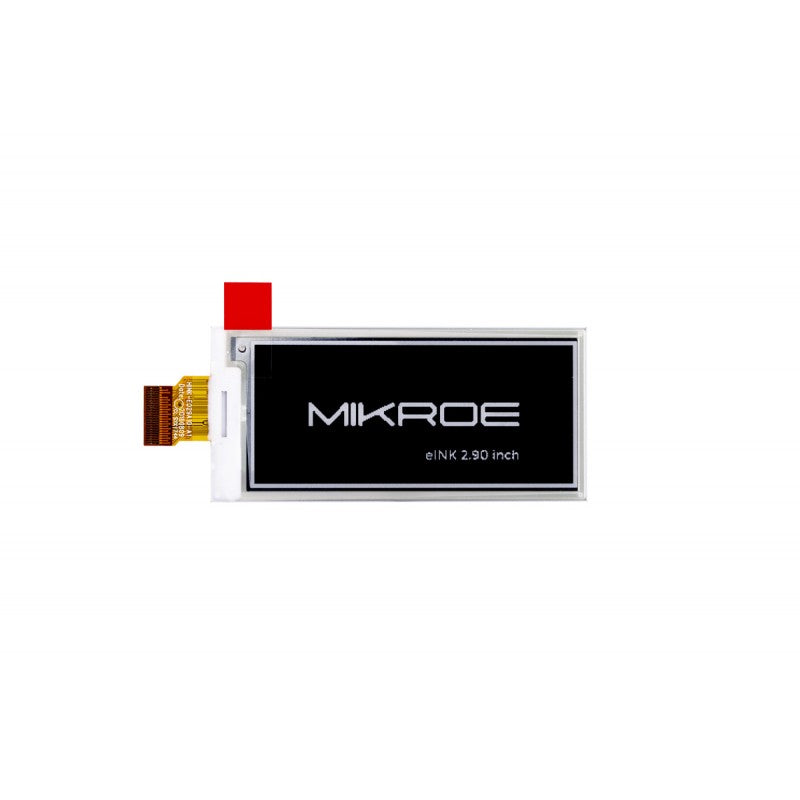

The E-Paper 2.9" display is based on Active Matrix Electrophoretic Display (AMEPD) technology and has an integrated pixel driver. The display itself has 24-pin flat printed cable, used to connect to the eINK Click board.
Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC), using the P2 to MikroBus Click Adapter (#64008).
Specifically, the eINK Click is supported by the Propeller 2 driver for Mikroe eINK Click by Stephen Moraco. See the P2 Quick Byte E-Ink Display Demo for a useful useful utility example as a starting point.
The E-Paper 2.9" display has resolution of 128(V) X 296(H) pixels and an active display area of 29.05 X 66.89. The size of its square shaped pixels is 0.226 X 0.227 mm. The screen displays clear and crisp graphics, and has an ultra-wide viewing range, thanks to the technology used. Another key feature of the E-Ink technology is the extremely low power consumption, even when the display actively refreshes its content.
296 x 128 2.9 inch E-Paper Display Specifications:
- Display size: 2.9"
- Resolution: 128 x 296 (112 dpi)
- Pixel Pitch: 0.226 x 0.227 mm
- Active display area: 29.05 x 66.89 mm
Resource Links
- Manufacturer’s resource page
- P2 Quick Byte E-Ink Display Demo
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
