122 x 250 2.13 inch E-Paper Display for eINK Click
Hurry up, only 10 items left in stock.

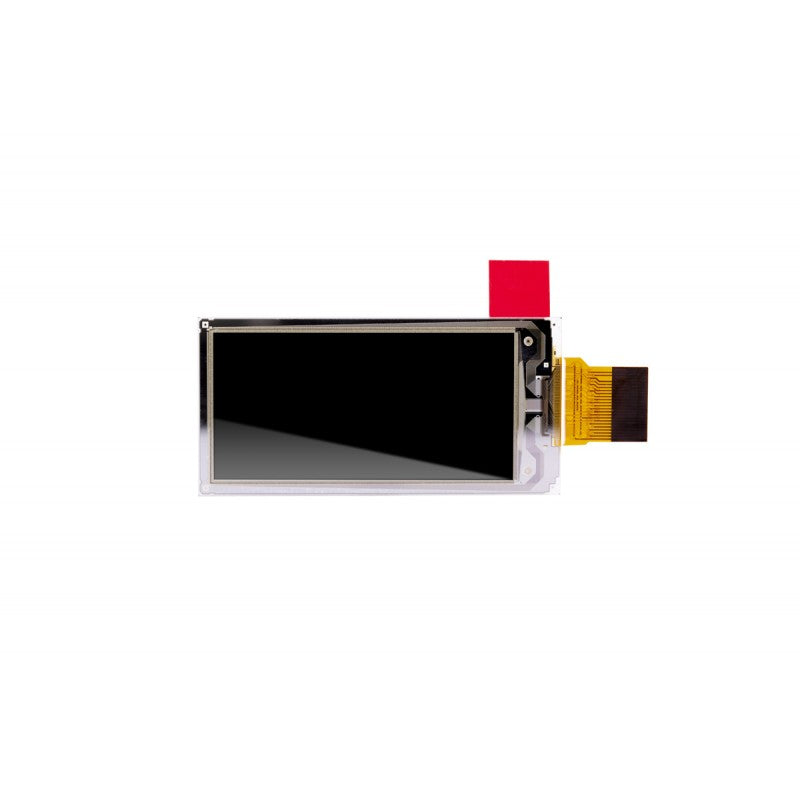

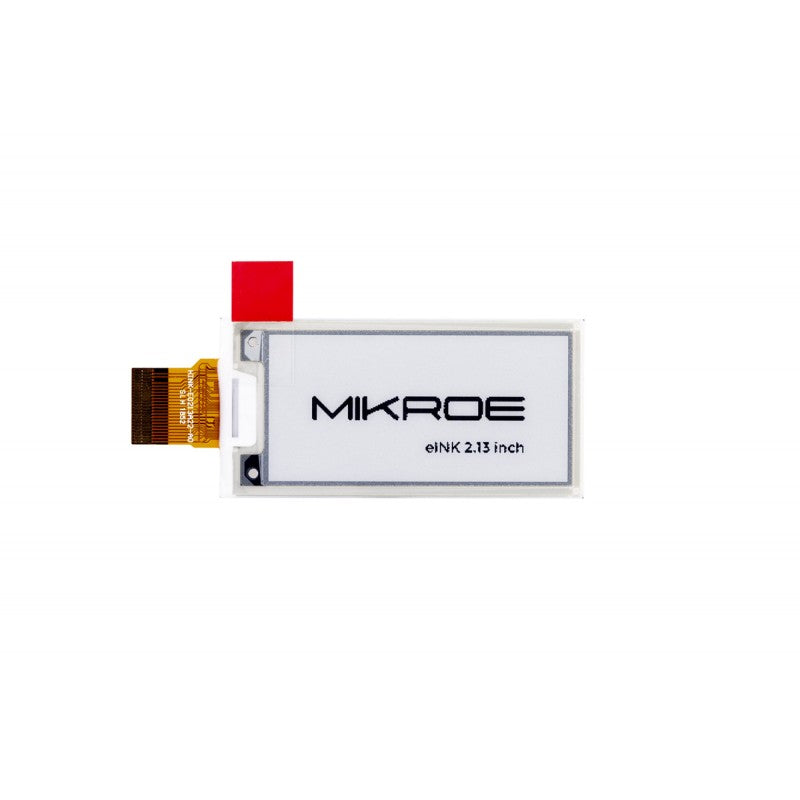

122 x 250 2.13 inch E-Paper Display Overview:
The E-Paper 2.13" display is based on Active Matrix Electrophoretic Display (AMEPD) technology and has an integrated pixel driver. The display itself has 24-pin flat printed cable, used to connect to the eINK Click board.
Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC), using the P2 to MikroBus Click Adapter (#64008).
Specifically, the eINK Click is supported by the Propeller 2 driver for Mikroe eINK Click by Stephen Moraco.
The E-Paper 2.13" display has resolution of 122(V) X 250(H) pixels and an active display area of 23.71 X 48.55. The size of its square shaped pixels is 0.194mm x 0.194mm. The screen displays clear and crisp graphics, and has an ultra-wide viewing range, thanks to the technology used. Another key feature of the E-Ink technology is the extremely low power consumption, even when the display actively refreshes its content.
122 x 250 2.13 inch E-Paper Display Specifications:
- Display size: 2.13"
- Resolution: 122 x 250 (160 dpi)
- Pixel Pitch: 0.194 x 0.194 mm
- Active display area: 23.71 x 48.55 mm
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
