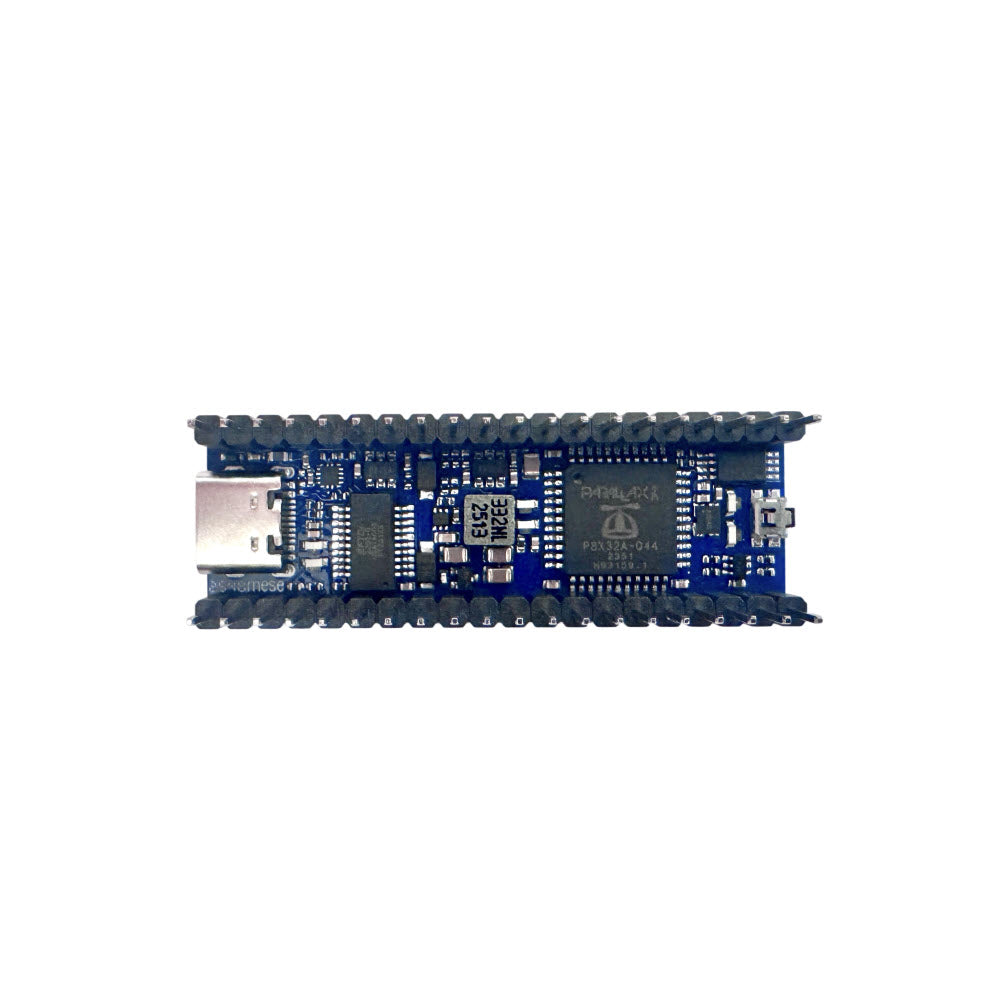

The Propeller FLiP microcontroller module is compact, convenient, and designed with students in mind.
With the Propeller FLiP module, students can learn circuit-building and programming with visual BlocklyProp Solo. Makers can tuck it one into their projects, also using BlocklyProp to get up and running quickly. Design engineers can embed Propeller FLiP modules into production hardware, using the Propeller programming language of their choice.
The breadboard-friendly Propeller FLiP microcontroller module packs a lot of features into a small, easy-to-use form-factor. With on-board USB for both communication and power, lots of on-board LEDs, a high-performance 3.3V switching regulator, USB and reverse-polarity protection, and informative, easy-to-read labelling, the Propeller FLiP module will quickly become your go-to microcontroller for all of your inventions!

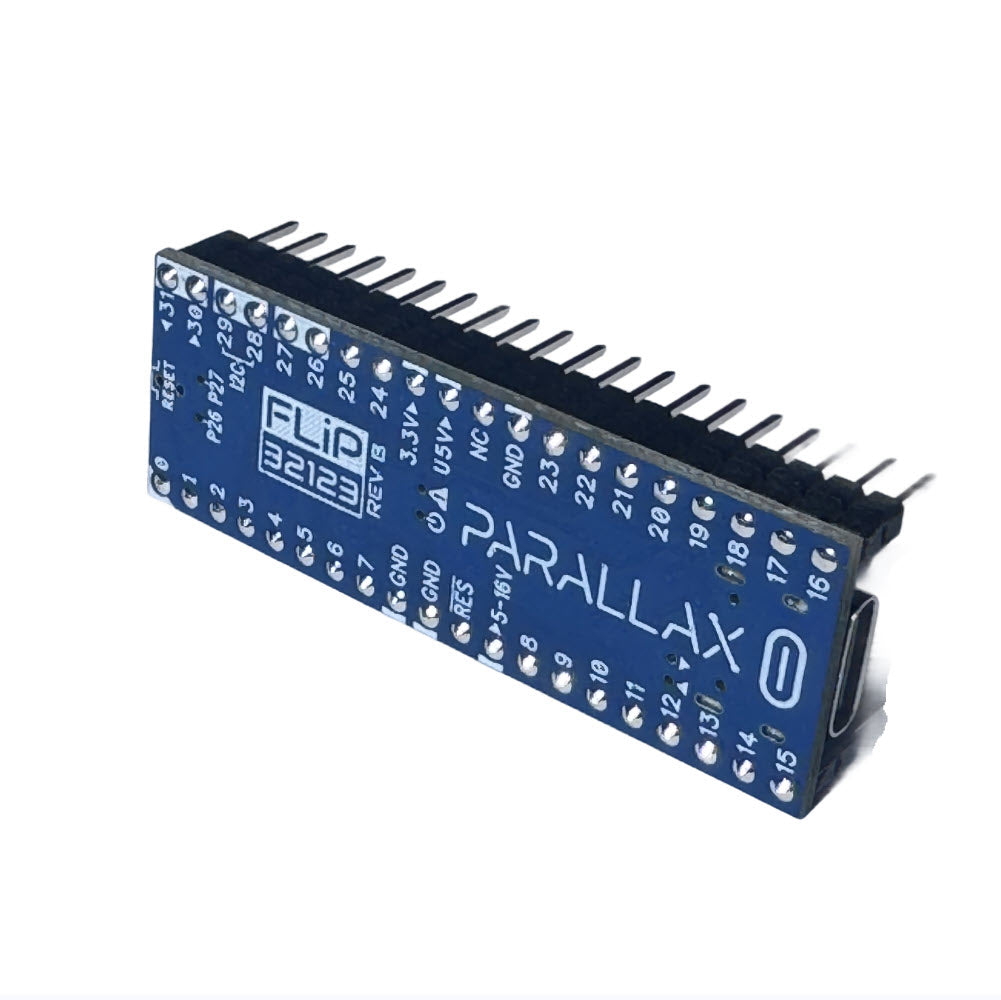

BlocklyProp’s ease of use combined with pin information printed right on top of the module makes learning fun and prototyping incredibly fast. The Propeller FLiP has roughly the same pin-out as previous 40-pin DIP Propeller modules. This design provides improved damage-minimization if inserted in reverse. When coupled with exceptional power management, the FLiP is a robust module ideally suited for classrooms, projects and finished products alike.
Features:
- 8-core Propeller 1 (P8X32A) microcontroller system with 64KB EEPROM and 5 MHz oscillator
- Fully assembled 40-pin DIP package, NO soldering required!
- USB-C connector with port detection for power, programming, and communication
- USB reset control can be enabled/disabled
- 128-byte identification memory that can be permanently locked in read-only mode
- Two built-in, user-programmable LEDs peek through vias in the PCB
- Additional LEDs indicate power, TX/RX communication, and over-current fault
- Tiny edge-mounted reset button lets you restart the Propeller without disconnecting
- White blocks by power pins and special-function pins can be color-coded with markers to support student success
- Supported by the BlocklyProp Solo online programming tool
- Fully open source with free BlocklyProp, C, Spin, and assembly language programming tools
- PCB assembled, tested, and completed in Rocklin, California
Note: USB C cable required, not included. The Propeller FLiP Microcontroller Module replaces the PropStick USB (#32210)
Propeller FLiP Microcontroller Module Specifications:
- Microcontroller: 8-core Propeller 1 P8X32A-Q44
- EEPROM: 64 KB on I2C
- Oscillator: 5 MHz SMT
- Form factor: 40-pin DIP with 0.1" pin spacing
- GPIO: 32 accessible, 26 fully free
- P26 & P27: user-programmable LEDs
- P28 & P29: I2C bus with EEPROM
- P30 & P31: Propeller programming
- Power Input: 5V via USB, or
- 5–9 VDC via VIN pin on Rev A
- 5–16 VDC via VIN pin on Rev B
- USB protection: USB limiter and overcurrent / shortcircuit protection circuit.
- USB-C port detection and USB reset enable/disable programming
- 3.3 V protection:
- switching supply short circuit and over-current protection
- reverse-current protection on 3.3 V output pin
- Current Limits
- 500 mA from USB port, via 3.3V▷, 5V▷, and I/O pins (400 mA on Rev A)
- 1500 mA from USB supply, via 3.3V▷, 5V▷, and I/O pins
- 1500 mA from ▷5-9V pin, via 3.3V▷ and I/O pins
- Communication: Serial over micro USB-C
- Operating temperature: -4 to +185 °F (-20 to +85 °C)
- PCB Dimensions: ~ 2.0 x 0.7 in (51 x 18 mm)
NOTE: We are currently shipping Rev B, USB C modules. We do not have any more Rev A modules in stock.
