Parallax 2 x 16 Serial LCD with Piezo Speaker (Backlit)

Parallax 2 x 16 Serial LCD with Piezo Speaker (Green Backlit) Overview:

The Parallax Serial LCDs (liquid crystal displays) can be easily connected to and controlled by a microcontroller using a simple serial protocol sent from a single I/O pin. The LCD displays provide basic text wrapping so that your text looks correct on the display. Full control over all of their advanced LCD features allows you to move the cursor anywhere on the display with a single instruction and turn the display on and off in any configuration. They support visible ASCII characters Dec 32-127). In addition, you may define up to eight of your own custom characters to display anywhere on the LCD. An onboard piezospeaker provides audible output, with full control over tone note, scale and duration using ASCII characters Dec 208–232.

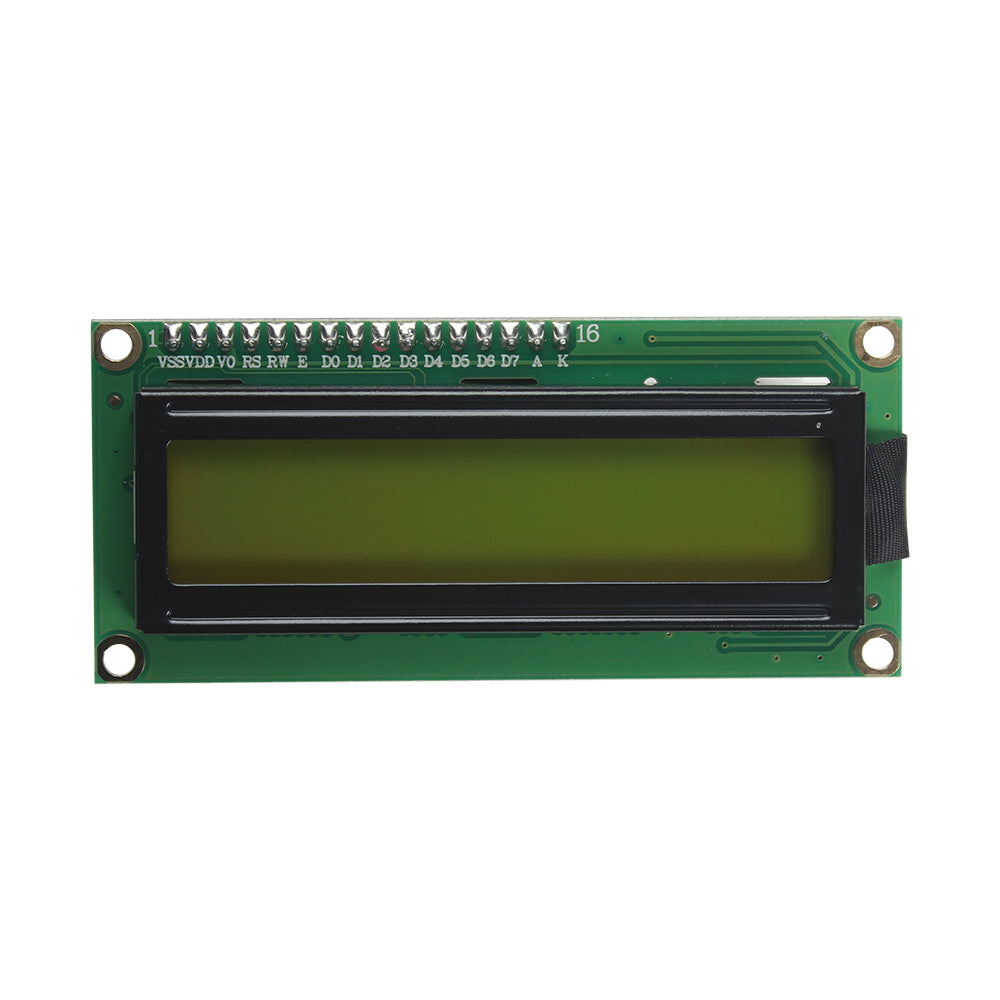

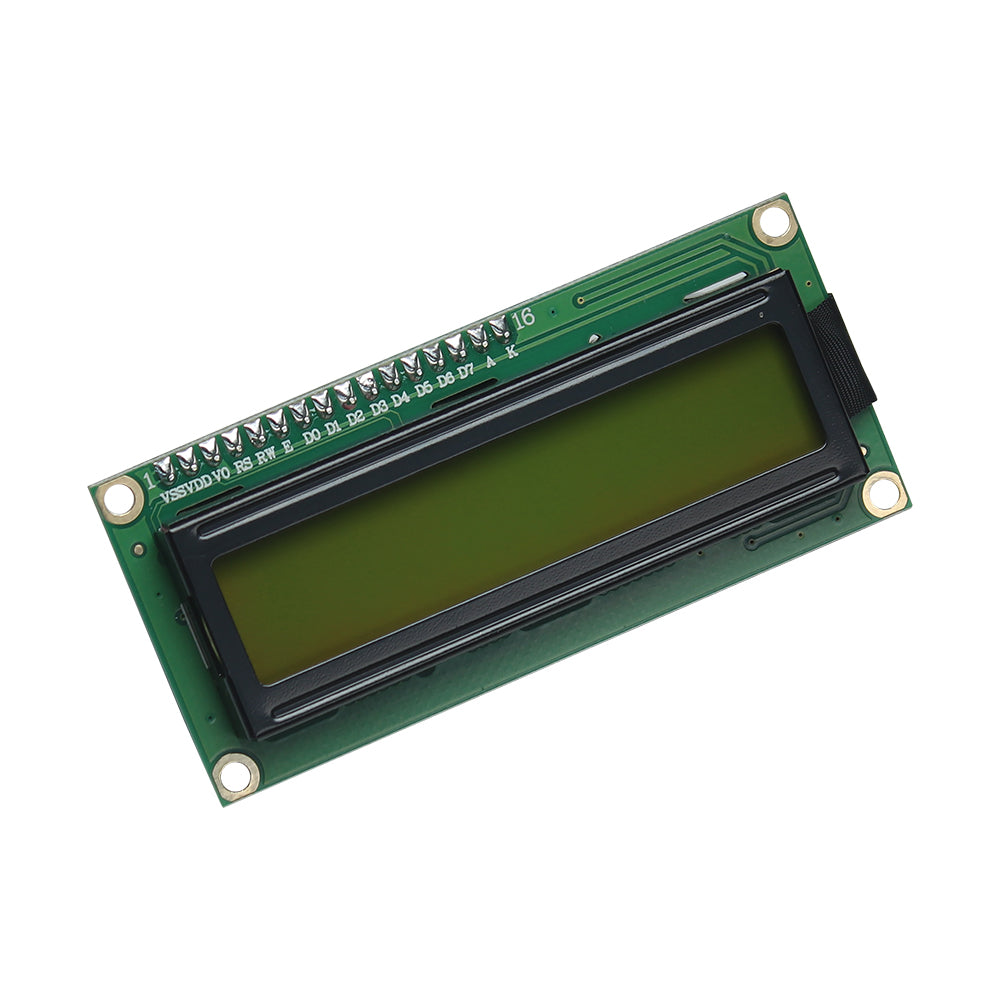

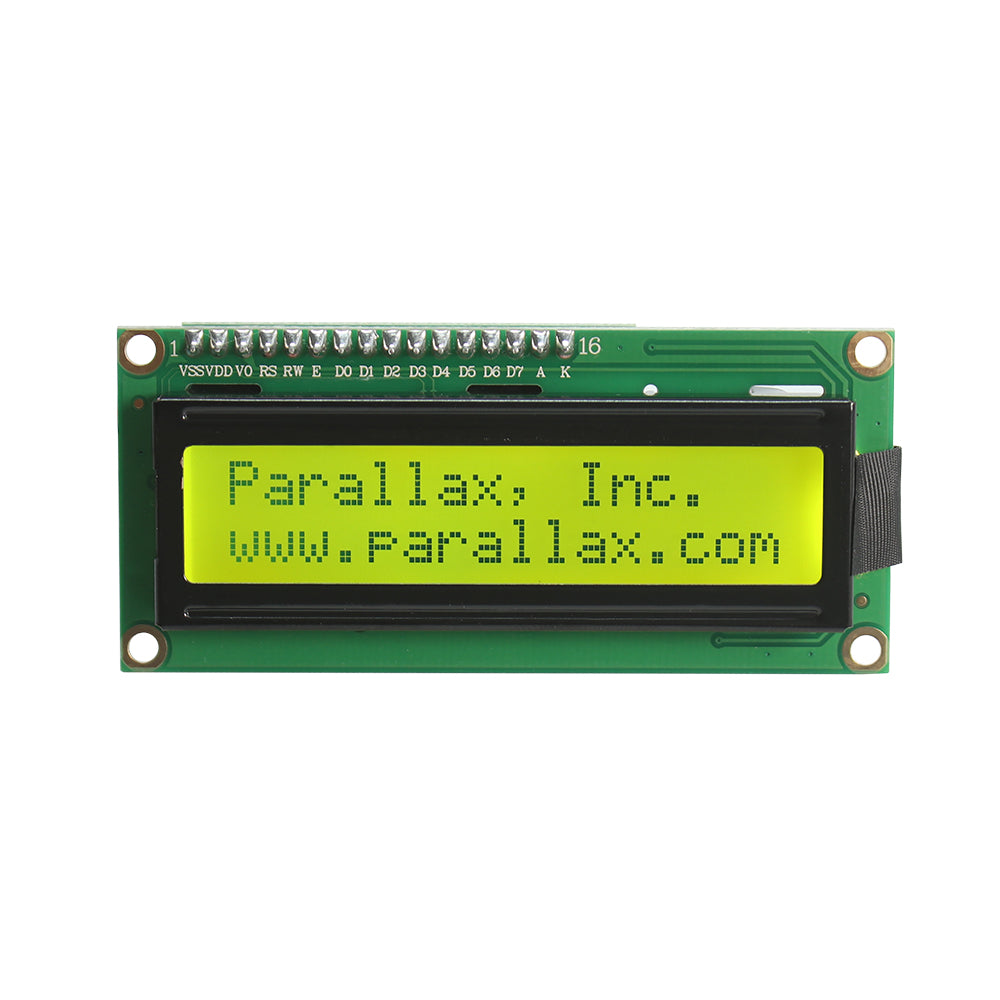

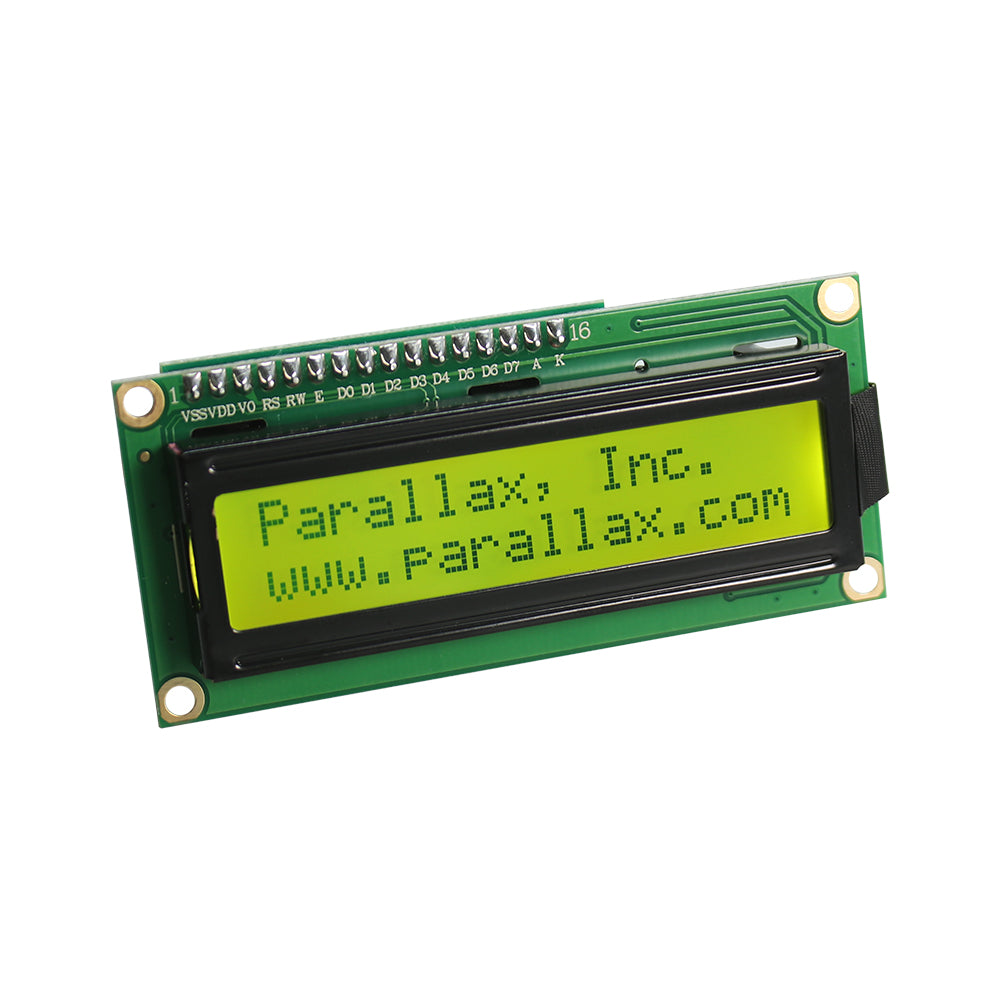

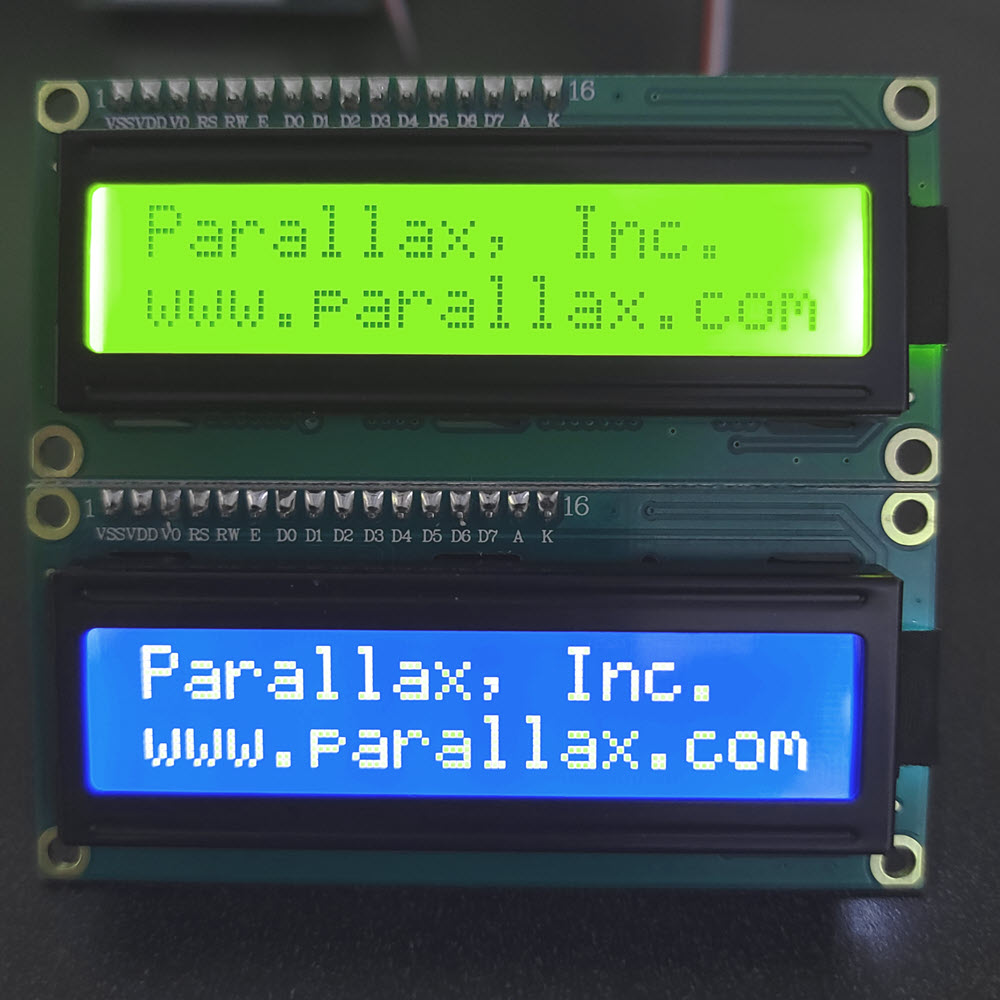

This model features 2 rows of 16 black characters on a green backlit field.  It is also available in 4 rows by 20 characters (#27977).

Key Features:

• Clear 40-pixel characters support ASCII DEC 32-127
• Turn backlighting on or off with a single command
• Eight user-definable custom characters
• Move the cursor anywhere or clear the display with a single command
• Build-in piezospeaker lets you add audible alert tones
• Baud mode selector and adjustable contrast on the back of the display

Application Ideas:

• Professional-looking text and tone output on any microcontroller application
• Easy serial debugging without a PC
• Real-time sensor data output on autonomous robot

Note: Styles and dimensions may vary slightly. This product is a compatible replacement for the discontinued 2x16 Serial LCD (Non-backlit), #27976.

Parallax 2 x 16 Serial LCD with Piezo Speaker (Green Backlit) Details:

• 2 rows x 16 characters
• Built-in piezospeaker
• Test mode verifies display functionality
• YG LED backlit display
• Adjustable contrast knob

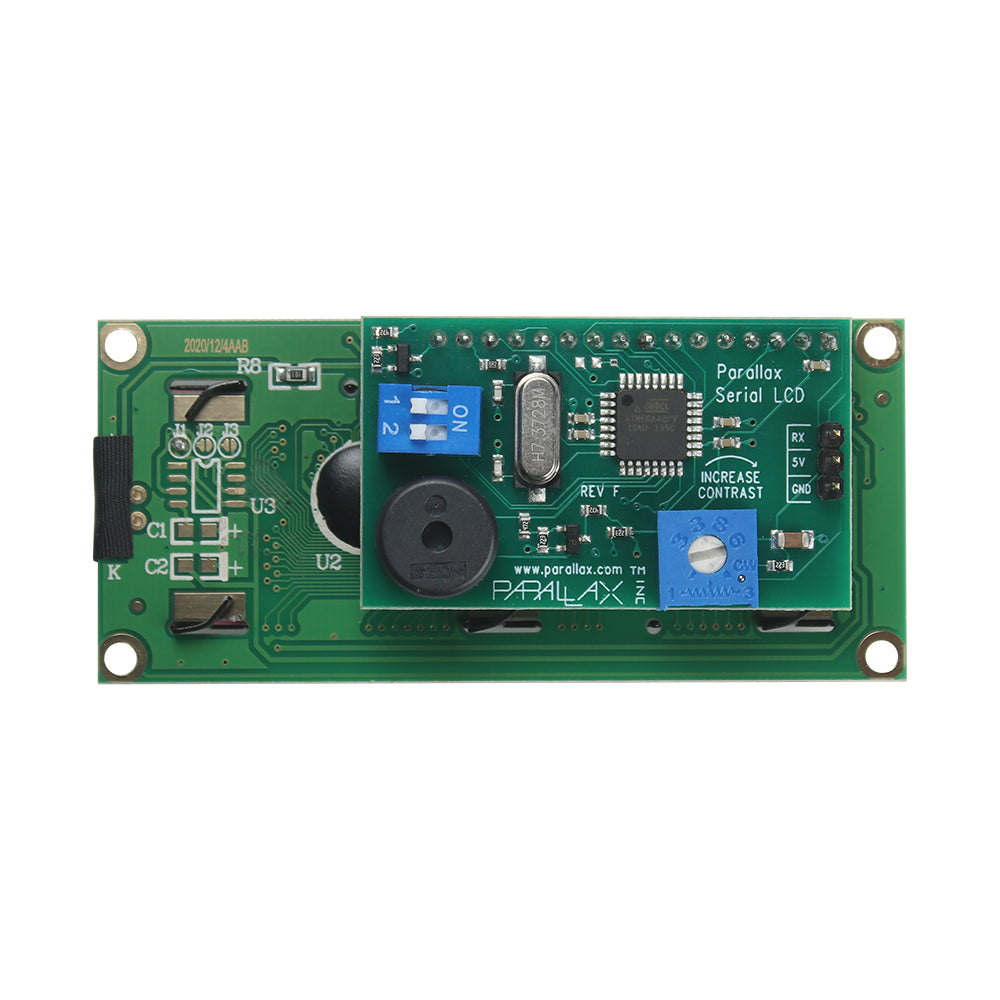

• Baud rate switches on back of device
• Power requirements: +5 VDC, 20 mA (light off), ~ 80 mA typical (light on)
• Selectable asynchronous serial baud rates: 2400, 9600, 19200
• Approximate dimensions (may vary): 1.42 x 3.15 in (36 x 80 mm)
• Connection: 3-pin male header with 0.1" spacing for ground, power, and input signal
• Operating temp range: -4 to +158 °F (-20 to +70 °C)

Notes:

• The LCDs currently for sale are updated to Revision F. Basic functionality remains the same, but power requirements and the layout of the backpack have changed. Please see the documentation for information on your model.
• This device can be connected to a PC serial port using a MAX232 line driver. The circuit isn't supported by Parallax, but it's possible to make this connection with a few extra parts.

Resource Links

• BlocklyProp Serial LCD Block Reference (Learn site)
• Half-Duplex Serial with LCD – Propeller C Tutorial
• Magic BS2 Board – BASIC Stamp Project
• Serial LCD KickStart – PBASIC, Arduino, and Propeller Spin examples
