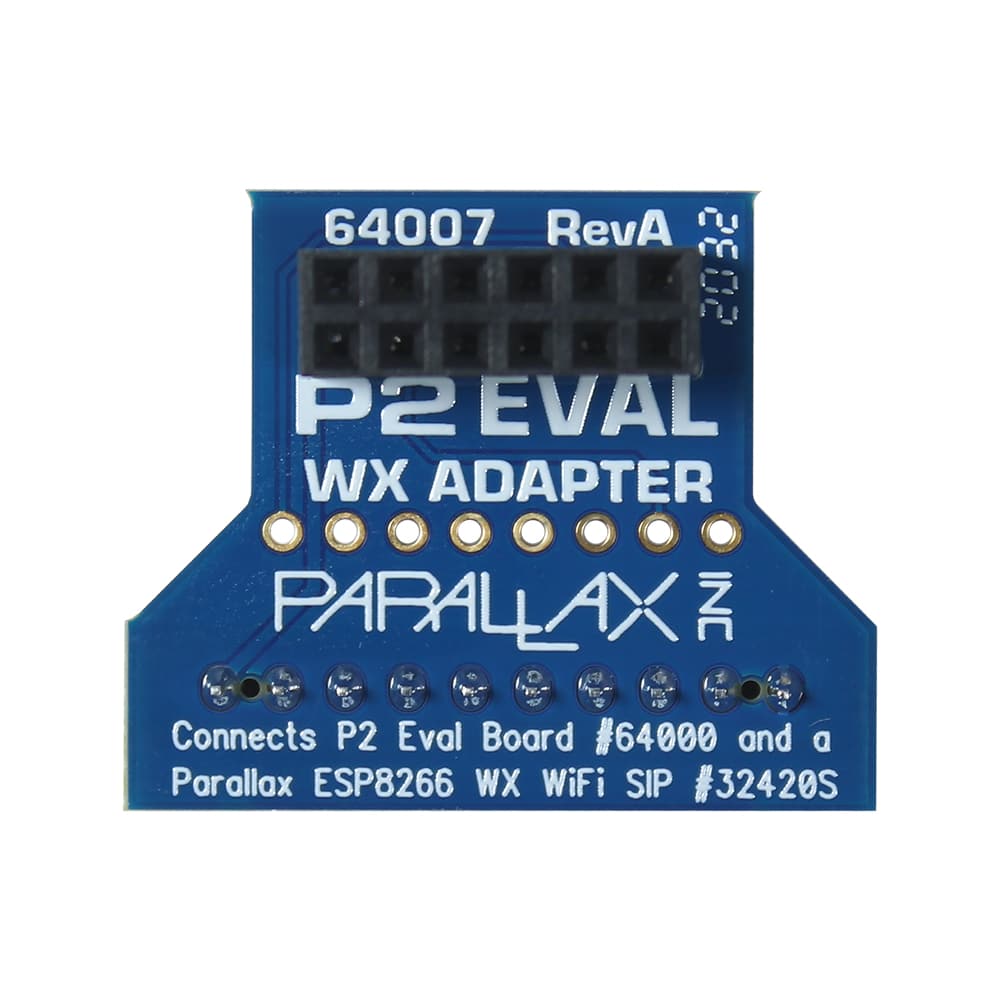

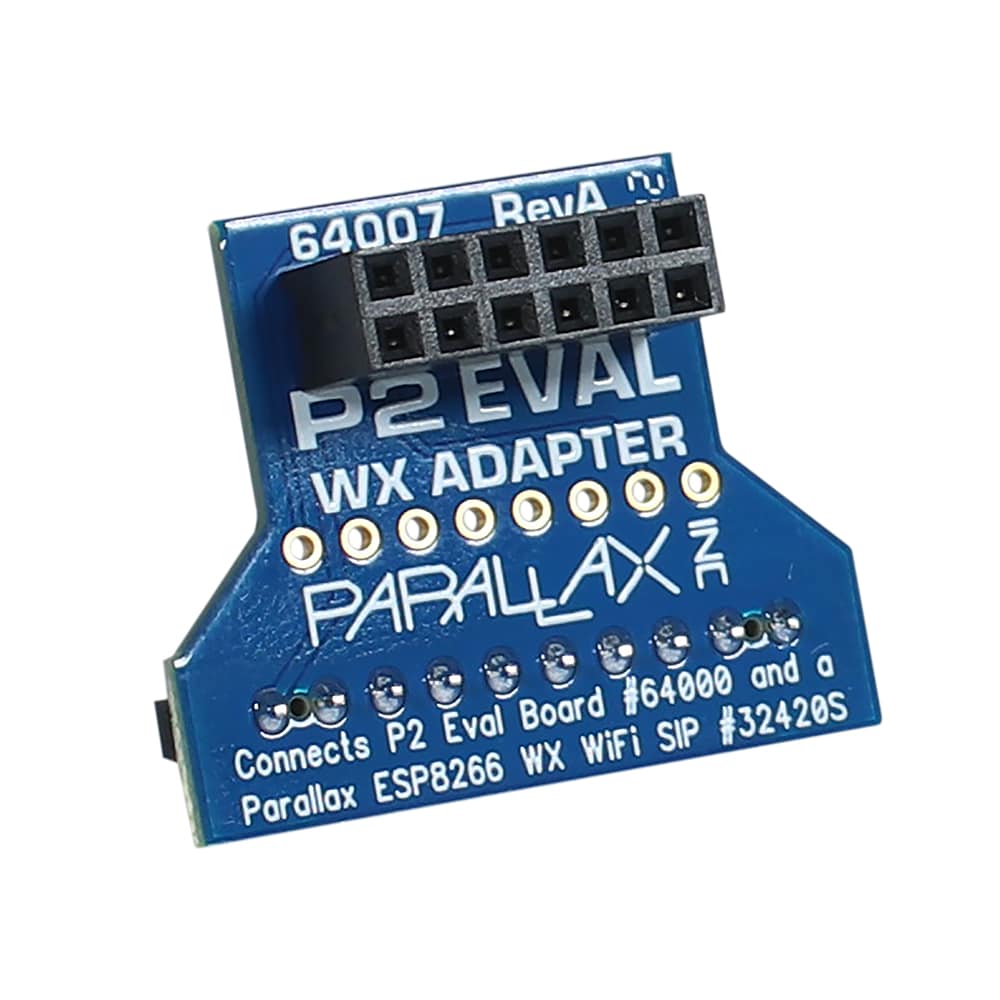

P2 WX Adapter Add-on Board
Available in stock (250)
P2 WX Adapter Add-on Board Overview:
The P2 WX Adapter add-on board connects a Parallax WX ESP8266 Wi-Fi Module SIP version (#32420S) to our most popular Propeller 2 development systems for wireless programming and communication. Wireless programming is available via the drag-and-drop P2 Loader on the WX ESP8266 Wi-Fi Module SIP web page, using a binary file from any P2 programming language. A Spin2 Object is available for IoT applications on the P2 Object Exchange.

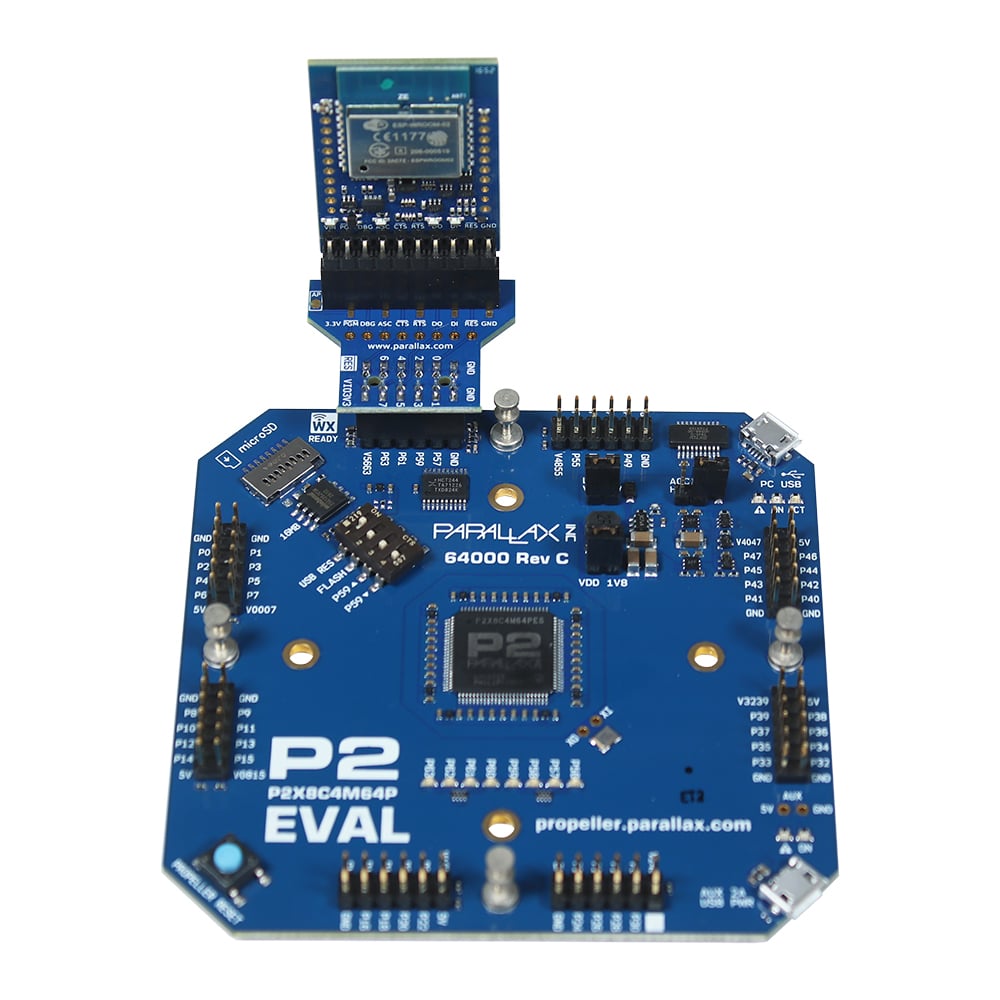

Compatible development systems include the P2 Eval Board Rev C (#64000), and the P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC).
Note that when wirelessly programming via the WX module the Prop Plug must be disconnected.
Features:
- Designed for use with Parallax WX ESP8266 Wi-Fi Modules SIP version (#32420S)
- Low insertion force direct connection for the WX Module to compatible Parallax P2 boards

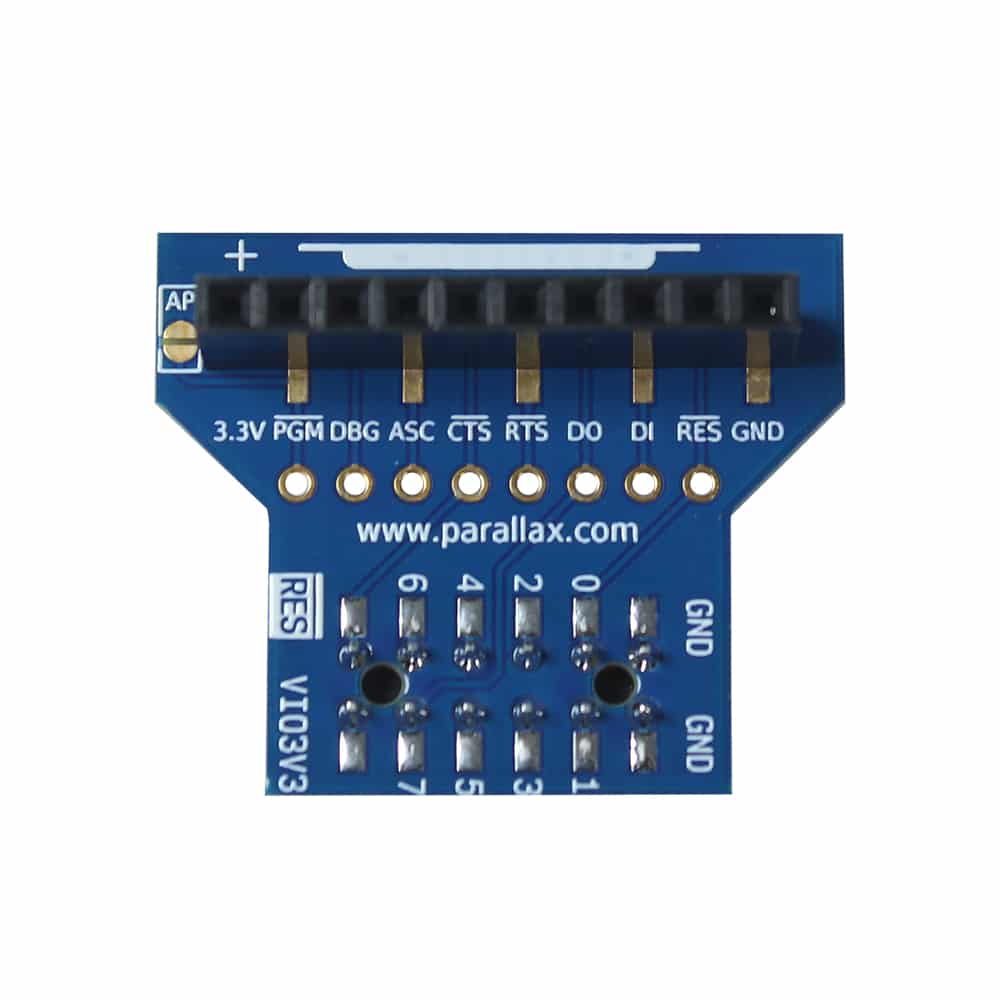

- Connect to P57–P63 RES header for P2 programming, or other 2x6 accessory header for serial-over-WiFi
- Ships completely assembled and tested by Parallax
Applications:
- Wireless Propeller 2 programming for rapid development
- Multicore remote telemetry systems
- Custom IoT devices
P2 WX Adapter Add-on Board Specifications:
- Header/socket pin spacing: 0.1 in (2.54 mm)
- Dimensions: 1.2 x 1.0 in (30.48 x 25.4 mm)
- Operating temperature: -40 to +185 °F (-40 to +85 °C)
Product guide, schematics, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
PCBs assembled, tested, and completed in the USA.
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
