P2 Edge 80-pin Adapter Kit

This product is retiring; quantity limited to stock on hand.

P2 Edge 80-pin Adapter Kit Overview:

The P2 Edge 80-Pin Adapter provides a compact breakout for the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB), bringing all of the Propeller 2 multicore microcontroller pins to 4 rows of 20-way standard 0.1” pin header pads.

This adapter is supplied as a kit comprising the PCB, vertical edge socket and four 1x20 0.1” pin headers. The kit ships un-assembled to provide  complete flexibility.

The top two mounting holes are connected to the top-side copper plane and the two non-connected P2-Edge pads. These holes could be left isolated or connected to a signal or power rail as required.

The bottom two mounting holes are connected to the bottom-side copper plane and the two 5VDC P2-Edge Module Power Input pads.

The 20-pin header spacing is suitable for a breadboard. One possible configuration would be to solder the outer header pins downward, and the inner header pins upward. In this way, the adapter may be plugged into a breadboard, and the upward pins would be accessible to jumper wires.

A Prop Plug (#32201) will be required to program the P2 Edge Module, sold separately.

Features:

• Vertical socket for the Parallax P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB)
• PCB comes unpopulated for complete flexibility
• Supplied with four 1x20 0.1” male pin headers
• Mounting holes at each corner, with two connected to 5VDC IN and two unconnected

Specifications:

• Operating temperature: -40 to +185 °F (-40 to +85 °C)
• Mounting holes: 2.4mm diameter
• PCB Dimensions: 2.3 x 0.8 in (58.5 x 20.3 mm)

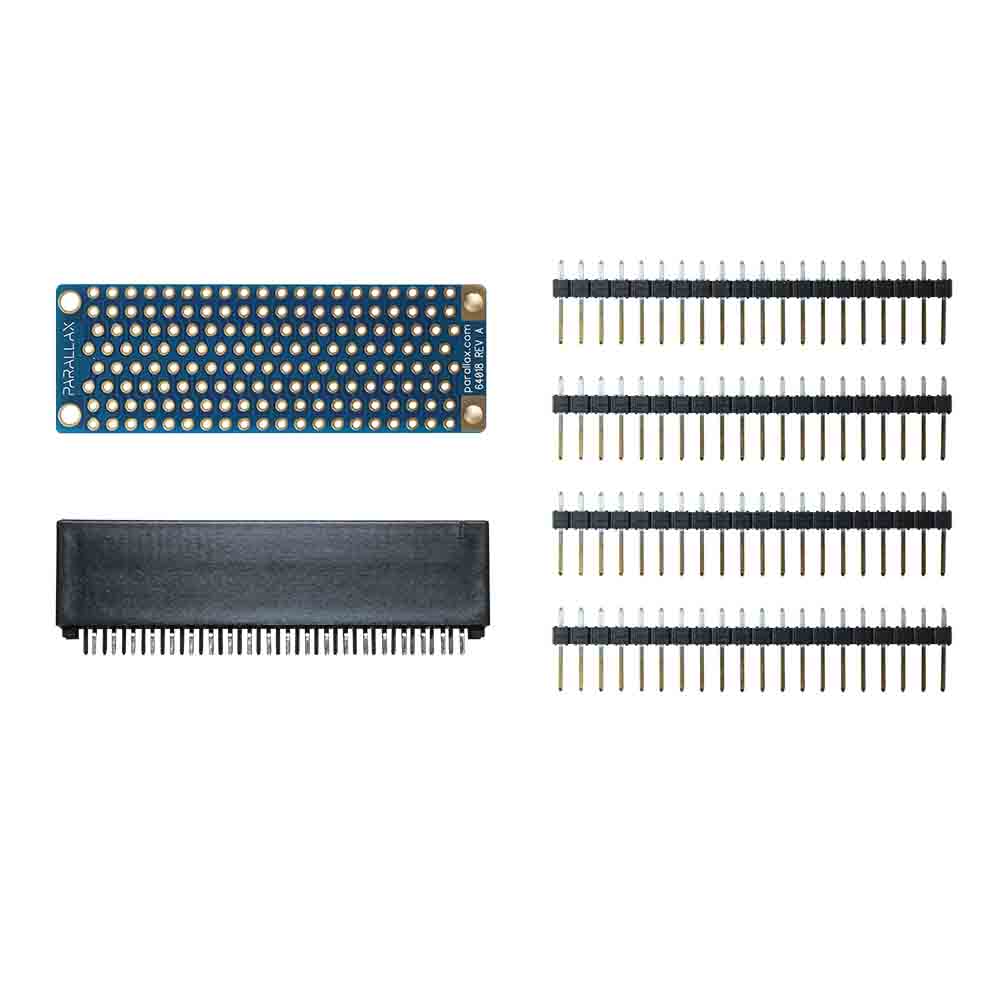

P2 Edge 80-pin Adapter Kit Contents:

• (1) P2 Edge 80-pin Adapter PCB (#300-64018)
• (4) 20-pin Headers, 0.1: spacing (#450-00307)
• (1) 80-pin Edge Connector Socket - Vertical (#450-00310)

RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.

Resource Links

Propeller 2 Documentation
