MPU 9DOF Click
Available in stock (12)
MPU 9DOF Click Overview:
Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter.

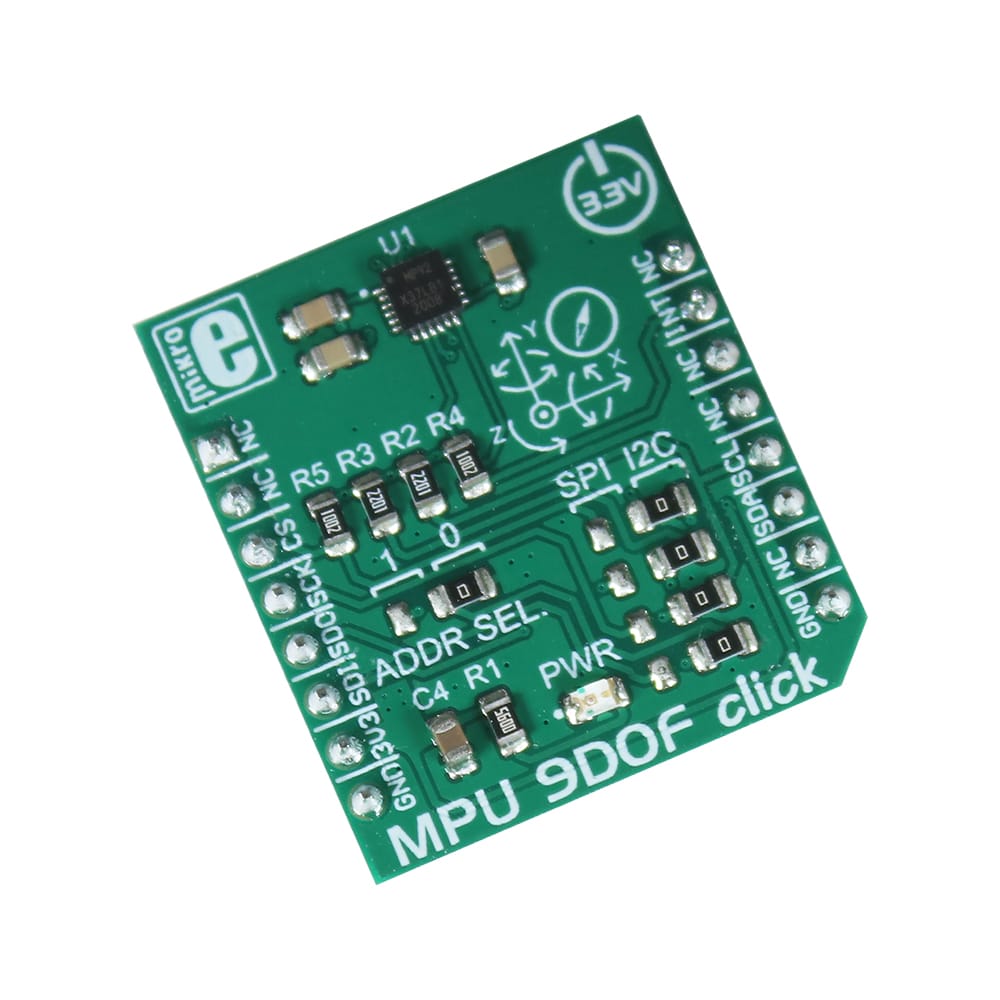

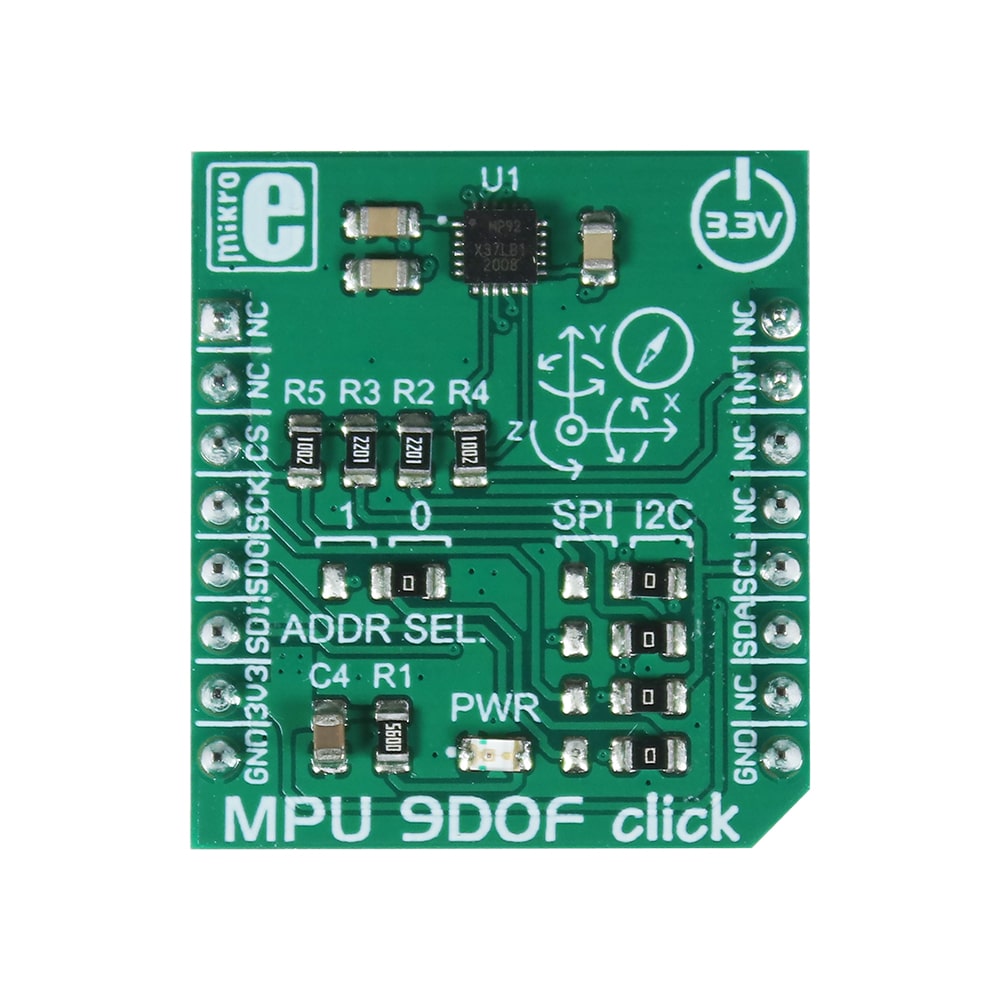

MPU 9DOF click carries the MPU–9250 System in Package, which is the world’s first 9-axis Motion Tracking device. MPU–9250 comprises two chips. One is the MPU–6050 that contains a 3-axis accelerometer, a 3-axis gyroscope, and a DMP (digital motion processor); the other is AK8975, a 3-axis digital compass. It is designed for the low power, low cost, and high-performance requirements of consumer electronics equipment and wearable sensors. The ability to track motion in free space also makes MPU 9DOF click a suitable sensor for RC vehicles (e.g. quadcopters) and camera stabilization systems.
MPU 9DOF Click Specifications:
- Type: Motion, direction
- On-board modules: MPU-2950 and AK8975
- Input voltage: 3.3V
- Weight: 30g
For user manual and datasheet, see the manufacturer's product page.
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
