LSM6DSL Click

LSM6DSL Click Overview:

Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter.

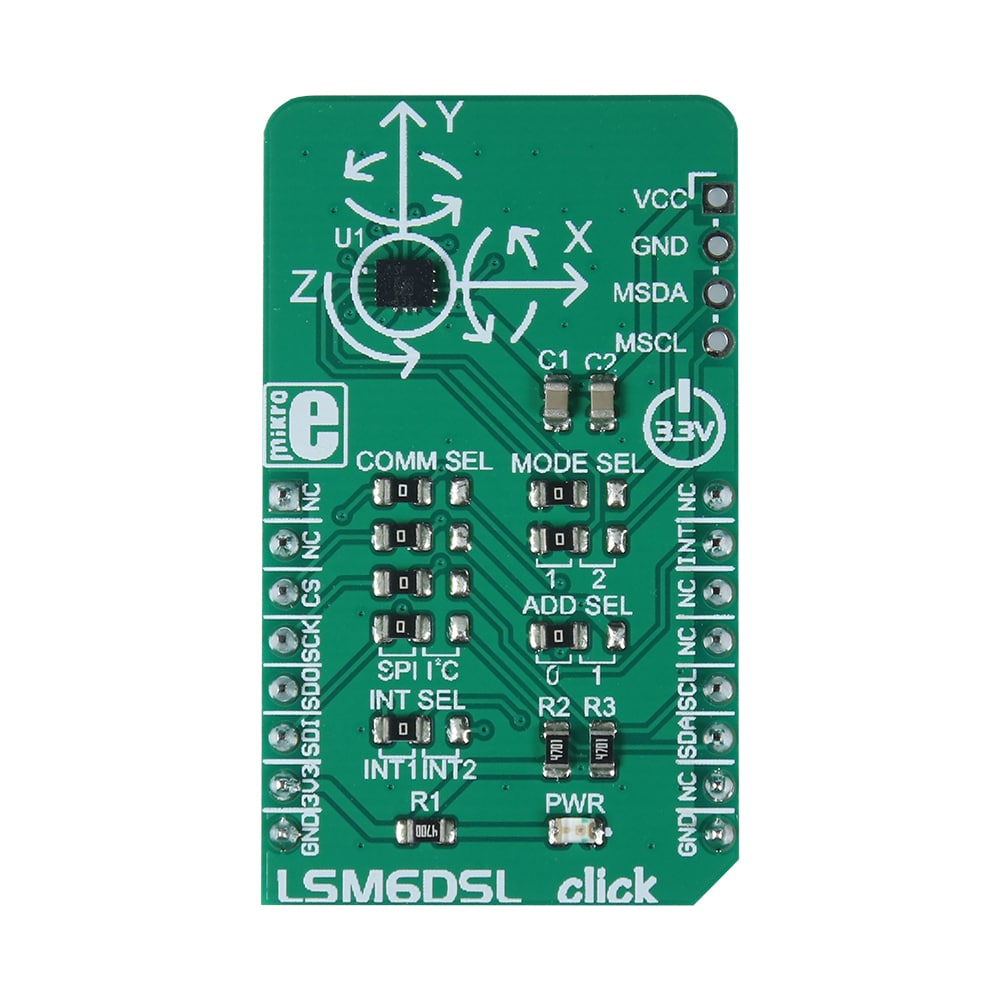

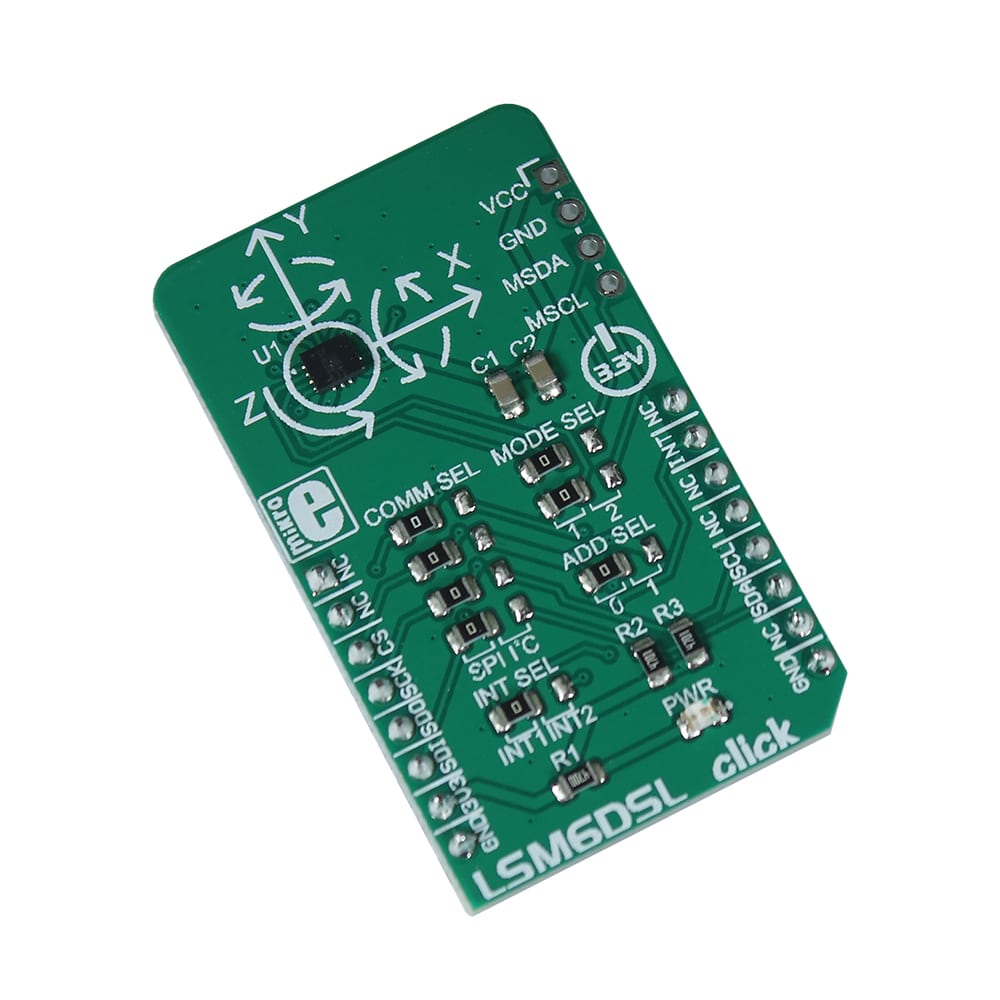

LSM6DSL click measures linear and angular velocity with six degrees of freedom. It carries the LSM6DSL high-performance 3-axis digital accelerometer and 3-axis digital gyroscope. The click is designed to run on a 3.3V power supply. LSM6DSL click communicates with the target microcontroller over SPI or I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line. It features two modes.

Mode 1:I2C slave or or SPI serial interface is available

Mode 2: I2C slave interface, or SPI serial interface and I2C interface master for external sensor connections, are available.

The event-detection interrupts enable efficient and reliable motion tracking and contextual awareness, implementing hardware recognition of free-fall events, 6D orientation, click and double-click sensing, activity or inactivity, and wakeup events.

LSM6DSL Click Applications:

• Motion tracking
• Gesture detection
• Indoor navigation
• Vibration monitoring and compensation

LSM6DSL Click Specifications:

• Type: Motion
• On-board modules: LSM6DSL
• Acceleration range: ±2/±4/±8/±16 g
• Angular rate range: ±125/±245/±500/±1000/±2000 dps
• Input Voltage: 3.3V
• Power consumption: 0.4 mA to 0.65 mA
• Interface: I2C,SPI
• Compatibility: mikroBUS
• Click board size: M (42.9 x 25.4 mm)
• Weight: 18g

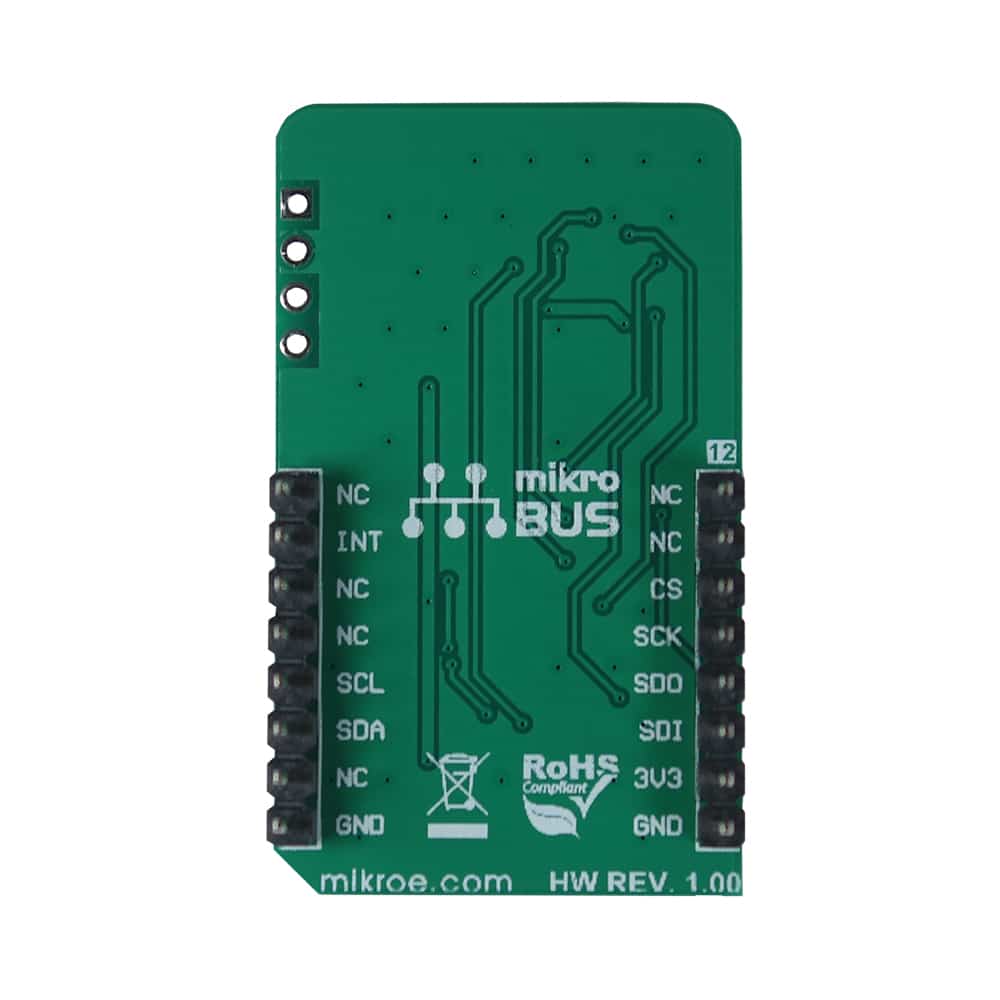

For pinout diagram, jumper settings, see the manufacturer's product page.
