The Do-It-Yourself Breadboard Circuits kit is an introductory set of circuits students can build without any coding or computer requirements. With a bag of wires, LEDs, pushbuttons, buzzer and photoresistor, seven complete projects can be assembled. The breadboard is the same version used on all Parallax boards, providing a focused environment that fosters transferable skills to robot building. The instructions for these projects are available under the Downloads and Resources Tab.
CYBER.ORG DIY Breadboard Circuits Kit Features:
- Interactive circuits use light, touch, and sound
- All components included for seven different activities, even the battery
- Peel and stick the breadboard to the insert card for handy row/column labels
- No computer programming needed
NOTE: Contains lithium coin-cell battery; UPS Shipping Only

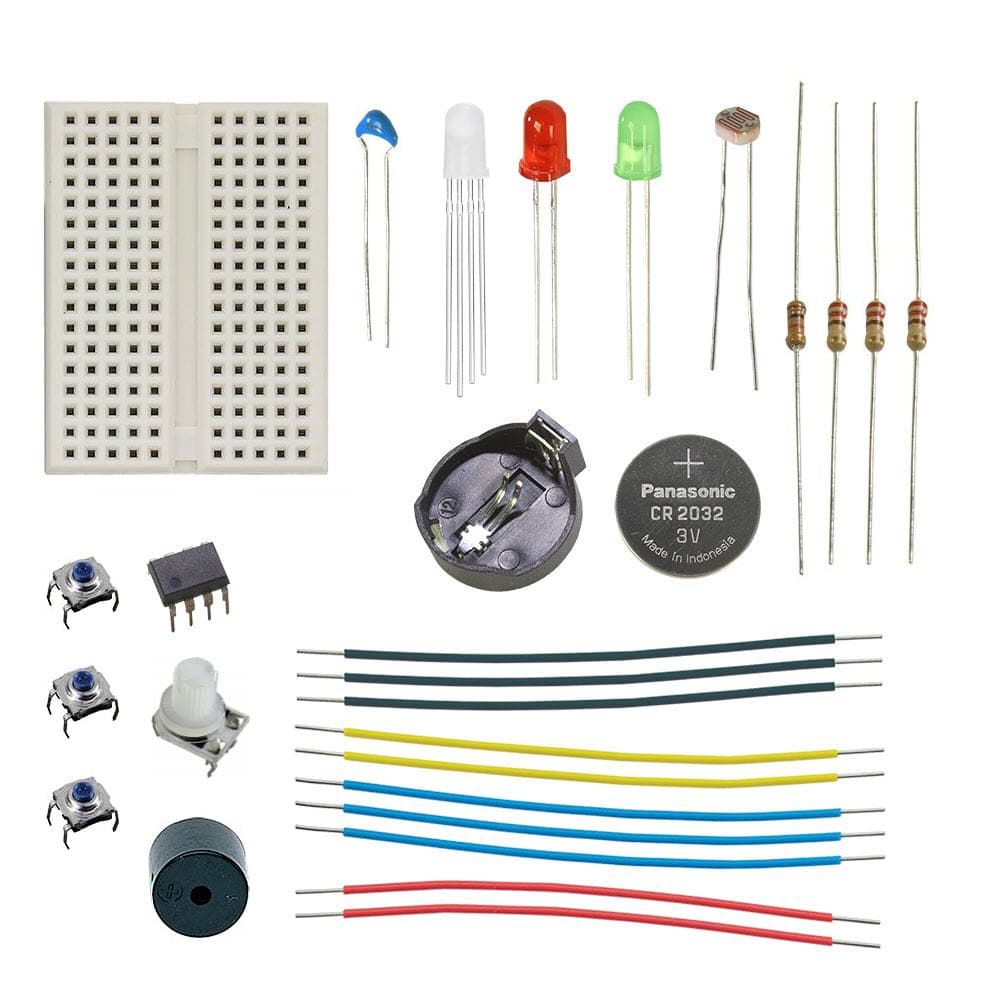

CYBER.ORG DIY Breadboard Circuits Kit Contents:
- (1) - Resistor, 1 kΩ (#150-01020)
- (3) - Resistor, 220 Ω (#150-02210)
- (1) - Potentiometer, 10 kΩ (#152-01031)
- (1) - Capacitor, 4.7 µF (#200-01062)
- (1) - LED, Green (#350-00001)
- (1) - LED, Red (#350-00006)
- (1) - Photoresistor, 27-60 kΩ (#350-00062)
- (1) - RGB LED (#350-00150)
- (3) - Pushbutton (#400-00002)
- (1) - 555 Timer IC, low voltage (#604-00068)
- (1) - Breadboard, small (#700-00012)
- (1) - CR2032 Coin-cell Battery (#752-00004)
- (1) - Battery holder, CR2032 (#753-00011)
- (1) - 3” Jumper Wires, bag of 10 (#800-00016)
- (1) - Piezospeaker (#900-00001)
- (1) - NICERC DIY Circuit Kit Card (#123-81038)
