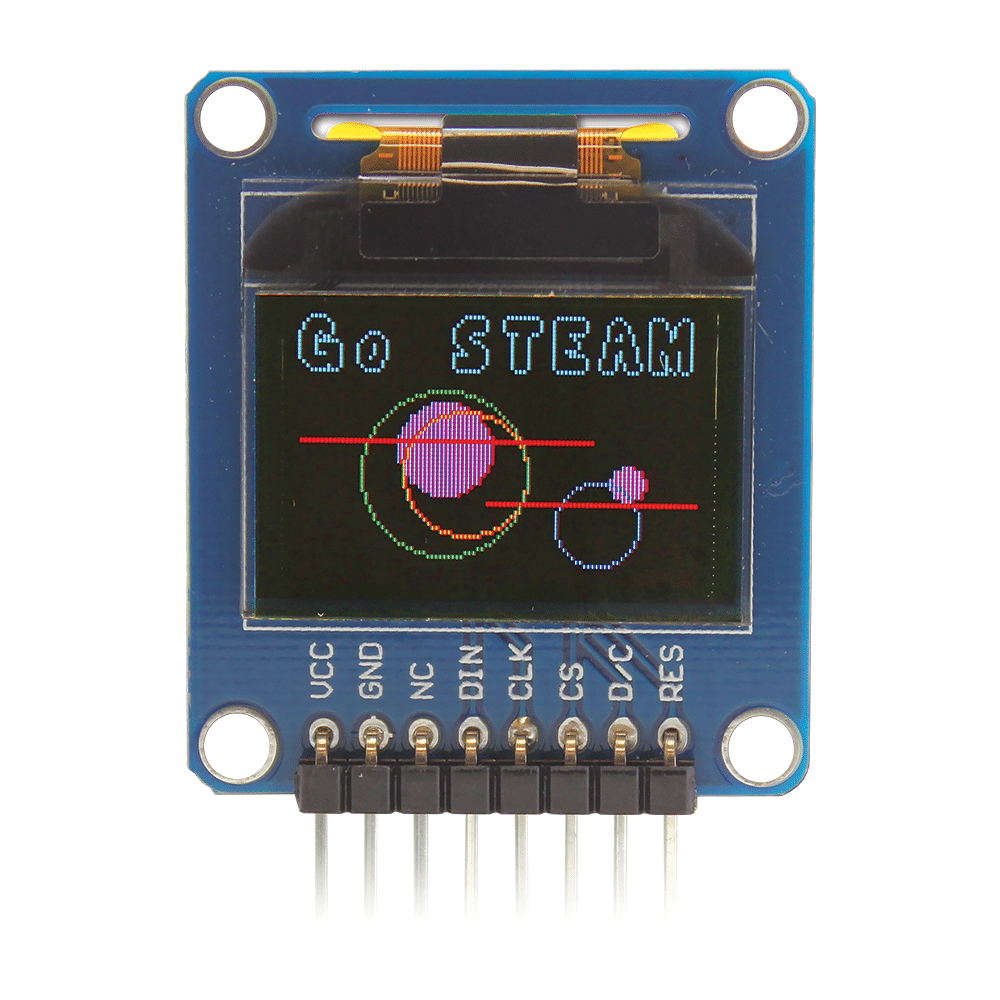

The 96x64 Color OLED display is perfect for displaying graphics, text, and images in bright, beautiful colors. Use it on its own to enjoy the graphics, or as part of a bigger project to display information to the user. It's a great accessory for Propeller or Arduino based STEM or STEAM projects.

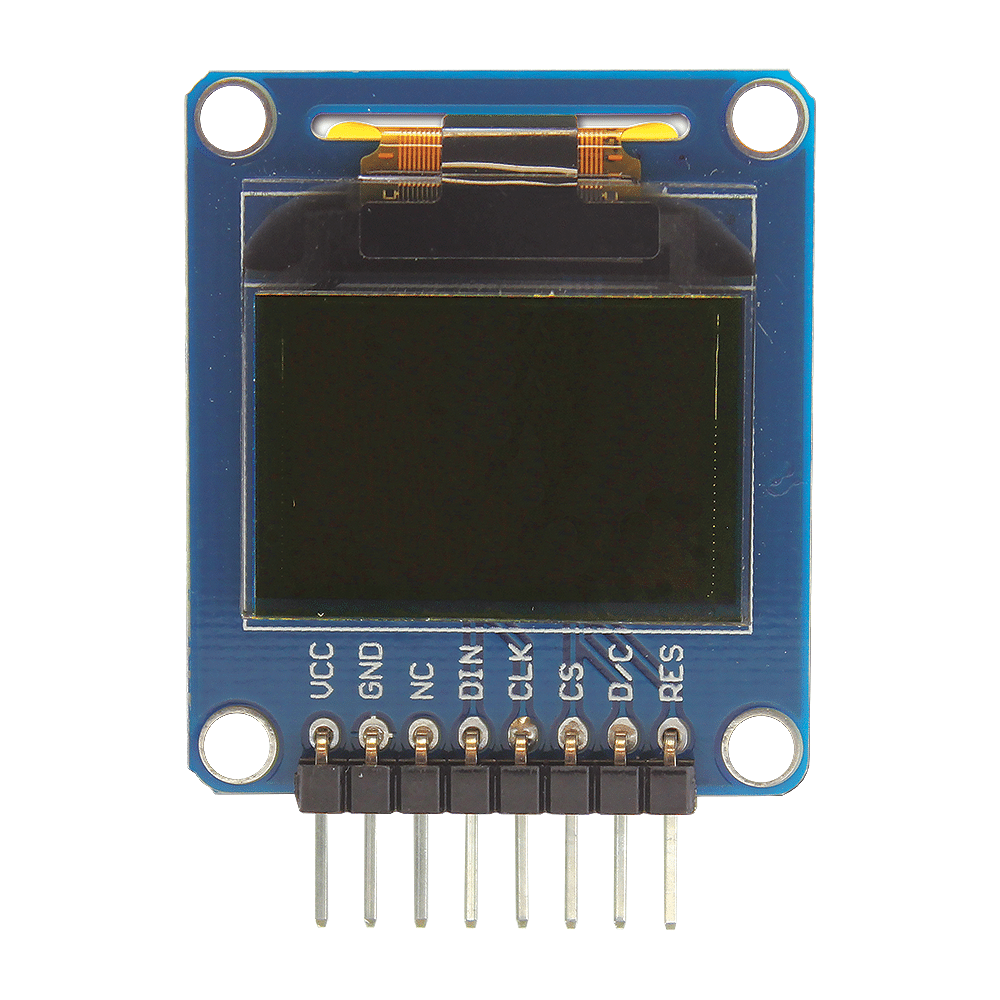

The display portion of the OLED module measures 0.95" diagonal and contains 96 x 64 RGB pixels. Each pixel can be set with 16 bits of resolution for a large range of colors. OLED technology does not require a backlight, which results in a colorful, high contrast display.

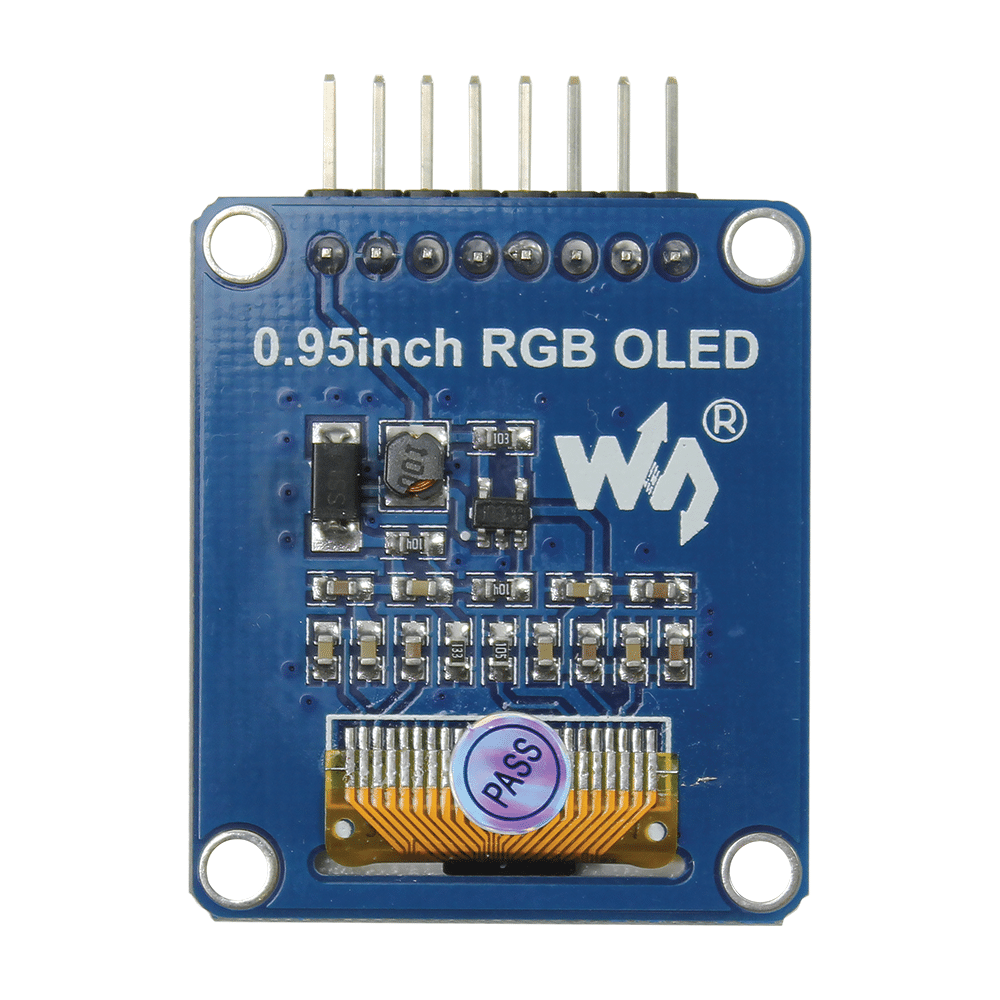

Your microcontroller can talk to the display's on-board SSD1331 driver chip using a 5-wire, write-only SPI interface. An on-board boost converter properly powers the display, which can be used with with either 3.3 or 5V logic levels.
Color OLED Display Module Features:
- OLED technology for high contrast and vivid colors
- Fully assembled, breadboard-friendly 7-pin SIP form factor
- Easy-to-use C libraries and Spin object for the Propeller Microcontroller
- Supported by BlocklyProp graphical programming tutorials
- Four mounting holes for installation in permanent projects
Application Ideas:
- Information readout
- Sensor module display
- Handheld game console screen
