Brushless 3 Click

Brushless 3 Click Overview:

Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter.

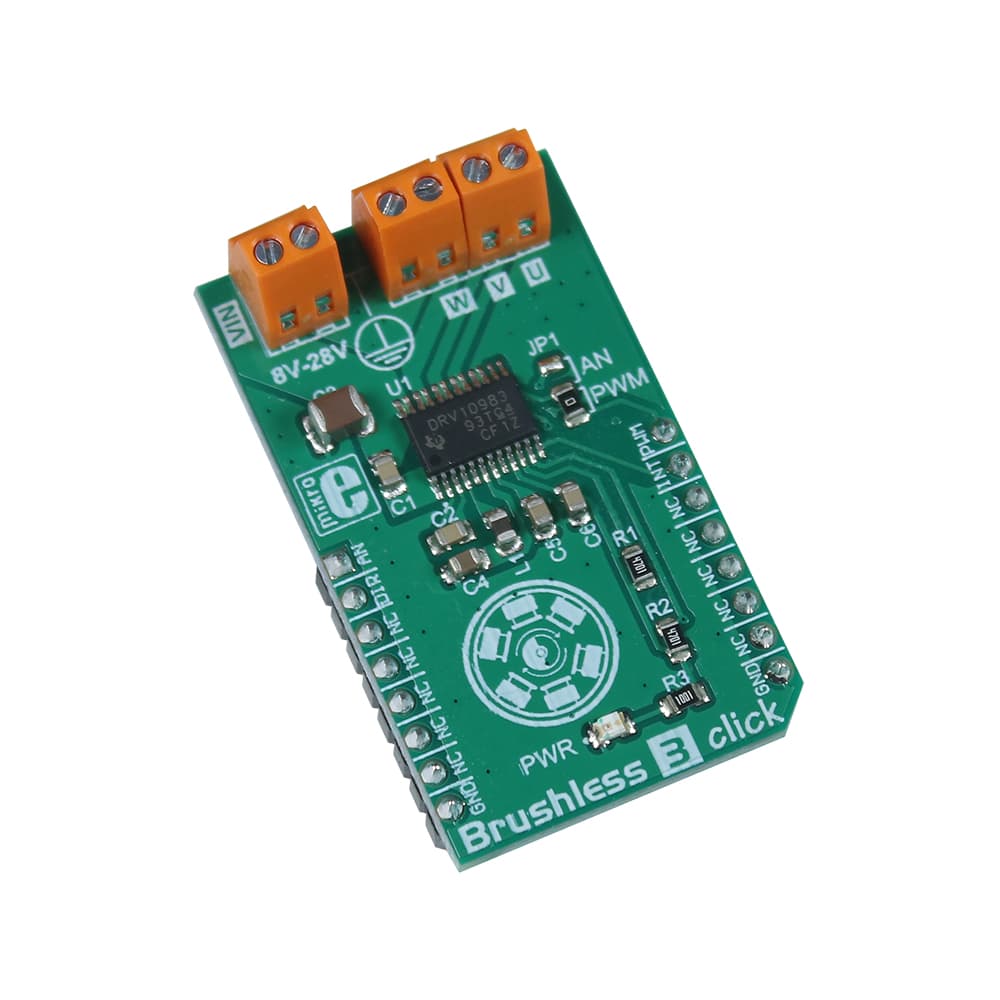

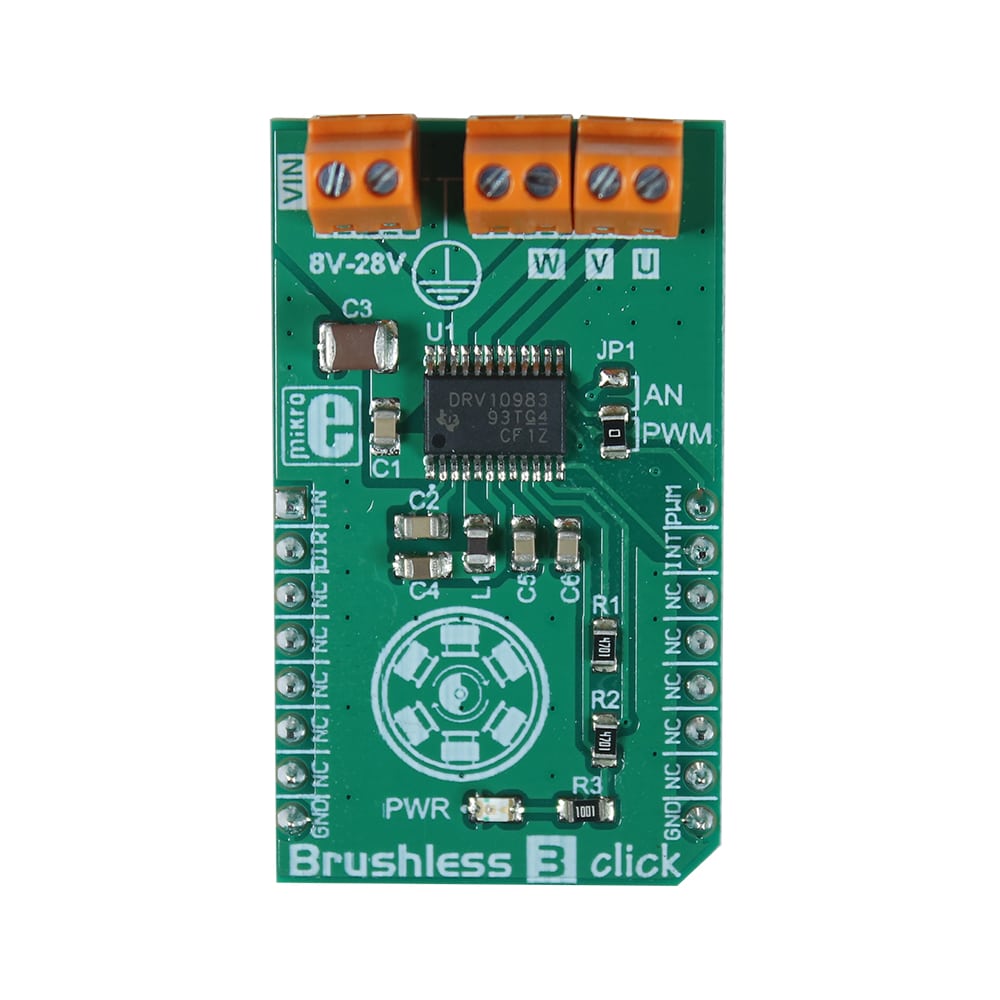

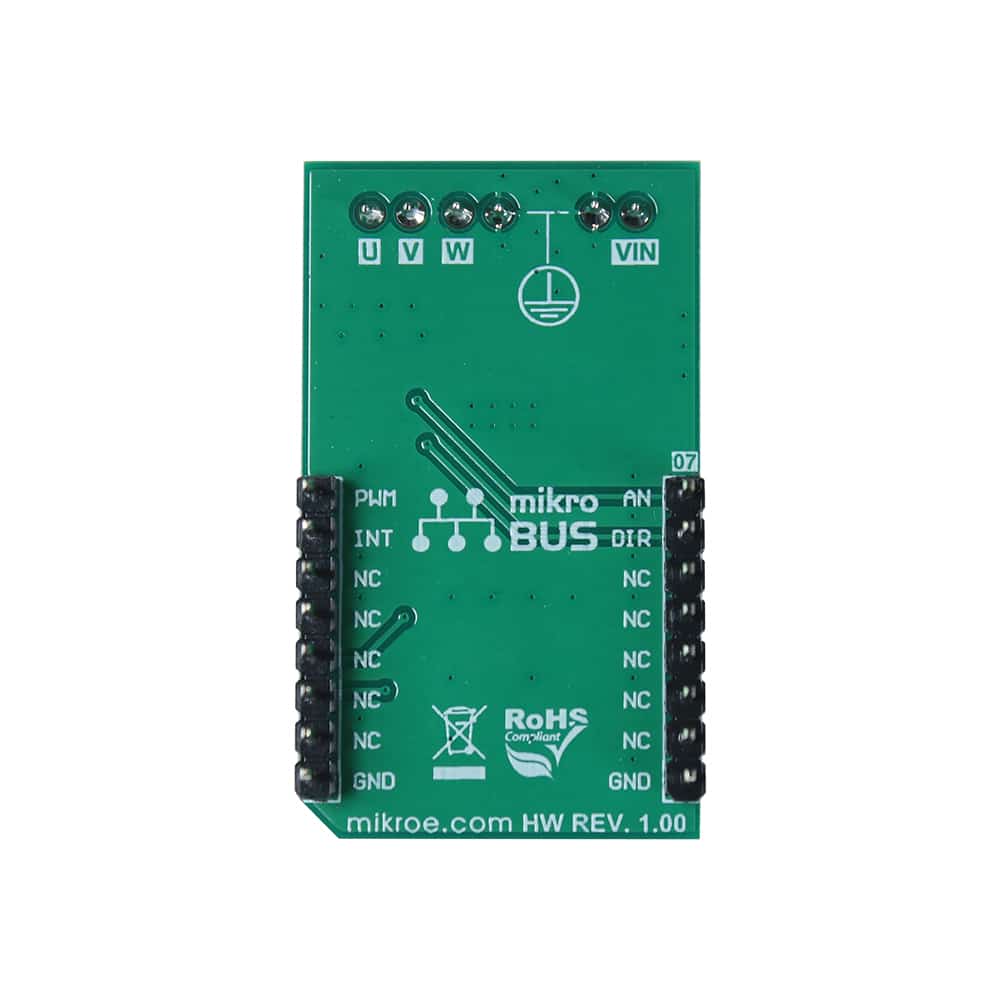

Brushless 3 click carries the DRV10983, a three-phase sensorless motor driver with integrated power MOSFETs. When an external power supply is applied, you can drive a brushless DC motor through the PWM pin, AN pin or I2C interface. It communicates with the target microcontroller over I2C interface, with the additional functionality provided by the following pins on the mikroBUS™ line: PWM, AN, INT, RST.

The DRV10983 is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2A.

The DRV10983 uses a proprietary sensorless control scheme to provide continuous sinusoidal drive, which significantly reduces the pure tone acoustics that typically occurs as a result of commutation.

The interface to the device is designed to be simple and flexible. The motor can be controlled directly through PWM, analog, or I2C inputs. Motor speed feedback is available through either the FG pin or I2C.

Brushless 3 Click Applications:

• Automotive industry
• Drones
• computer systems
• Medical equipment
• HVAC systems
• Small home appliances
• Robotics

Brushless 3 Click Specifications:

• Type: Brushless
• On-board modules: DRV10983, a three-phase sensorless motor driver with integrated power MOSFETs
• Key Features: Input voltage range from 8V to 28V
• Interface: GPIO,I2C
• Compatibility: mikroBUS
• Click board size: M (42.9 x 25.4 mm)
• Input Voltage: External
• Weight: 19g

A 3 wire BLDC motor can be connected over the screw terminals. See the manufacturer's product page for pinout diagrams, schematics, and datasheets.
