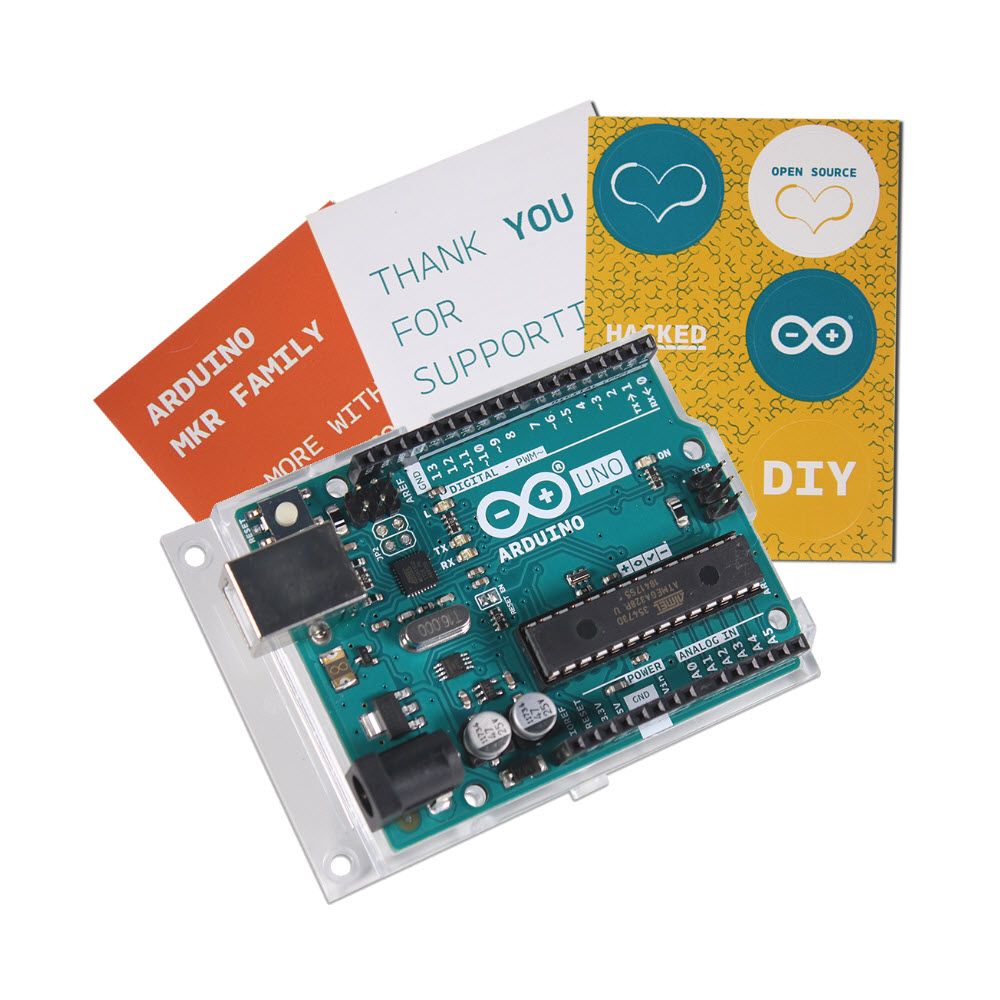

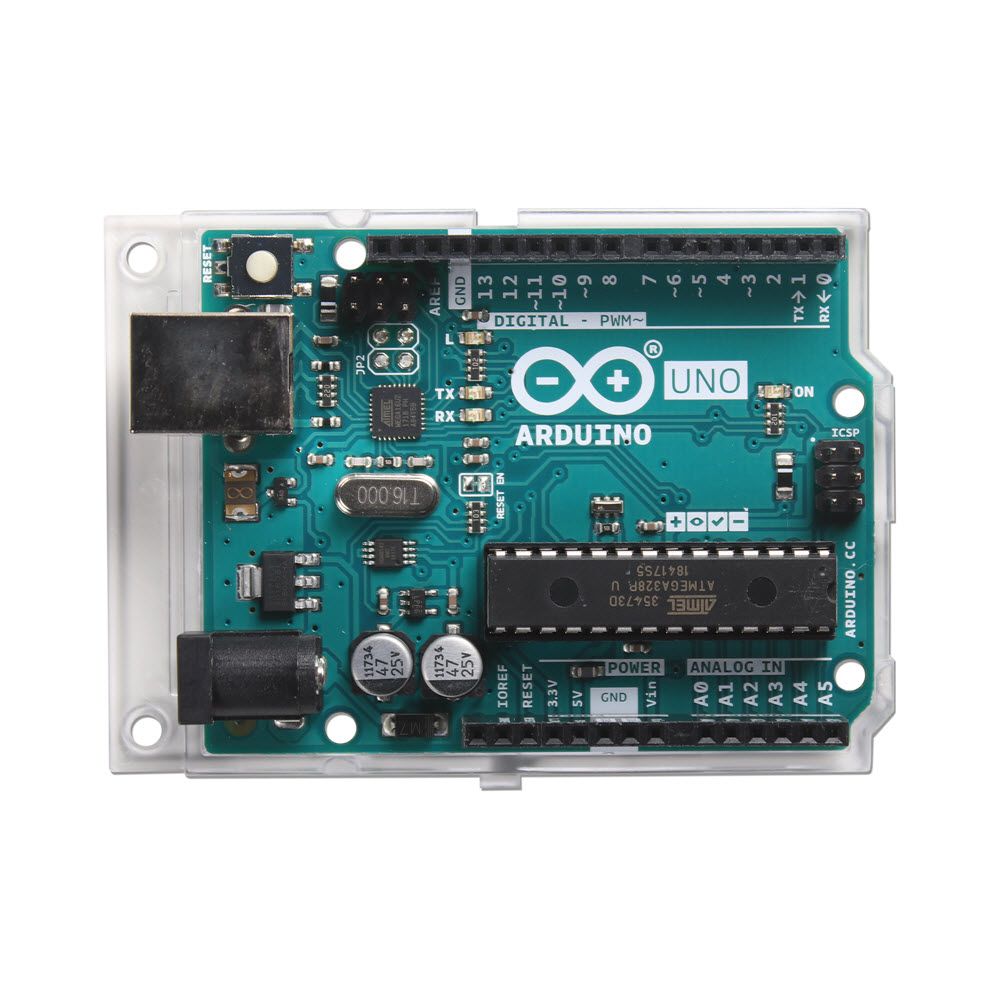

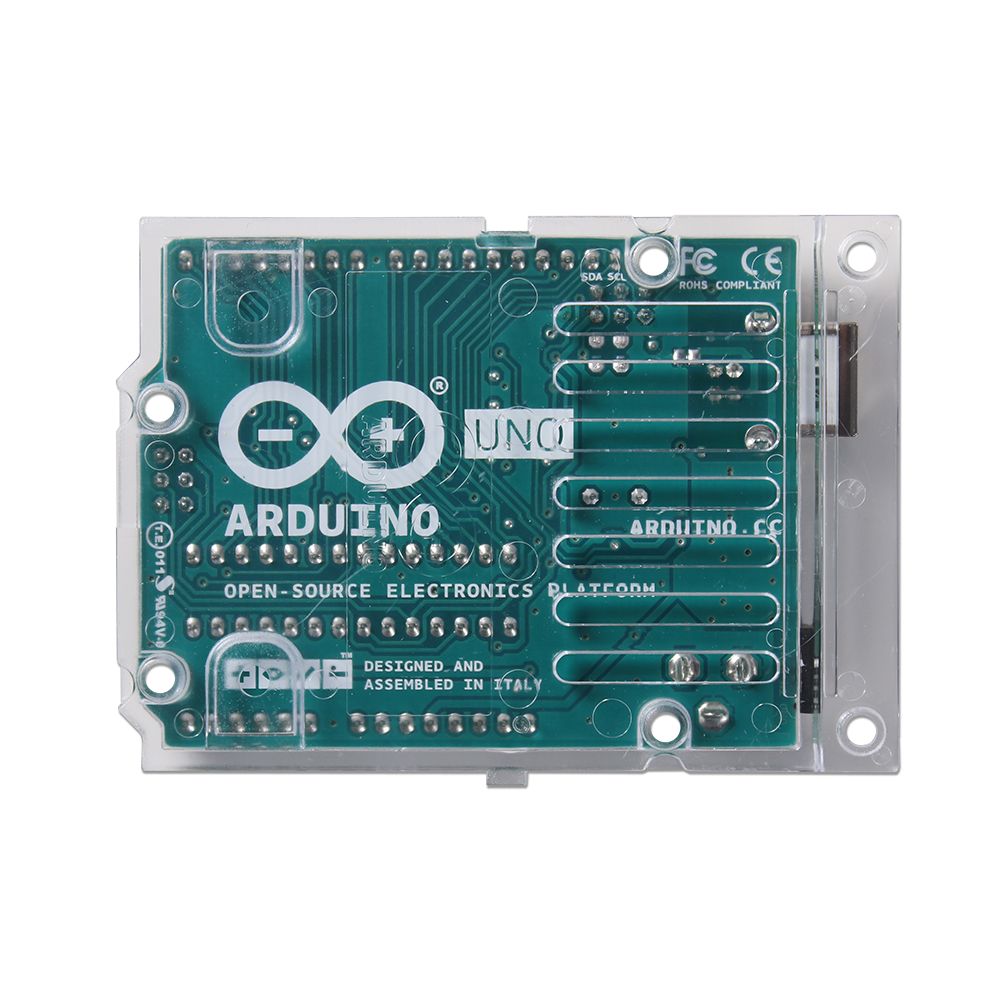

The Arduino Uno microcontroller module, designed and assembled in Italy, is the brain of our popular Shield-Bot educational robots. We offer it here as a replenishment item for our related kits. Our tutorial for the Shield-Bot robot, "Robotics with the Board of Education Shield for Arduino" and its assesment material have been certified as California A-G curriculum (see the Additional Resources tab below). In addition, we offer Arduino code for many Parallax sensors and accessories.
Arduino Uno Features:
- Fits the Parallax Board of Education Shield
- Based on the ATmega328P
- 14 GPIO (6 PWM capable) and 6 analog inputs -see Details tab below for more
- Programmable via Windows, Mac, and Chromebook*
Program the Shield-Bot with Arduino IDE on Windows & Mac; Arduino Web Editor and Codebender are both options for Chromebook.
Arduino Uno Specifications:
- Microcontroller: ATmega328P
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- Analog Input Pins: 6
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM: 2 KB (ATmega328P)
- EEPROM: 1 KB (ATmega328P)
- Clock Speed: 16 MHz
- LED_BUILTIN: 13
- Length: 68.6 mm
- Width: 53.4 mm
- Weight: 25 g
