80-pin Edge Connector Socket, Straight, SMT

80-pin Edge Connector Socket, Straight, SMT Overview:

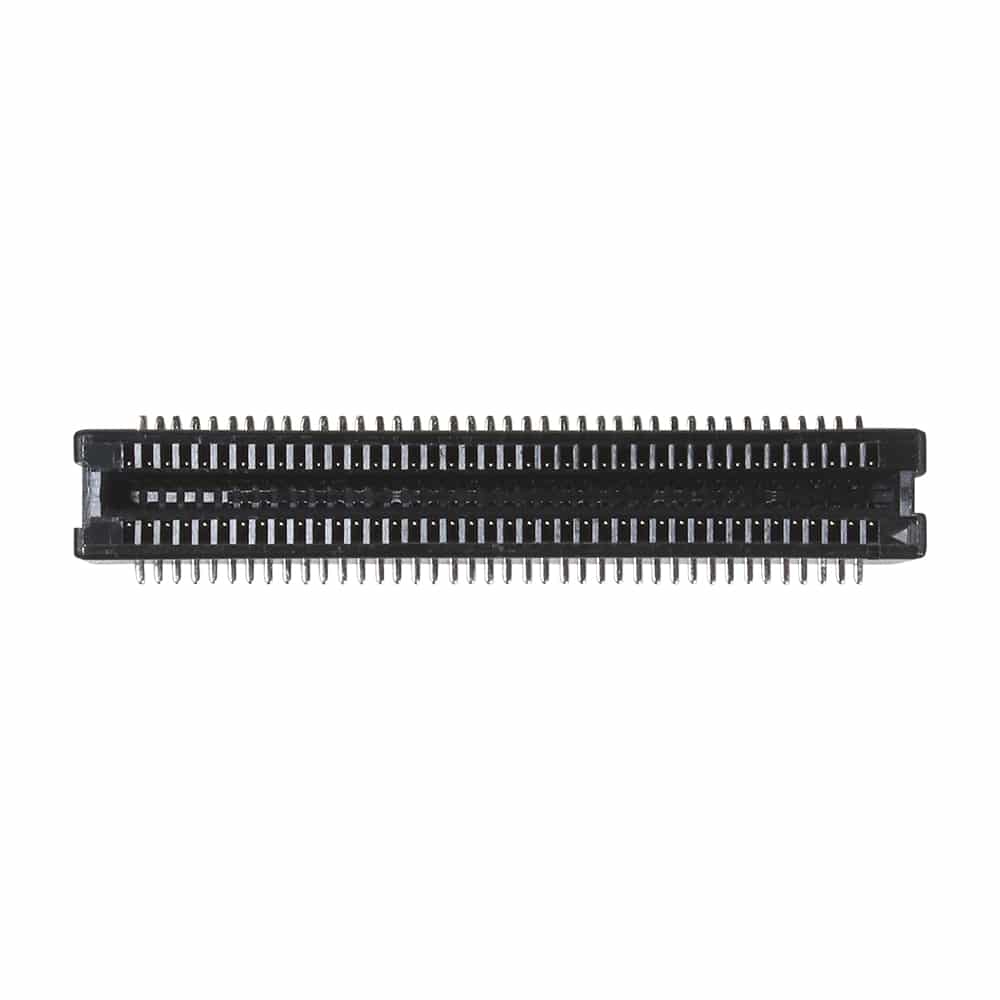

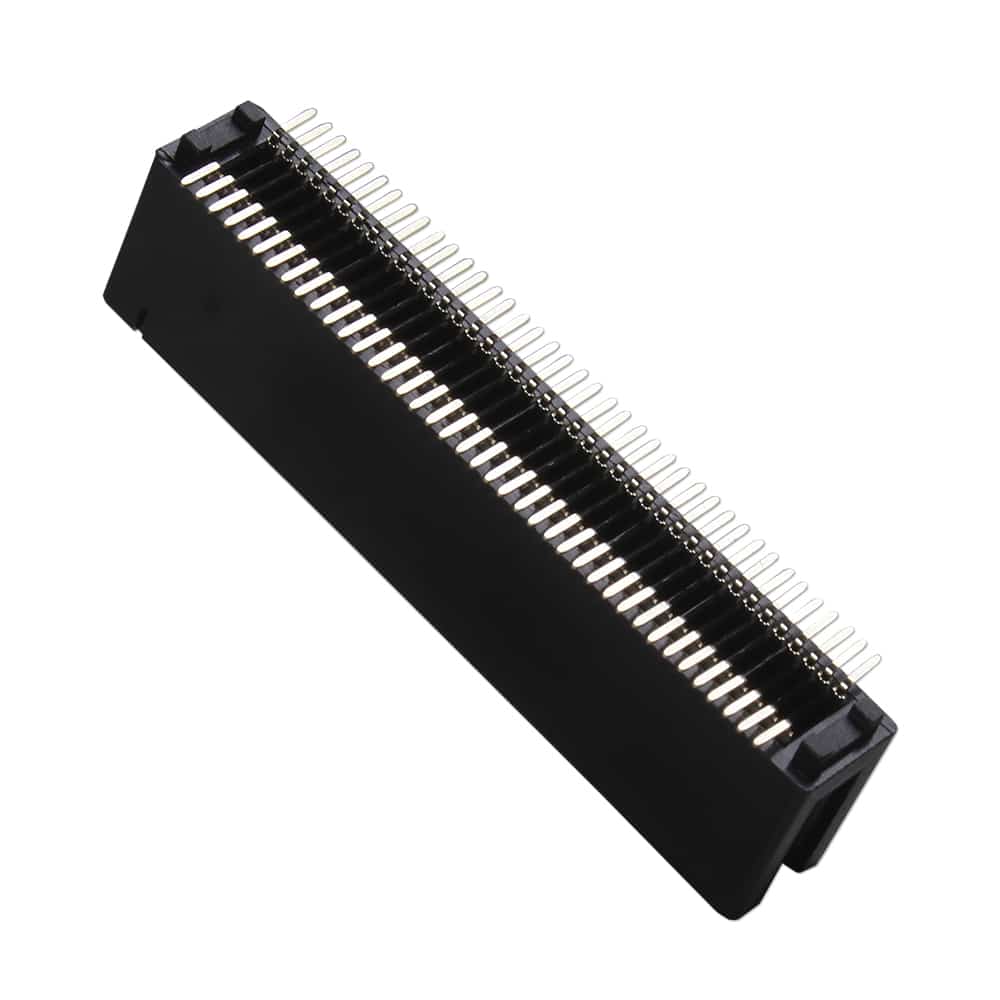

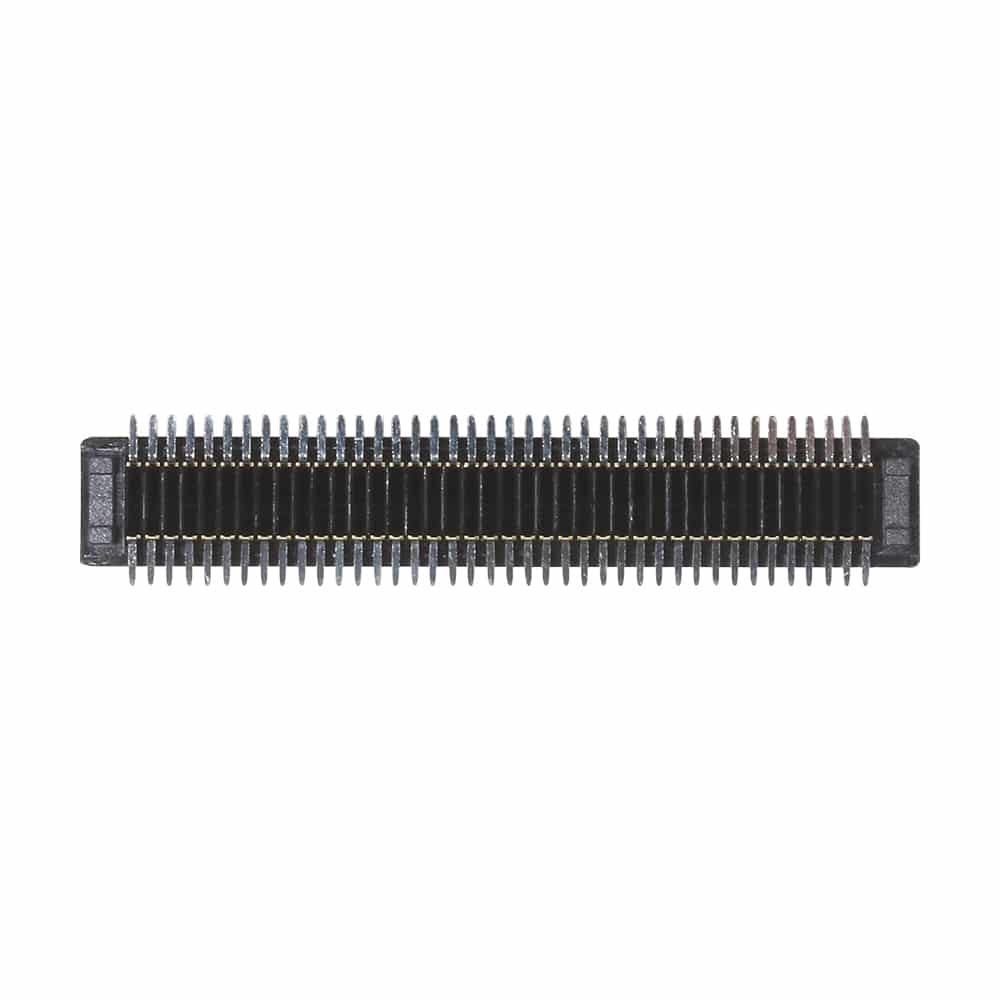

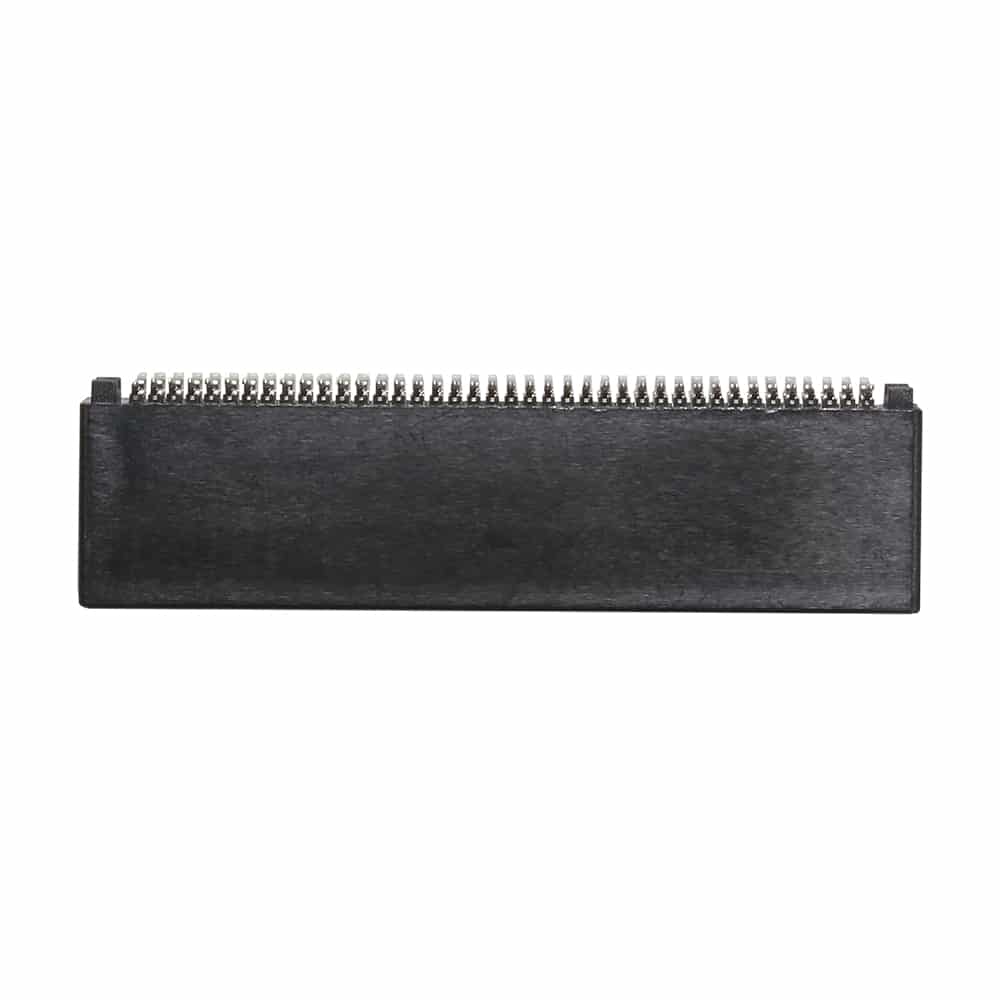

This surface-mount, 80-way edge socket with 1.27 mm spacing holds the P2 Edge Module (#P2-EC) in a vertical orientation on a printed circuit board. This is a low-insertion-force connector which securely holds the P2 Edge Module in place. Alternatively, vertical through-hole (#450-00310) and right-angle through-hole (#450-00308) versions are also available. The printed circuit board pattern varies between the various connectors but the socket springs and spacing for the P2 Edge Module are identical.

Features:

• Quick and secure project mounting for the P2 Edge Module
• Low-cost, quality design for volume applications
• Socket the P2 Edge Module to allow a lower-cost 2-layer printed circuit board

Application:

• Production component for mass manufacturing

80-pin Edge Connector Socket, Straight, SMT Specifications:

• Current rating: 1 Amp
• Voltage rating: 250V AC RMS
• Dielectric withstanding voltage: 500V AC RMS 60 Hz for one minute
• Contact resistance: 30 milli-ohms max at 1 A DC
• Insulation resistance: 1000 Mega-ohms min. At 500V DC
• Temperature range: -55C to +85C
• Contact: brass, gold flash on contact area, tin plated on solder tails, over nickel
• RoHS Compliant

RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
