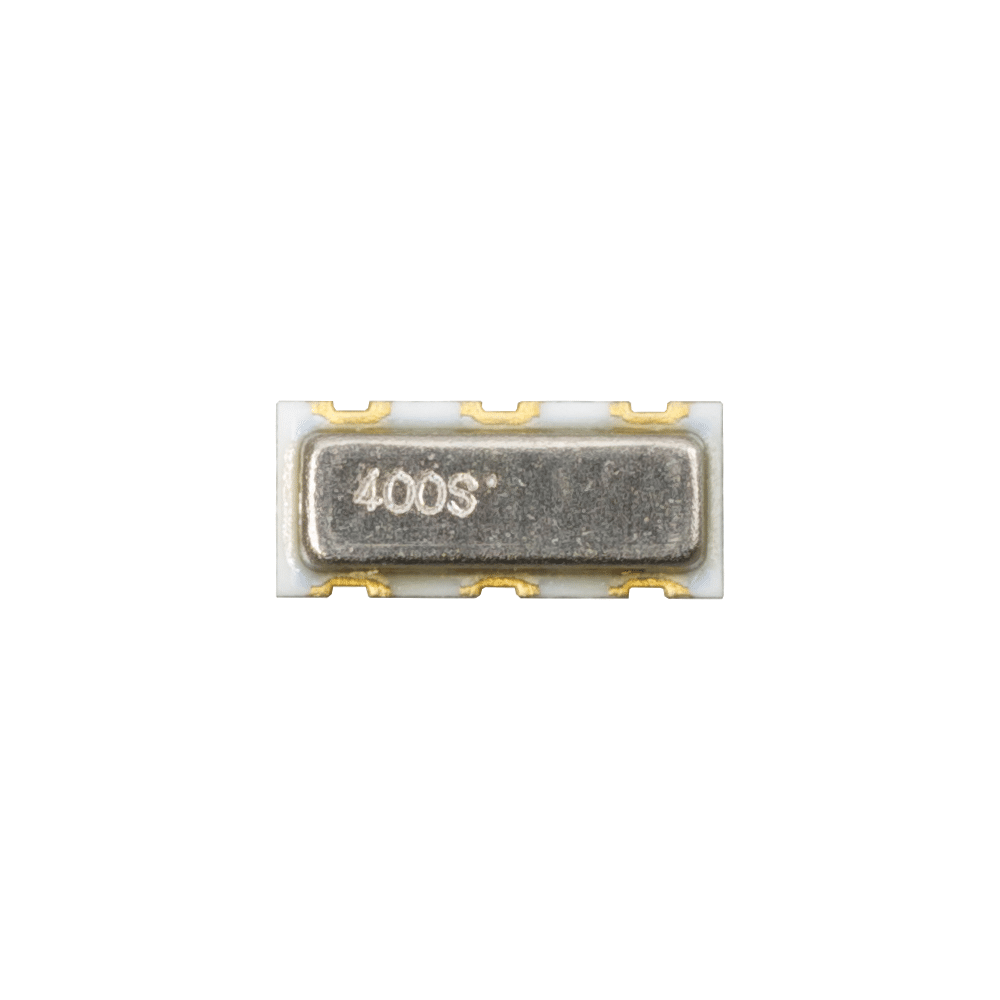

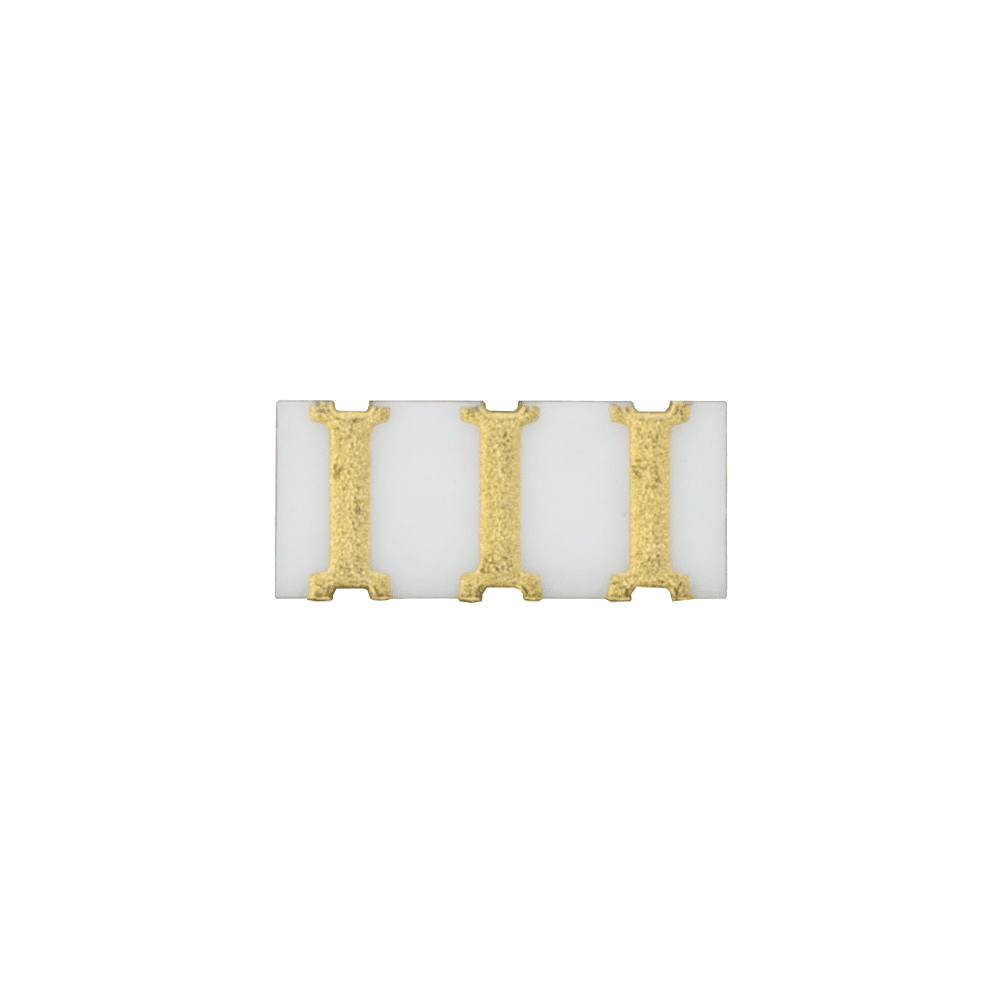

4 MHz Ceramic Resonator

Name: 4 MHz Ceramic Resonator
Brand: My Store
SKU: 250-14055
Price: 0.79 USD
Availability: InStock

SKU: 250-14055

$0.79

Shipping calculated at checkout.

Available in stock (84)

4 MHz Ceramic Resonator Overview:

This is a low-profile surface mount (SMD) ceramic resonator. It is used to control frequencies in electronic applications. Parallax uses this part in the BASIC Stamp 1 (#BS1-IC).

4 MHz Ceramic Resonator Key Features:

Built-in load capacitor
Tape & reel packaging

4 MHz Ceramic Resonator Specifications:

Frequency: 4 MHz
Frequency Accuracy: ± 0.5 % (@ 25°C)
Frequency Stability: ± 0.3 %
Built-In Capacitance: 30 pF
Insulation Resistance: 100 M ohm (@ 10 VDC)
Dimensions: 3.3 X 1.5 mm
Operating temperature range: -4 to +176 °F (-20 to +80 °C)

Downloads and Documentation

Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
