4-20 mA T Click
Hurry up, only 8 items left in stock.
4-20 mA T Click Overview:

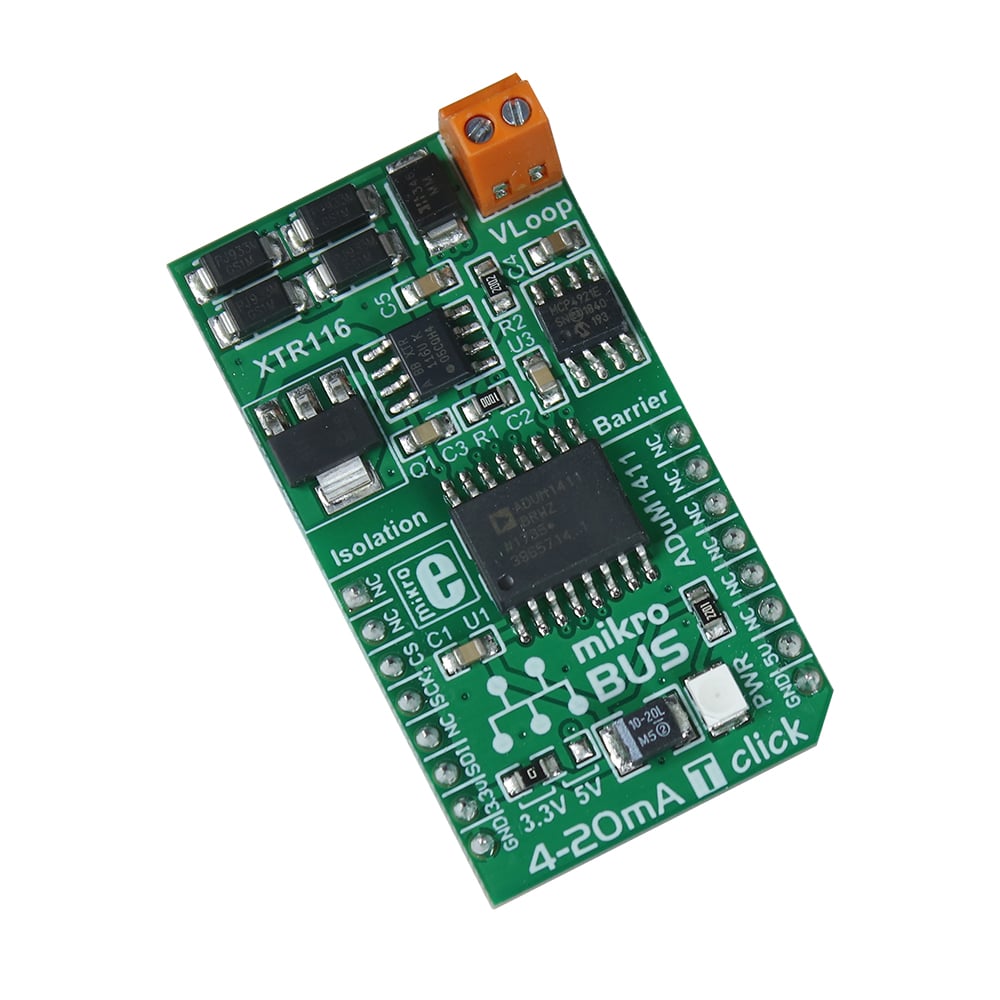

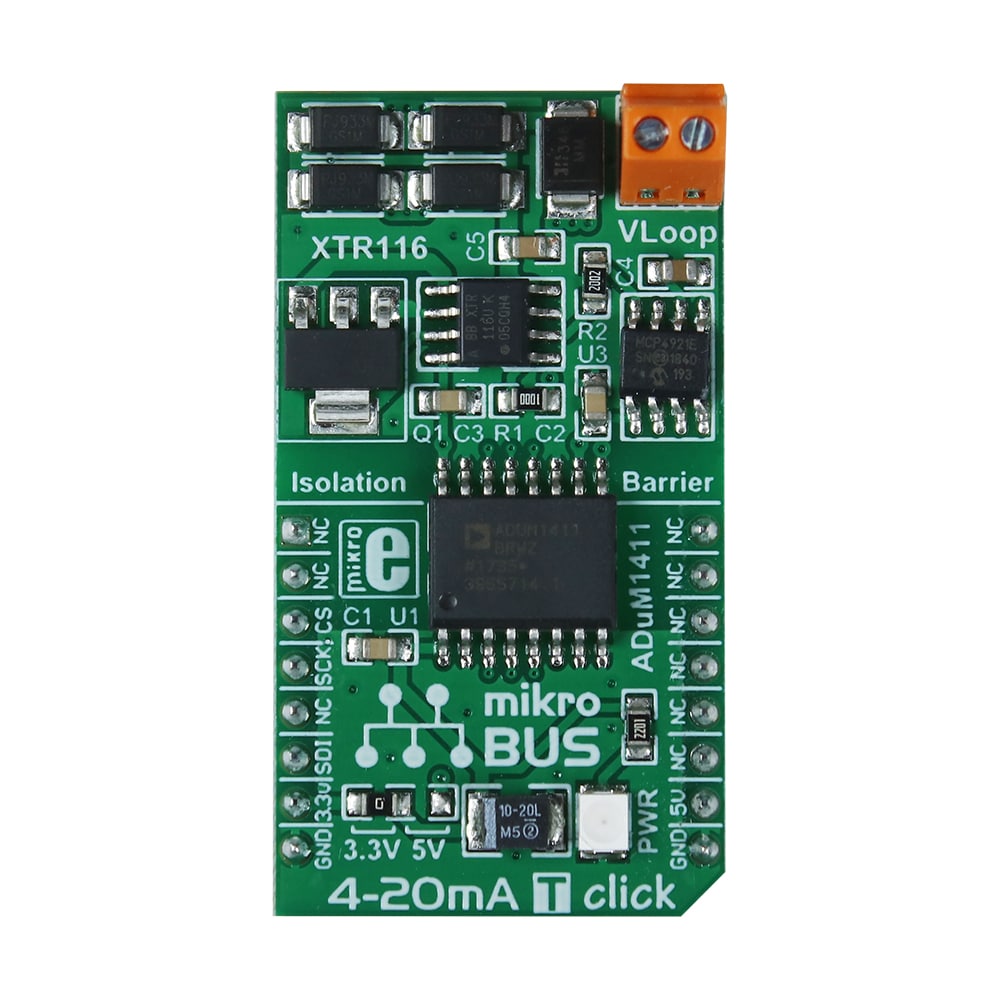

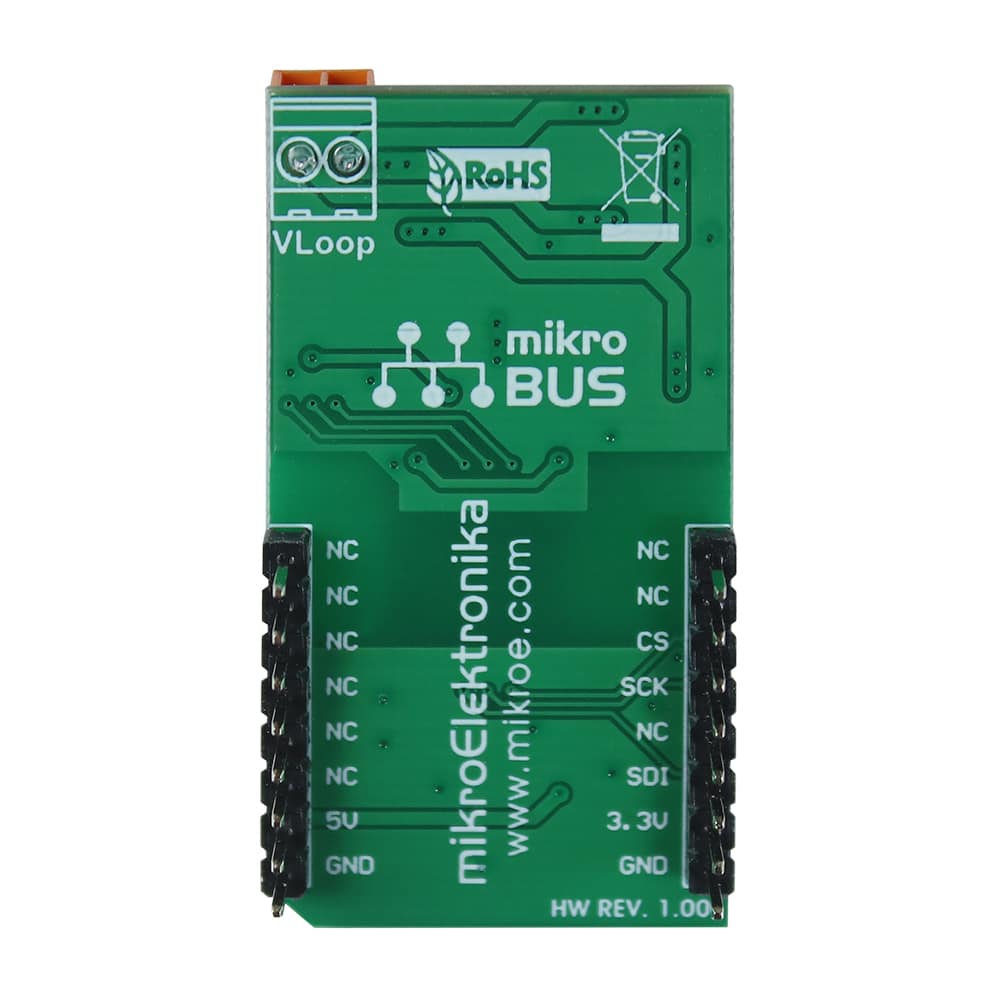

Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850+ Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter. 4-20mA T Click is an add-on board in mikroBUS form factor. It’s a compact and easy solution for adding 4-to-20mA industry standard communication protocol to your design. It features ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter. 4-20mA T Click™ communicates with target board microcontroller via three mikroBUS™ SPI lines (SDI, SCK, CS). Together with 4-20mA R Click™ this board forms a complete 4-to-20mA current loop standard. The board is designed to use 3.3V and 5V power supply. LED diode indicates the presence of power supply.
4-20 mA T Click Applications:
Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU
4-20 mA T Click Specifications:
- On-board modules: ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter
- Key Features: The board receives the input digital signal from the microcontroller and sets the output loop current (4-20mA)
- Interface: SPI
- Compatibility: mikroBUS
- Click board size: M (42.9 x 25.4 mm)
- Input Voltage: 3.3V or 5V
- Weight: 34g
Resource Links
- Manufacturer’s product page (Datasheet)
- Click 4-20ma Spin2 Object
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
