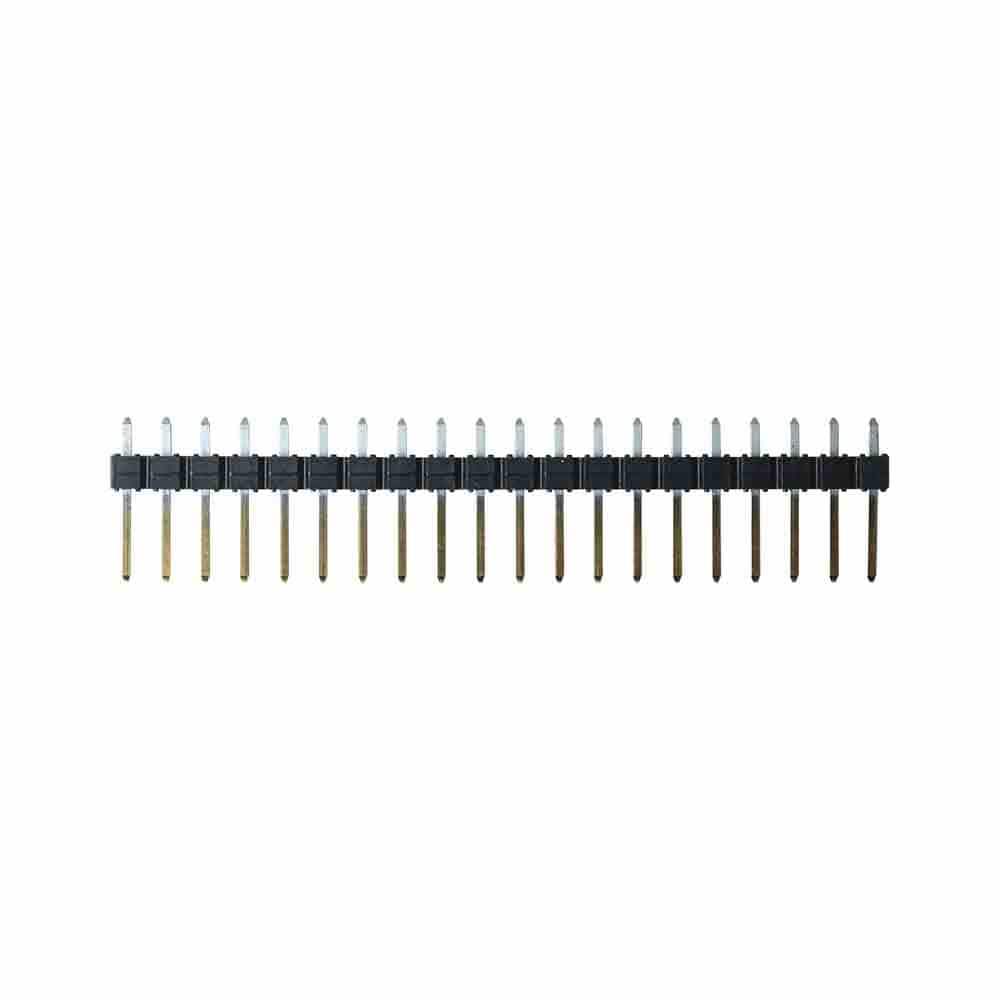

20-pin Straight Header, 0.1" Through-hole
Regular price
$1.95
Sale price
Regular price
Shipping calculated at checkout.
Available in stock (3130)
20-pin Straight Header, 0.1" Through-hole Overview:
This is a 20 position 0.100 in (2.54 mm) through-hole connector. It is used on the P2 Edge 80-pin Adapter (#64018) and the Edge I/O Adapter for Micro:bit (#32710). This part is also useful for soldering into any Parallax through-hole circuit board to allow connections to servo plugs, sensors, or female extension wires.
20-pin Straight Header, 0.1" Through-hole Specifications:
- Contact Type: Male Pin
- Pitch: Mating 0.100 in (2.54 mm)
- Number of Positions: 20
- Number of Rows: 1
- Contact Length: 0.230"" (5.84 mm)
- Contact Length: 0.095 in (2.41 mm)
- Overall Contact Length: 0.425 in (10.80 mm)
- Insulation Height: 0.100 in (2.54 mm)
- Contact Shape: Square
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
