Sensor Pack for the micro:bit
Hurry up, only 10 items left in stock.
Sensor Pack for the micro:bit:
"Sensors with the micro:bit"(in Python) is a series of web lessons designed to help the casual maker get started with building circuits and designing their own micro:bit-based inventions. We have the same content available to program with MakeCode block programming.
This kit has all the parts you need to add to your classroom's existing set of micro:bit GO or CLUB bundles.
Your micro:bit module connects to the kit's breadboard with the included Edge I/O Adapter. A variety of electronic parts support hands-on building with circuits common in many devices.
Kit Features:
- Use your classroom's micro:bit GO or CLUB bundles to teach circuit-building, electronics, and pre-engineering skills
- The Edge I/O Adapter makes it easy to extend micro:bit I/O pads to a breadboard for prototyping

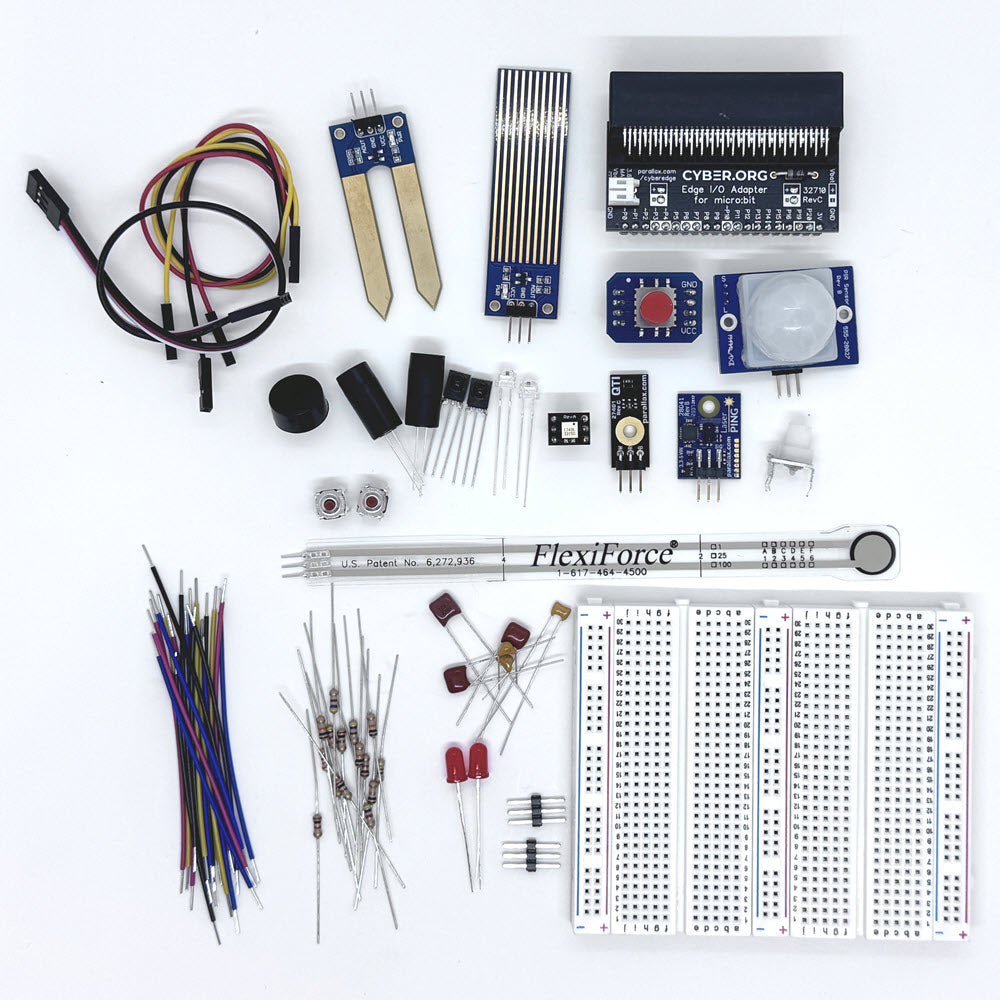

Kit Contents:

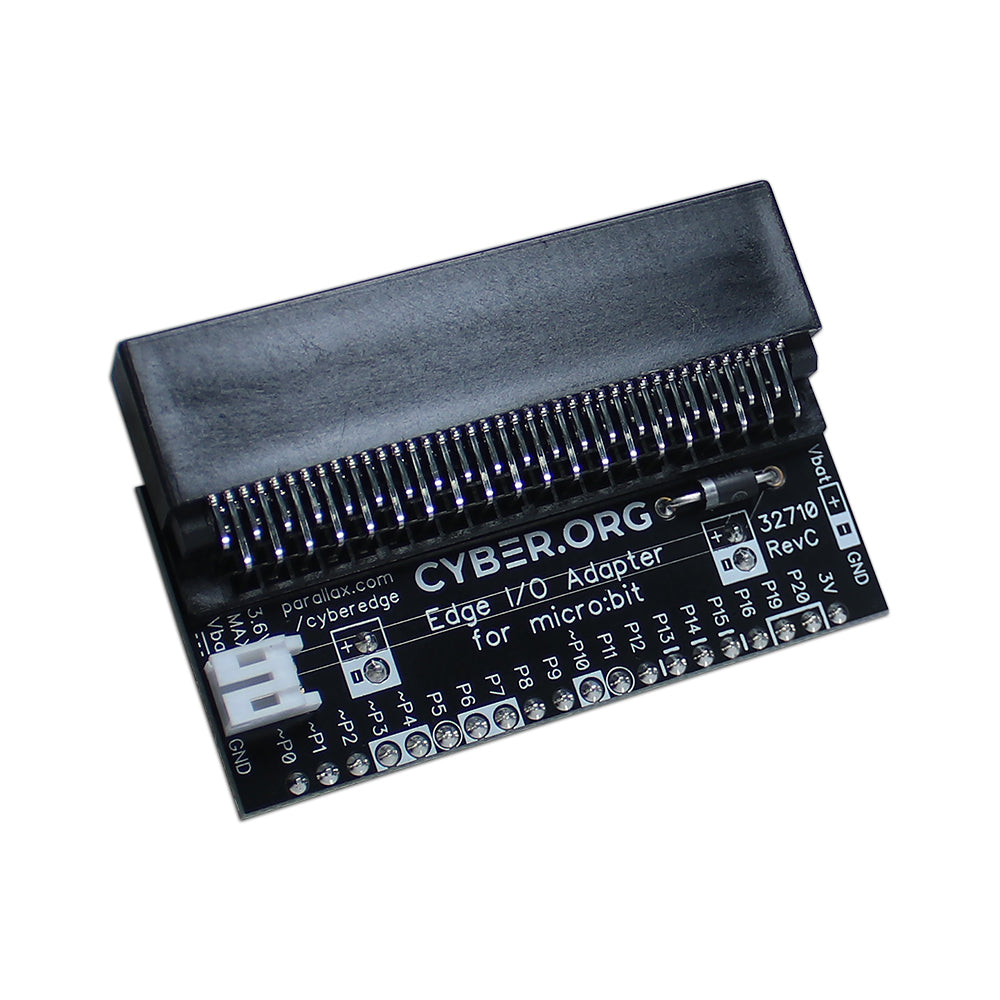

- (1) - Edge I/O Adapter compatible with BBC micro:bit (32710)
- (1) - Breadboard Set (700-32023)
- (1) - 5-Position Switch (27801)
- (1) - 4-Directional Tilt Sensor (28036)
- (1) - PIR Sensor with LED Signal (555-28027)
- (1) - Potentiometer (152-01031)

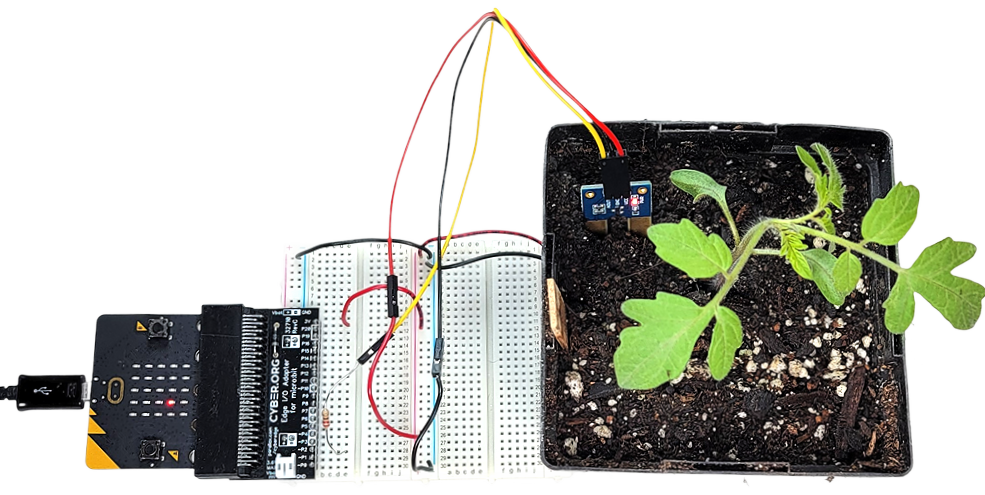

- (1) - Moisture Sensor Probe (28092) includes probe and harness
- (1) - Mini Liquid Level Sensor (28090) includes probe and harness
- (1) - 10 kΩ resistor (brown-black-orange-gold)
- (1) - 2 kΩ resistor (red-black-red-gold)
- (1) - LaserPING (28041)
- (1) - QTI module (555-27401)
- (1) - FlexiForce Sensor Demo Kit (30056)
- (1) - Phototransistor (350-00029)

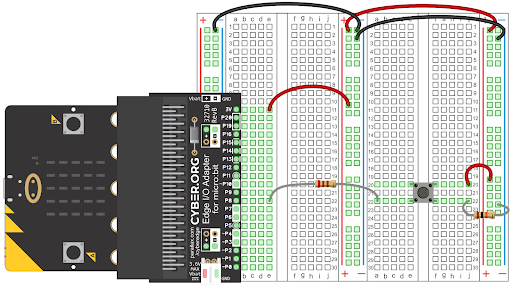

- (1) - Tact Switch (400-00002)
- (1) - LED shield (350-90005)
- (1) - LED standoff (350-90004)
- (1) - IR LED (350-00003)
- (1) - IR Receiver (350-00056)
- (2) - 3″ Jumper Wires (1 bag of 10)
- (5) - Resistor 220 Ω (red-red-brown-gold)
- (1) - Resistor 10 kΩ (brown-black-orange-gold)
- (1) - Resistor 1 kΩ (brown-black-red-gold)
- (1) - Resistor 2 kΩ (red-black-red-gold)
- (1) - Jumper wire red black blue
- (1) - 0.01 µF capacitor (103)
- (1) - 0.1 µF capacitor (104)
- (1) - 2 kΩ resistor (red-black-red-gold
NOTE: micro:bit GO bundle is NOT included. Parts may vary as we expand the lessons over time.
Resource Links
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
