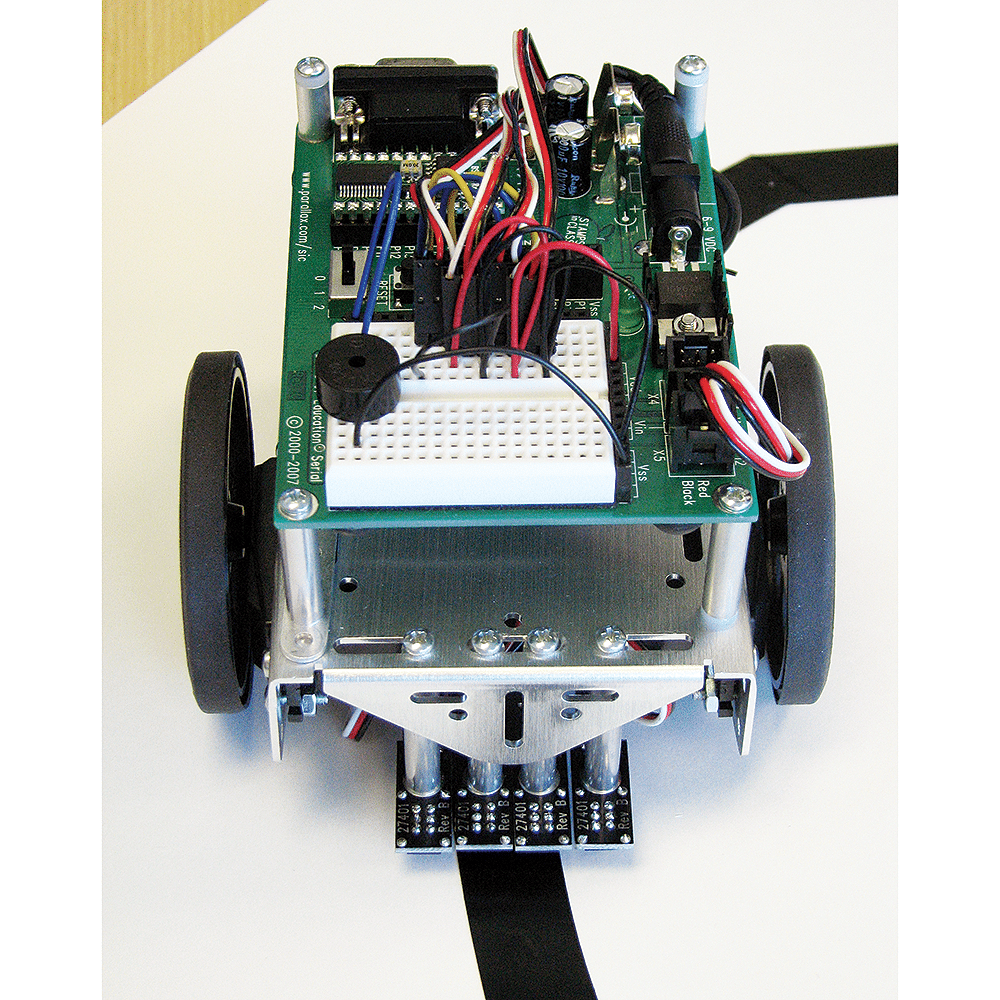

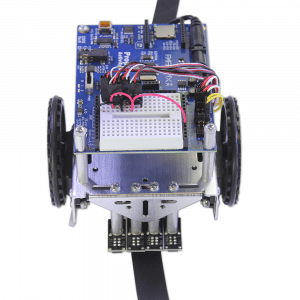

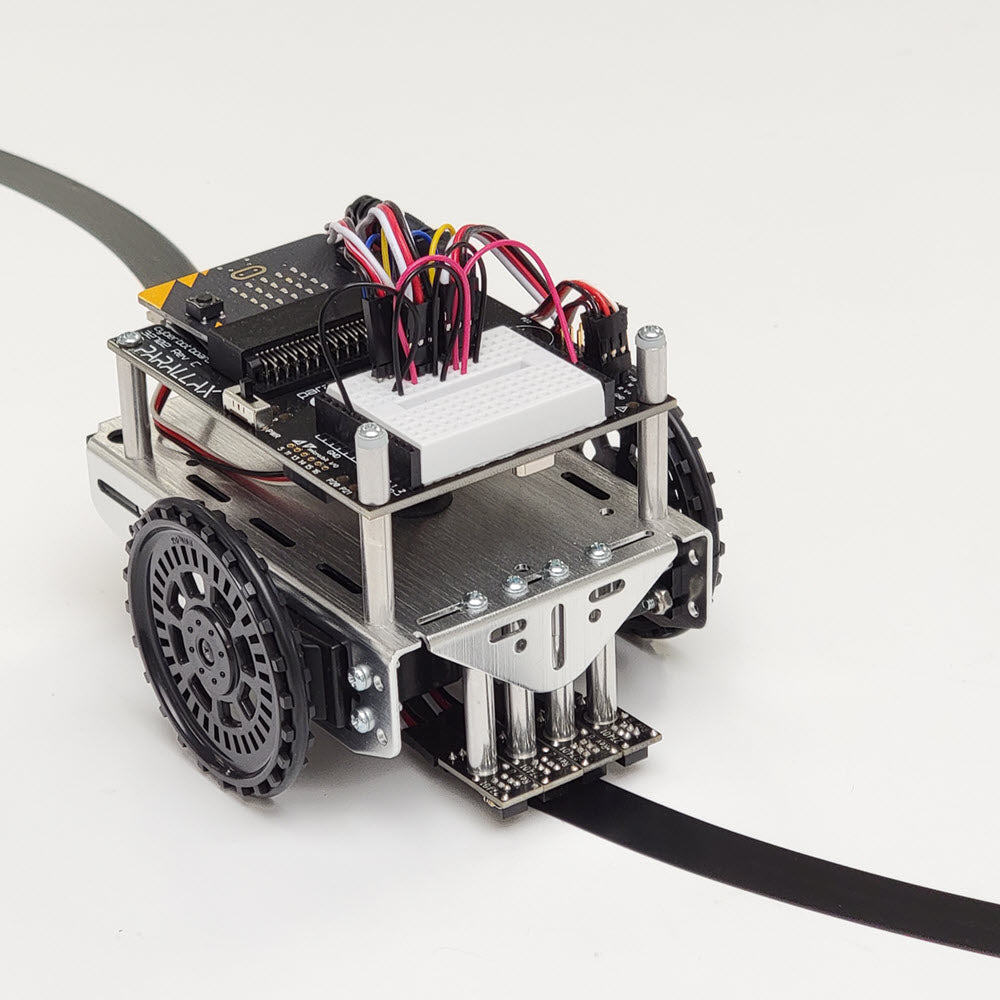

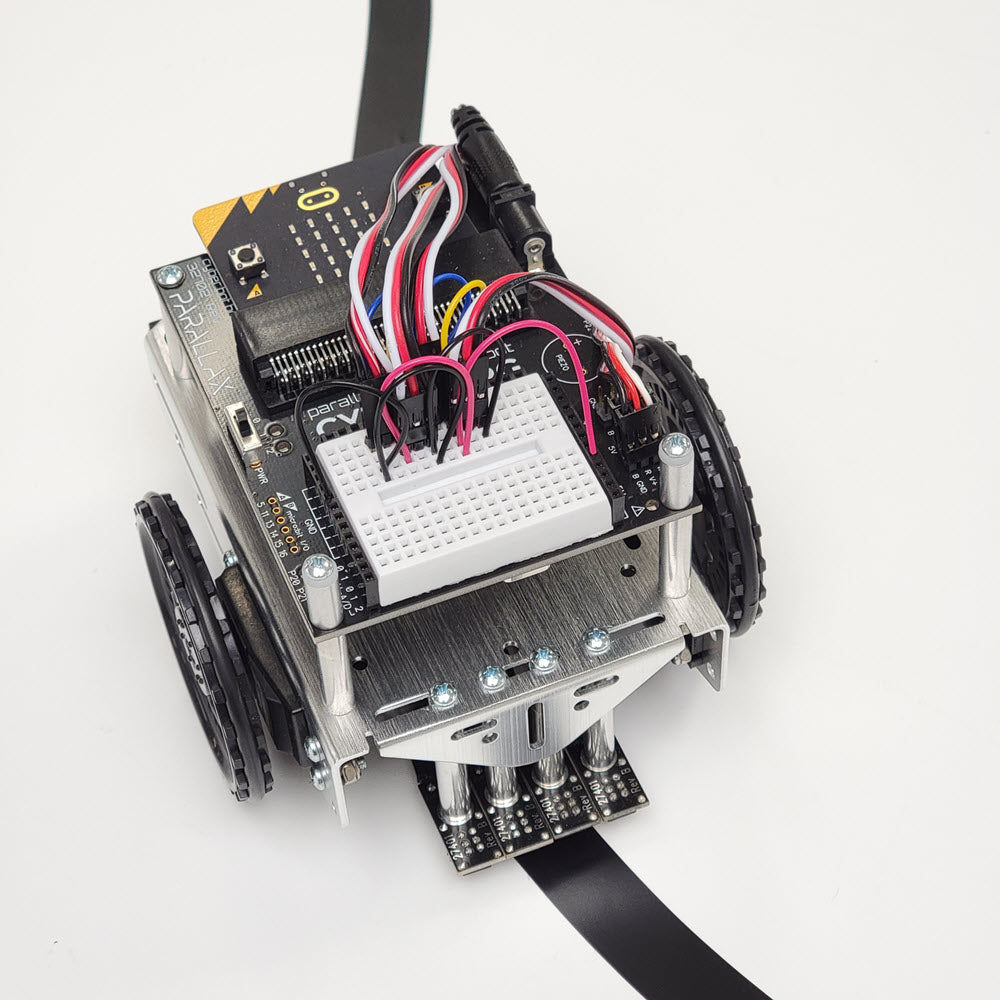

The QTI Line Follower AppKit uses an array of QTI infrared emitter/receiver modules to easily enhance the line-following capability of your Boe-Bot, ActivityBot 360°, Arduino based Shield-Bot, or micro:bit based cyber:bot robot. Mount three or four sensors underneath the chassis, and adjust the position to detect lines of different widths. Learning to use the QTI is easy with the illustrated instructions and example code for BlocklyProp, Propeller C, BASIC Stamp, Arduino, or micro:python. Just browse the Downloads tab below. This kit includes all the circuit and sensor hardware you need to add QTIs to your Parallax small robot.
Key Features:
- Designed for close proximity infrared detection
- Use as a digital sensor array to detect black lines in order to follow electrical tape courses or navigate mazes
- Use as an analog sensor to detect shades of gray
- Challenge your friends by setting up a robot line following competitions!
Note: You will need to supply your own robot, white poster board, and black electrical tape.

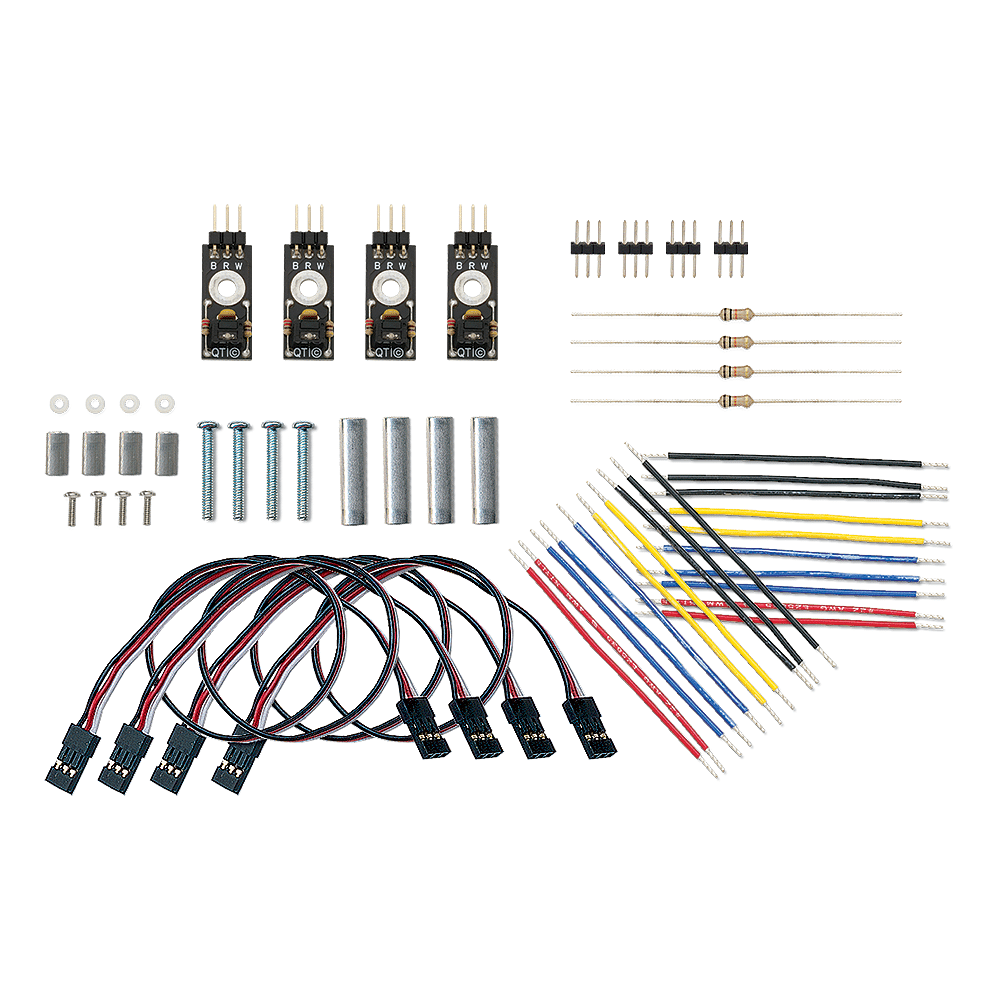

QTI Line Follower AppKit Kit Contents:
- (4) 10 k 1/4 watt resistors
- (4) 3-pin male-male headers
- (4) QTI sensor modules
- (4) 3/8" 4-40 pan-head screws
- (4) nylon washers
- (4) 1" round standoffs
- (4) 7/8 inch 4-40 pan-head screws
- (4) ½ inch round spacers
- (2) bags of 10 3" jumper wires
- (4) 12-inch servo cable extenders
Documentation, RoHS CE and UKCA Declarations of Conformity are available below and under the Downloads tab.
