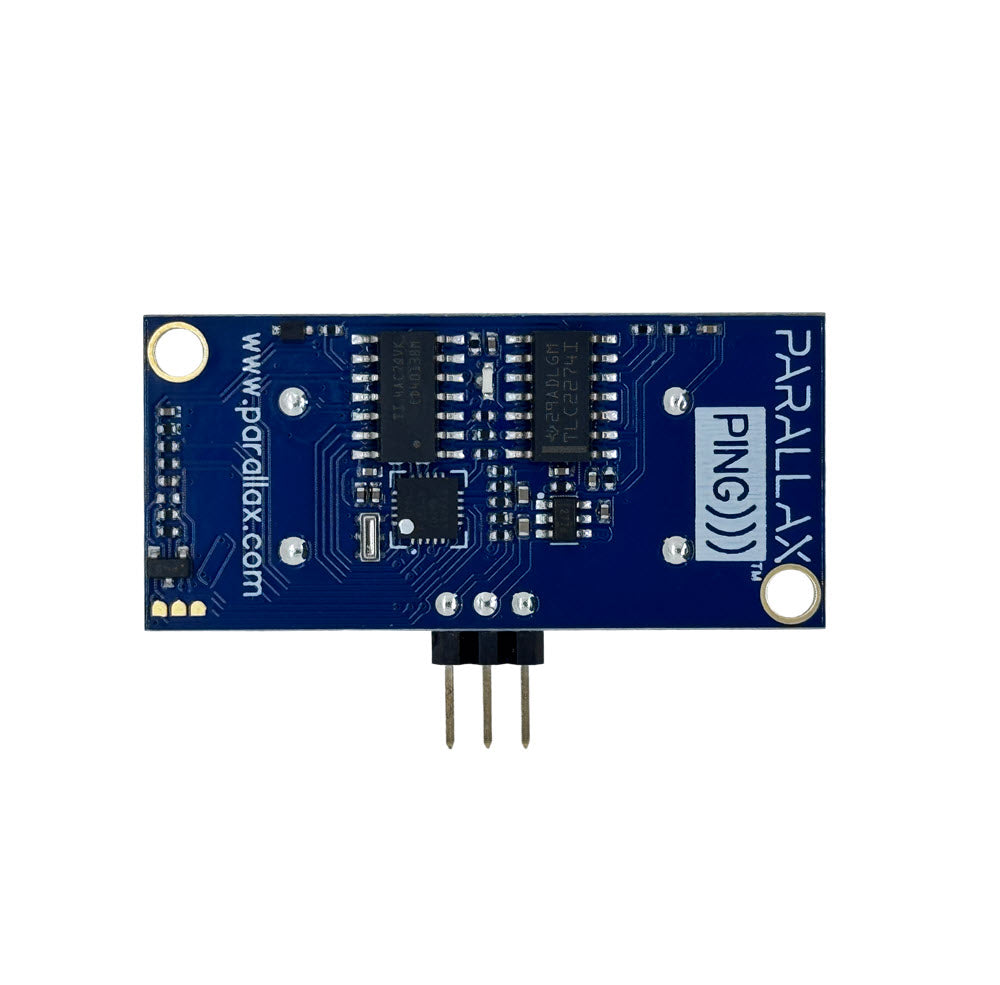

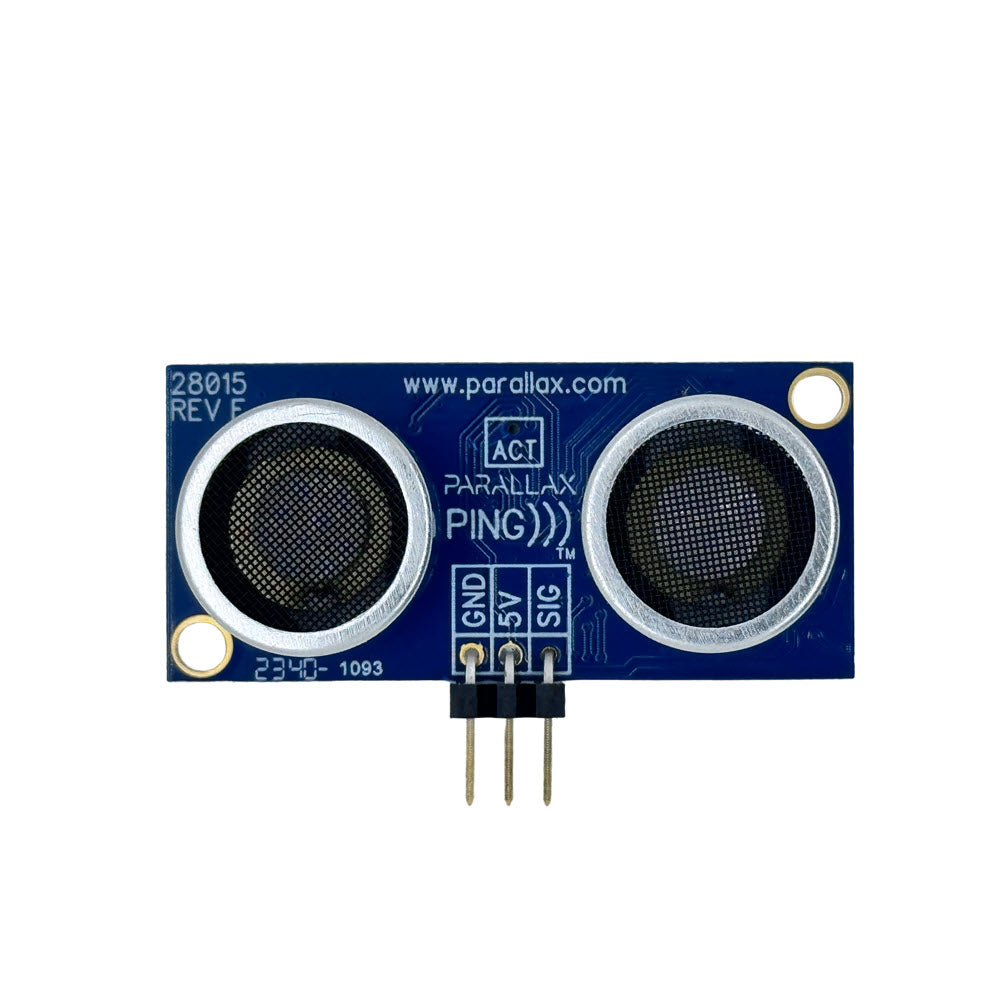

PING))) Ultrasonic Distance Sensor
Available in stock (3774)
PING))) Ultrasonic Distance Sensor Overview:
Our PING)))™ ultrasonic sensor provides an easy method of distance measurement. This sensor is perfect for any number of applications that require you to perform measurements between moving or stationary objects.
Interfacing to a microcontroller is a snap. A single I/O pin is used to trigger an ultrasonic burst (well above human hearing) and then "listen" for the echo return pulse. The sensor measures the time required for the echo return, and returns this value to the microcontroller as a variable-width pulse via the same I/O pin.
The PING))) Ultrasonic Distance Sensor is compatible with all Parallax educational robots. It is also supported by many bonus projects for BASIC Stamp, Arduino, Propeller, and micro:bit on our Learn site.
Key Features:
- Provides precise, non-contact distance measurements within a 3 cm to 3 m range
- Ultrasonic measurements work in any lighting condition, making this a good choice to supplement infrared object detectors
- Simple pulse in/pulse out or simplex UART communication requires just one I/O pin (UART communication available starting from Rev E)
- Burst indicator LED shows measurement in progress
- 3-pin header makes it easy to connect to a development board, directly or with an extension cable, no soldering required
- PCB assembled, tested, and completed in Rocklin, California
Application Ideas:
- Security systems
- Interactive animated exhibits
- Parking assistant systems
- Robotic navigation
PING))) Ultrasonic Distance Sensor Specifications:
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
